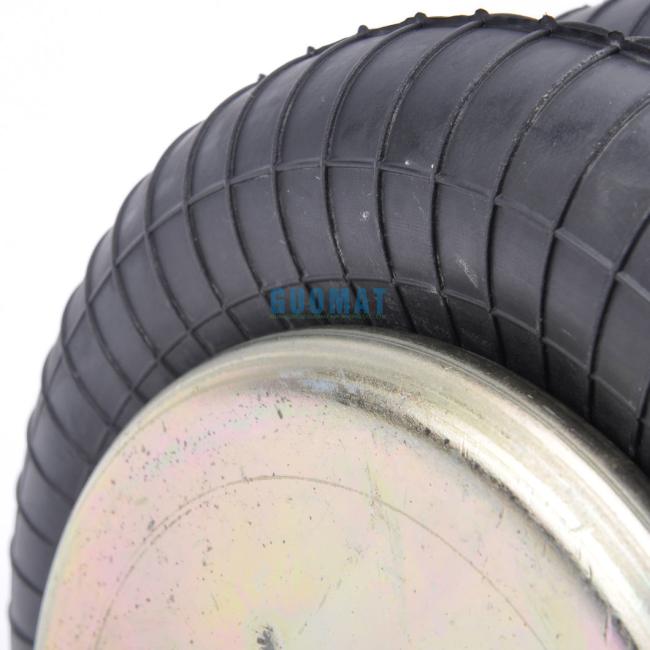

113053/2B-181 Air Actuator Airkraft Air Bag Rubber Bellows Design Height 189MM
113053/2B-181 Air Actuator Airkraft Air Bag Rubber Bellows Design Height 189MM
Product Information
|
Nut / Blind Nut Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25 Screw Center Distance of Top Cover Plate : 70 mm Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25 Screw Center Distance of Bottom Cover Plate : 70mm |
|
Gas Hole / Air inlet / Air Fitting Gas Hole / Air inlet : G3/4 |
|
Cover Plate Top Cover Plate Diameter (Width): 135 mm / 5.31 inches Bottom Cover Plate Diameter (Width): 135 mm / 5.31 inches Top Cover Plate Number: 3450 Bottom Cover Plate Number: 3436 |
|
Rubber Bellows Rubber Bellows Natural Diameter : 189 mm Rubber Bellows Natural Height : 177 mm Compressed Height: 79 mm / 3.12 inches Design Height: 178mm-203mm / 7-8 inches Maximum Diameter: 218 mm / 8.6 inches Bellows # NO.: 26 |
|
Bumper block / Buffer block Without Bumper Block |
|
Girdle Hoop / Girdle Ring With Girdle Hoop :One Pieces of Girdle Hoop |
OEM Original Equipment Manufacturers of FD120-17
| CONTITECH 603 N |
| FIRE STONE air spring FLEX 26 |
| PIRELLI 26 |
| PHOENIX 2B O7 R |
| AIRKRAFT 114050 |
| BOS CH air spring 822419042 |
| CONTITECH FD120-17 |
| 2682 030000 |
| DUNLOP (FR) SO 8201 |
| FES TO FIRE ir spring EB-215-155 |
| GOODYEAR 2B 7-540 |
| NORGREN PM/31082 (8x2) |
| PIRELLI T26 84181 |
| TAURUS KF 218 |
| WEFORMA WBZ 300-E1 |
| AIRKRAFT 113053 |
Product Applications
Industrial air springs are widely used in various fields such as paper-making machinery, vehicle detection equipment, mechanical grippers, and shaking tables. These springs effectively improve the working efficiency, safety, and service life of the equipment. In these fields, the products play an important role in damping, lifting, and supporting. They help customers save manufacturing costs and gain more economic profits.
- The products feature low cost, wide use, and easy operation. This makes them a cost-effective solution for various applications.
- They achieve a long service life and require no maintenance or lubrication. This reduces the need for frequent replacements and maintenance, saving time and resources.
- The products allow for flexible expansion and contraction, providing strong loading capacity. Their convenient design and simple structure make them easy to install and use.
- They come with no friction and a soft medium, ensuring smooth and reliable operation. This helps to reduce wear and tear on the equipment, improving its overall performance and lifespan.
Double Convoluted Air Spring Related Pictures
