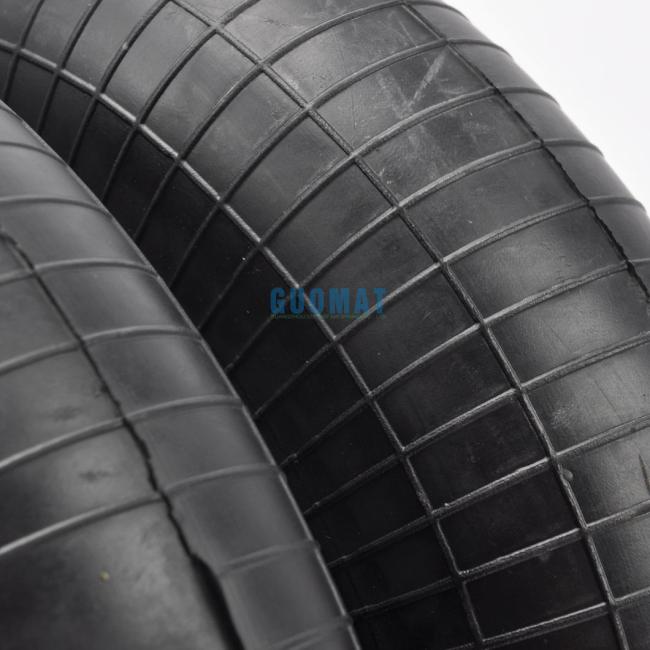

2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland SC2075 Air Bags
2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland Sc2075 Air Bags
Technical Parameters of GUOMAT 2B5330
| 1 Inch (pounds) | 7180 | 1 Inch (pounds) | 7180 |
| 3 Inch (pounds) | 6470 | 3 Inch (pounds) | 6470 |
| Maximum Stroke (pounds) | 3700 | Maximum Stroke (pounds) | 3700 |
| Equivalent High Strength Style Number | 210 | Equivalent High Strength Style Number | 210 |
| Extended Height (Similar End Closure) Style Number | 22_Ì1.5 | Extended Height (Similar End Closure) Style Number | 22_Ì1.5 |
| Material | 2-Ply Standard Cord | Material | 2-Ply Standard Cord |
| Bead plate Type | 3 | Bead plate Type | 3 |
| Blind Nut Centers (inches) | 6.2 | Blind Nut Centers (mm) | 157.48 |
| Port Offset from Blind Nut Centerline (inches) | 2.88 | Port Offset from Blind Nut Centerline (mm) | 73.152 |
| Design Height | 9.5 | Design Height | 241.3 |
| aximum Height (inches) | 10.1 | aximum Height (mm) | 256.54 |
| Maximum Stroke (inches) | 6.9 | Maximum Stroke (mm) | 175.26 |
| Minimum Usable Height (inches) | 3.2 | Minimum Usable Height (mm) | 81.28 |
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114301 | GUOMAT NO. 2B5330 | AIRKRAFT 113491 |
| Fire stone Air Spring FLEX 22 | | Fire stone Air Spring W01-358-7184 |
| Fire stone Air Spring W01 358 0226 | Fire stone Air Spring W01 358 7400 | GOODYEAR 2B12-429 |
| 95.0037 | | GOODYEAR FLEX 578-92-3-309 |
| 95.0082 | GOODYEAR FLEX 578-92-3-309 | AIRKRAFT 113492 |
| GOODYEAR 556 2 3 8210 | | Fire stone Air Spring W01-358-7185 |
| PHOENIX 2B 22R | AIRKRAFT 113490 | GOODYEAR 2B12- 318 |
| PIRELLI T22 88544 | | GOODYEAR FLEX 578-92-3-309 |
| Fire stone Air Spring: W01-358-7180/22 | Fire stone Air Spring W01-358-7180 | Watson&Chalinl : AS01541G/01881F |
| Contitech: FD 330-22 363 | GOODYEAR 2B12 425 | Vibracoustic : VSP2B22R7180 |
| Goodyear: 2B12-425/311 | GOODYEAR FLEX 578-92-3-309 | Ridewell : 1003587180C |
| Hendrickson : 1VA1816 | | Peerless : 0550 00001 |
| : 578923309 | | SAF Holland : 57007180 |
| Triangle : 6316/4363 | EI Ride : 8030190 | Kwiklok/Todco(Jifflox) |
Application of rubber air springs on lifting equipment:
Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
Other kinds of FD 330-22 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 330 22 313 | FD 330-22 313 | 161016 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 318 | FD 330-22 318 | 161270 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 327 | FD 330-22 327 | 161029 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 331 | FD 330-22 331 | 161009 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 334 | FD 330-22 334 | 161271 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 337 | FD 330-22 337 | 161272 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 343 | FD 330-22 343 | 161273 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 346 | FD 330-22 346 | 161274 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 363 | FD 330-22 363 | 161275 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 364 | FD 330-22 364 | 161276 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 365 | FD 330-22 365 | 161277 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 366 | FD 330-22 366 | 161278 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 367 | FD 330-22 367 | 161279 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 368 | FD 330-22 368 | 161280 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 465 | FD 330-22 465 | 161281 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 471 | FD 330-22 471 | 161282 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 472 | FD 330-22 472 | 161283 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 500 | FD 330-22 500 | 161284 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 540 | FD 330-22 540 | 161285 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
