Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags
Product Specification
| Cover Plate Top Cover Plate Diameter: 9 in. Screw Center Distance of Top Cover Plate: 6.2 in. Bottom Cover Plate Diameter: 9 in. Screw Center Distance of Bottom Cover Plate: 6.2 in. |
| Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC |
| Gas Hole/Air Inlet/Air Fitting Air Hole: 1/4-18 NPTF |
| Rubber Bellow Rubber Bellow Dia: 13.5 in. Minimum Height: 3.5 in. Maximum Height: 14.3 in. |
OEM Reference
- GUOMAT NO. 2B12345
- Air Spring 7545 AS-0087-1F 4514
- Goodyear#: 2B12-345; 2B12 345; 2B12345
- Corrugation type: double
- Automann Bellow#: SP2B22RB
- Fire stone Air Spring Bellow#: 228C-1.5 is 228-1.5
- Goodyear Bellow#:578-92-3-315;578 92 3 315;578923315
- Contitech Bellow#: FD 331-26;FD 331 26;FD 33126
| Manufacturer Cross OEM Reference | Other Cross OEM Reference |
| Fire stone Air Spring : W01-358-7545 / W01 358 7545 / W013587545 | Triangle Part Number:4514 |
| Fire stone Air Spring Bellows Number:228-1.5 / 228C-1.5 | Triangle Bellows Number:6375 |
| Fire stone Air Spring Top Plate Number:3271 | Hendrickson Auxiliary : 001796 |
| Fire stone Air Spring Piston Number:3183 | (Paralift Ultra/High Lift) - Lift bag |
| Contitech : FD 331-26 514 | Watson&Chalin : AS-0087-1F / AS-0109 |
| Contitech Bellows#: FD 331-26, 64284 | |
| Goodyear : 2B12-345 / 2B12 345 / 2B12345 | |
| GoodYear Bellows#: 578-92-3-315 / 578 92 3 315 / 578923315 |
Air Spring Characteristics
- Our industrial air springs boast cost-effectiveness, versatility, and user-friendly operation, making them the preferred choice for a wide range of applications.
- These springs offer an extended service life, eliminating the need for regular maintenance and lubrication, thus reducing downtime and associated costs.
- Engineered for flexibility and durability, our air springs are designed with a strong loading capacity, ease of installation, and a straightforward structure that simplifies maintenance.
- Featuring a frictionless and cushioning medium, our air springs provide smooth operation and enhanced performance, ensuring a comfortable and efficient working environment.

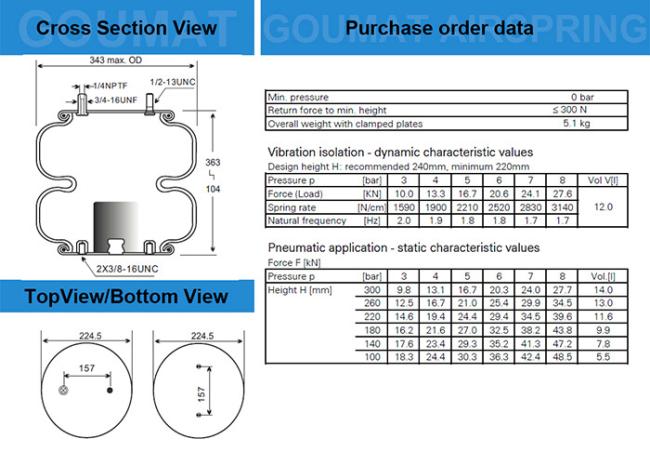

The Drawing And Data of GUOMAT 2B12345 Air Spring
