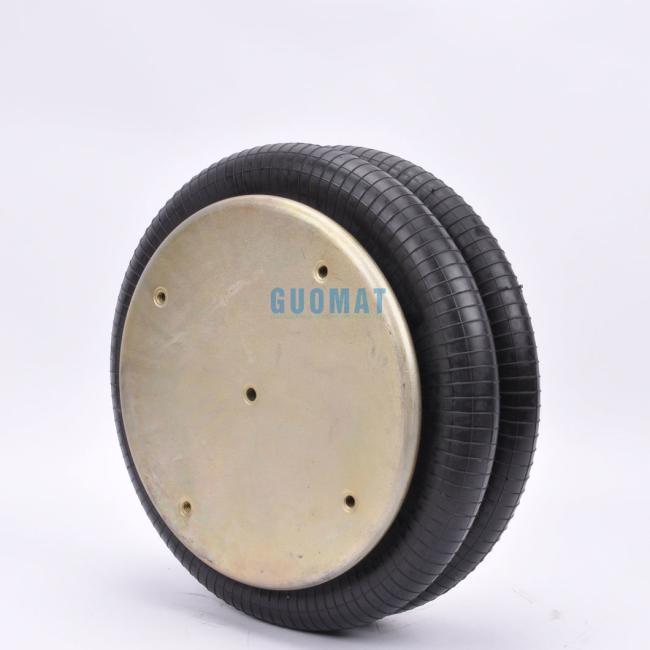

FIRESTONE Air Spring W013587135 Air Spring Bellows 21T2 GOODYEAR 2B14-360 Flex 556228554
FIRESTONE Air Spring W013587135 Air Spring Bellows 21T2 GOODYEAR 2B14-360 Flex 556228554
2B7135 OEM Original Equipment Manufacturer:
GUOMAT NO.:2B53022
Contitech No:FD530-22 311
Contitech No:FD530 22 311
Firestone Air Spring:21T2 W01-358-7135
Firestone Air Spring:21T2 W01 358 7135
Firestone Air Spring:21T2 W013587135
GOODYEAR:2B14-360
GOODYEAR:2B14360
GOODYEAR:2B14 360
GOODYEAR::556 22 8 554
GOODYEAR::556-22-8-554
GOODYEAR::556228554
Technical Parameters of 2B7135
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.75
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.75
Screw Center Distance of Bottom Cover Plate : 159 mm
Gas Hole / Air inlet / Air Fitting

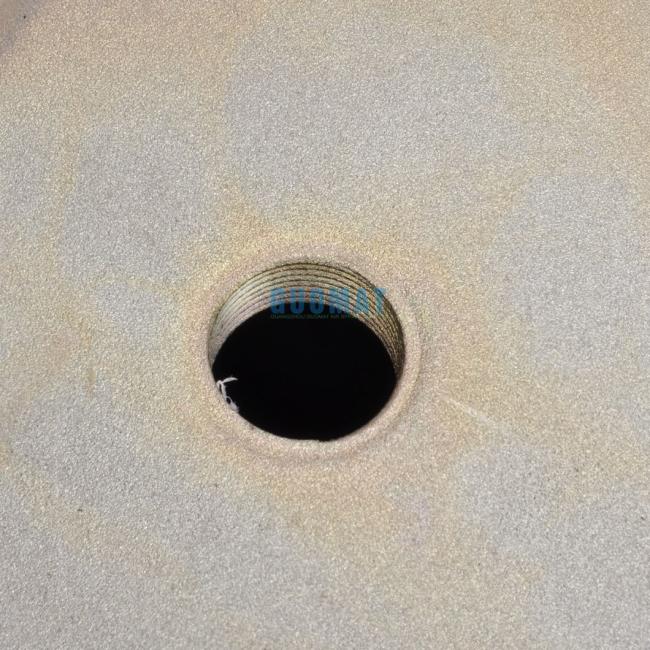

Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud
Cover Plate
Top Cover Plate Diameter (Width): 315 mm
Bottom Cover Plate Diameter (Width): 315 mm

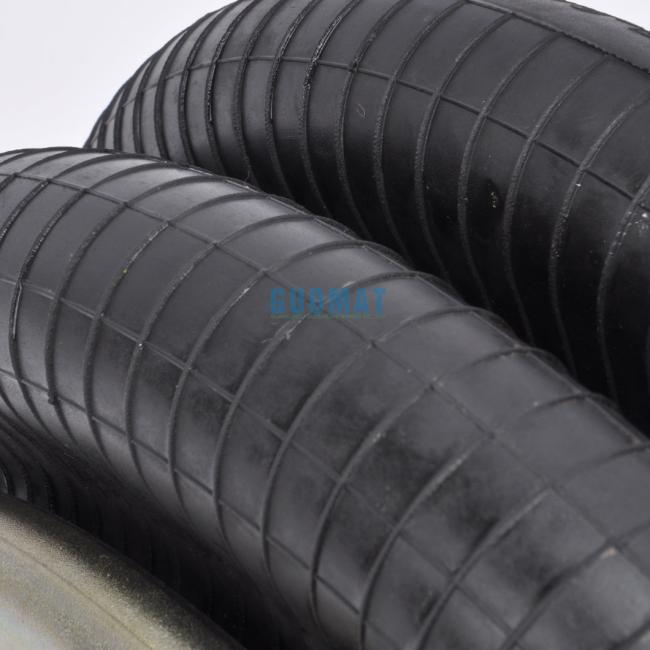

Rubber Bellows
Rubber Bellows MAX Diameter : 395 mm
Maximum Height: 300 mm
Working Stroke : 90 mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Type
Order No.
Rubber bellows only
60406
with crimped plates, G1/4 air inlet
A = 79.4 mm excentrical
61362
with crimped plates, G3/4 air inlet
A = 79.4 mm excentrical
66512
with crimped plates, G1 air inlet
A = 79.4 mm excentrical
2682075000
Overall weight 6.9 kg
|
Vibration isolation - dynamic characteristic values Design height H: recommended 250mm, minimum 225mm |
|||||||
|
Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
|
Force (Load) [kN] |
15.2 |
20.7 |
25.8 |
31.5 |
36.8 |
42 |
|
|
Spring rate [N/mm] |
222.5 |
286 |
349.5 |
413 |
476.5 |
540 |
19
|
|
Natural frequency [Hz] |
1.9 |
1.8 |
1.8 |
1.8 |
1.8 |
1.7 |
|
|
Pneumatic application - static characteristic values Force F [kN] |
||||||||
|
Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V [l] |
|
|
Height H [mm] |
260 |
14.1 |
19.3 |
24.1 |
29.5 |
34.5 |
39.4 |
20 |
|
220 |
18.2 |
24.4 |
30.5 |
37 |
43.2 |
49.1 |
17 |
|
|
180 |
21 |
28.2 |
35.3 |
42.6 |
49.7 |
56.8 |
14 |
|
|
140 |
23.1 |
31 |
38.7 |
46.5 |
54.3 |
61.9 |
11 |
|
|
100 |
24.4 |
32.3 |
40.4 |
48.7 |
56.8 |
64.7 |
7.2 |
|
