Contitech Rubber Air Spring FD200-25 Cross Firestone W013586951 Suspension Systems

Price Negotiable
Price: Negotiable
MOQ: 5
Delivery Time: 5-8 Working Days
Brand: GUOMAT
Product Description

Contitech Rubber Air Spring FD200-25 Cross Firestone W013586951 Suspension Systems




Air Spring Information

Cover Plate
Top Cover Plate Diameter: 161 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 161 mm
Screw Center Distance of Bottom Cover Plate: 89 mm
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×M8
Bottom Cover Plate Screw(Nut) Tooth: 2×M8
Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 1/4

Rubber Bellow
Rubber Bellow Dia: 260 mm
Min. Height: 77 mm
Max. Height: 325 mm
Total Storke: 248 mm



Alternative Items

  • Goodyear Trimmed: 2B9253
  • Conti Tech: FD200-25427 / FD 200-25 427
  • FIRE STONE Air Spring W01-358-6951/ 20-2
  • Goodyear 2B9-253
  • Goodyear Flexmember: 578-92-3-206 / 578923206 / 578 92 3 206
  • Triangle Spring: 4427 / 6332
  • Firestone: 6945
  • Contitech: 64550
  • Batco: 10-96945
  • UCF / Impex: AB-2B9-253
  • T.W. Distribution: AB6945
  • Dallas Spring: AS6945
  • Midland / Haldex: CS209253
  • Euclid/Meritor Aftermarket: E-FS6945
  • Euclid/Meritor Aftermarket: FS6945
  • Leland: SC2125
  • Watson&Chalin : AS0119F / AS01451G



Air Spring Characters

2B6951 air springs provide users with an unparalleled suspension experience with their unique features:

  1. Comfort: Provides excellent ride comfort and effectively absorbs road vibrations
  2. Height adjustment: Allows users to adjust the vehicle height as needed to adapt to different driving conditions
  3. Load adaptability: Automatically adjusts to different loads to maintain vehicle stability
  4. Durability: Made of high-quality materials to ensure long-term durability and reliability



FAQ

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
     (2) Recheck the products before shipment to ensure our packaging in good condition.
     (3) Track and receive feedback from our customers.
Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.
Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

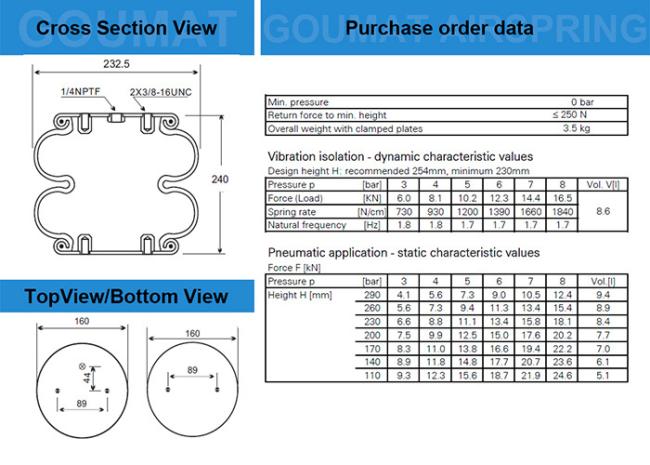

The Drawing And Data of GUOMAT 2B6951 Air Spring

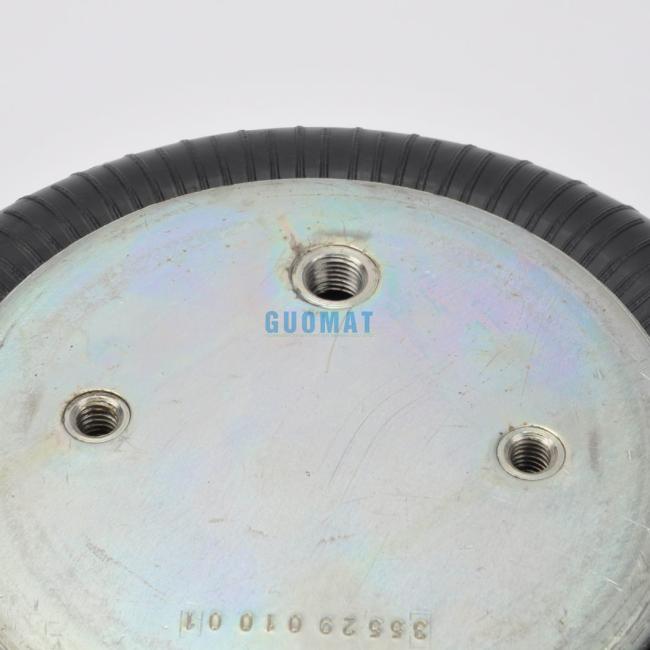

Contitech Air Spring Fd200-25 Fire Stone Double Convoluted Air Bag W013586951 Industrial Air Springs

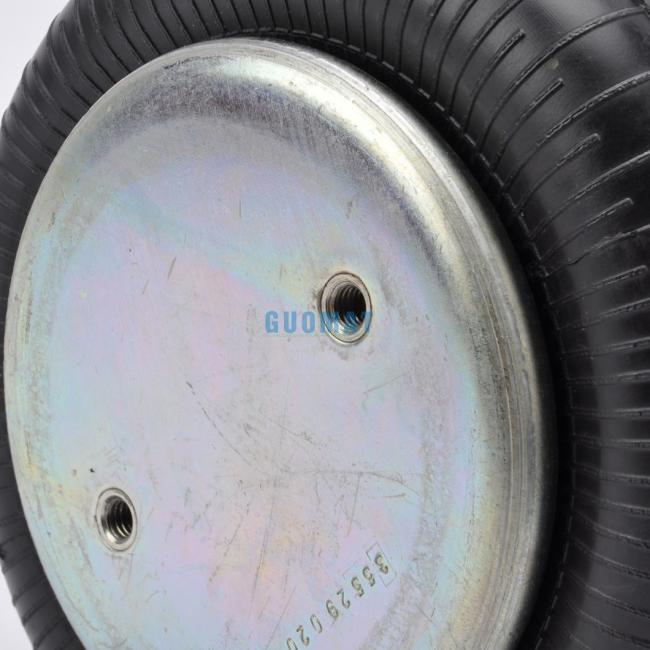

Contitech Air Spring Fd200-25 Fire Stone Double Convoluted Air Bag W013586951 Industrial Air Springs

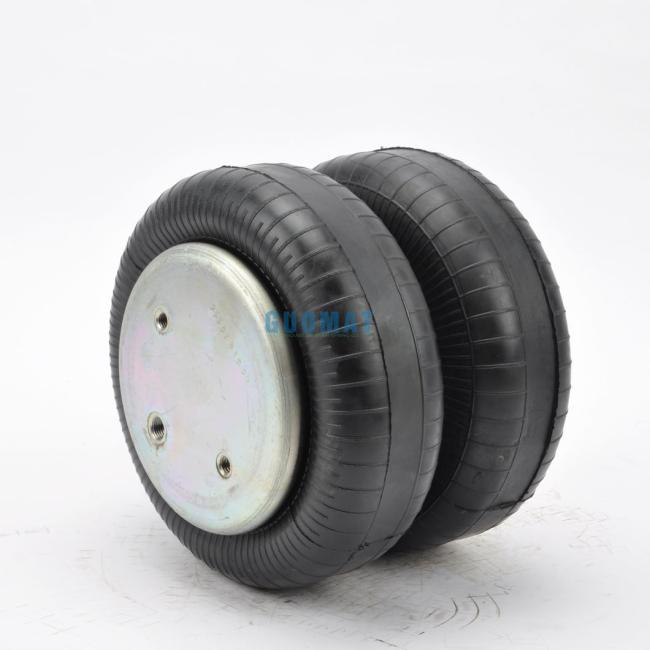

Contitech Air Spring Fd200-25 Fire Stone Double Convoluted Air Bag W013586951 Industrial Air Springs
Contitech Air Spring Fd200-25 Fire Stone Double Convoluted Air Bag W013586951 Industrial Air Springs
