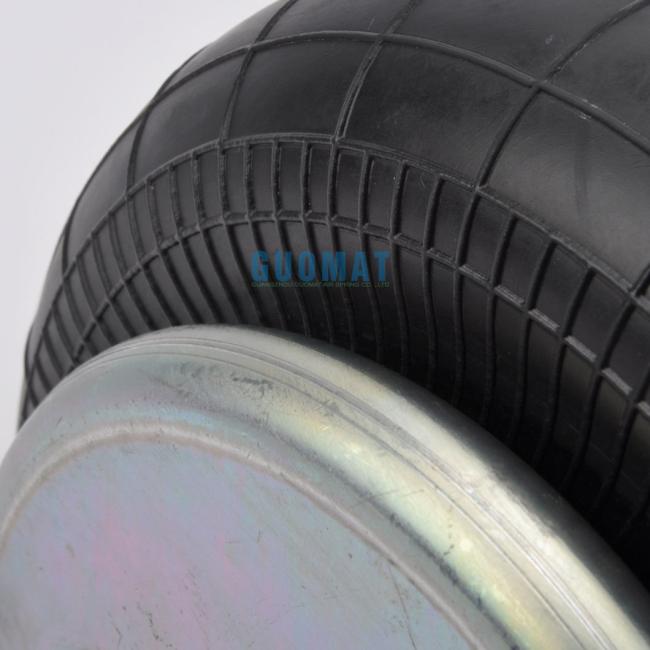

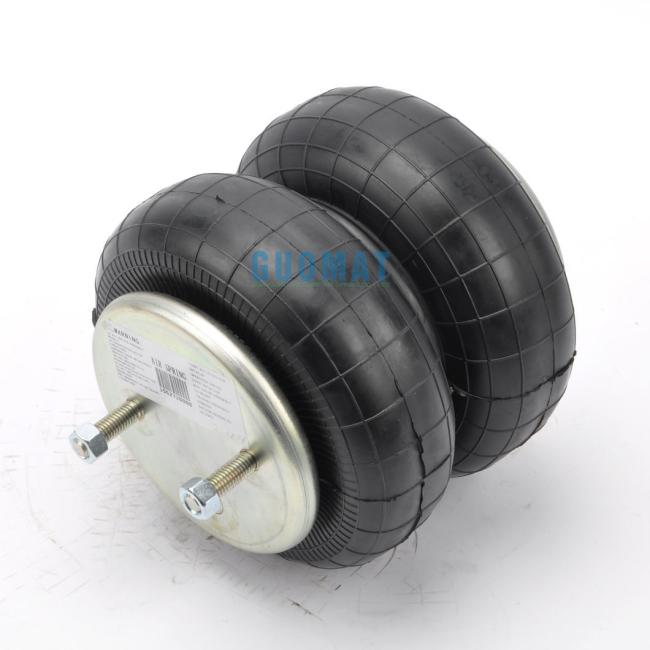

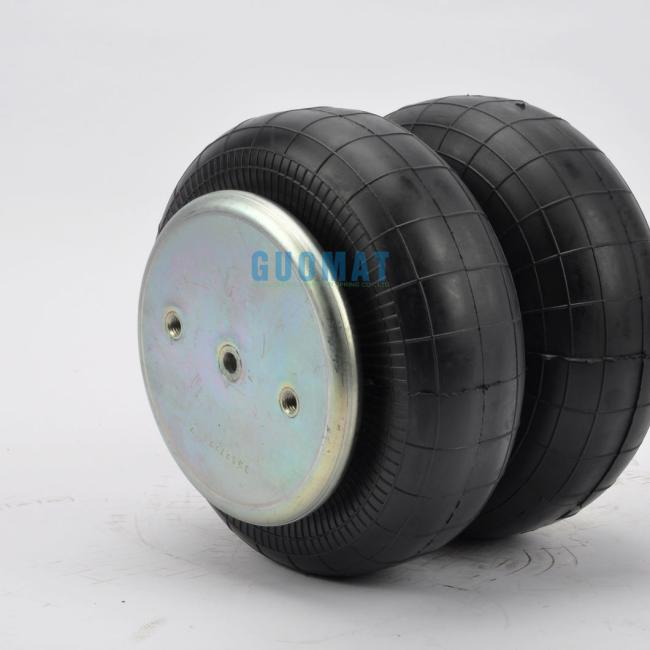

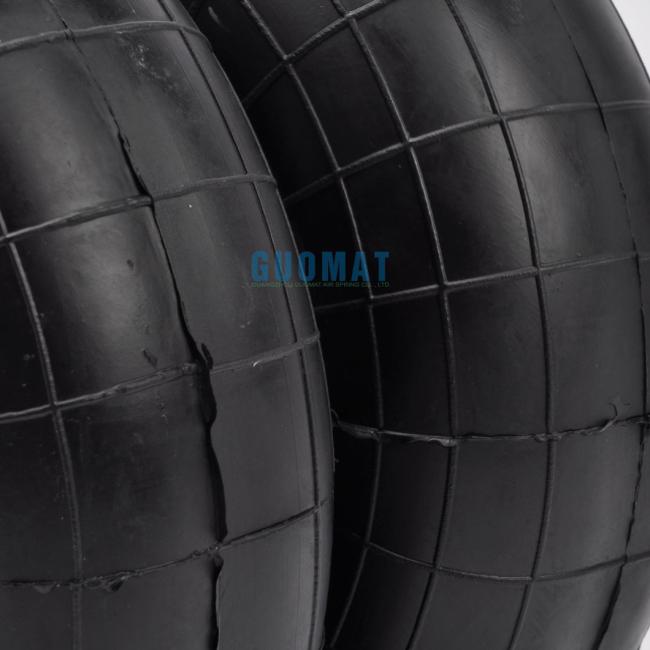

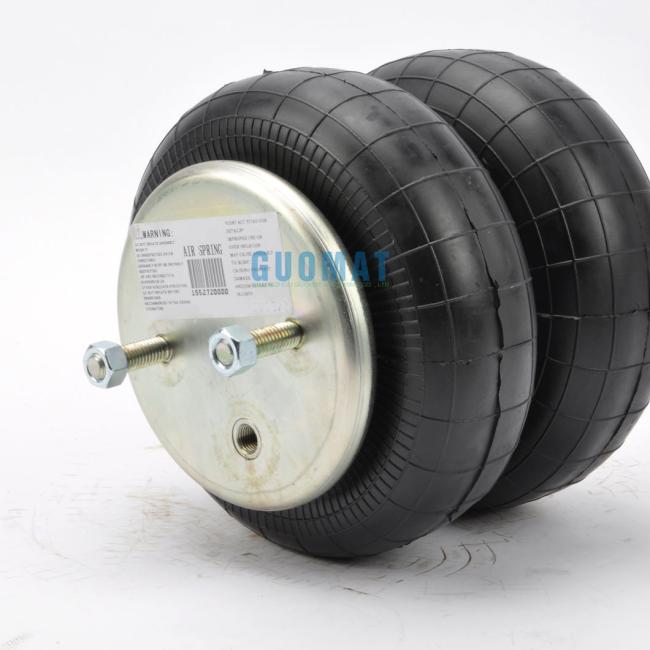

W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson
W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson
Product Information
Air bag is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases,the air spring can support more load while the spring rate increases.The larger the air spring,the greater the maximum loat it can support.
| Product Name | Air Suspension Kit |
| Working Temperature | -40ºC bis +70ºC |
|
Refer Numbers |
Firestone:W01-358-6905 |
| Contitech:FD200-19 315 | |
| Goodyear:2B9-206 | |
| Taurus:KF218-6905 | |
| Hendrickson:S3518/S5270 | |
| Ridewell:1003586905C | |
| EZ Ride:8030120 | |
| Watson&Chalin:AS-0020 | |
| Failure Testing | ≥3 millions |
|
Technical data |
Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Gas Hole / Air inlet:1/4NPTF | |
| Rubber Bellows MAX Diameter:251.5mm | |
| The Working Stroke:MAX 274 mm to MIN 95 mm | |
| Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw Center Distance of Top Cover Plate:89mm | |
| Screw Center Distance of Bottom Cover Plate:89mm | |
| Screw And Gas Hole Distance of Top Cover Plate:44.5mm | |
|
Notice |
These air suspension bags are aftermarket ones.They will replace the original air spring bags. --Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. --Instruction isn't included.Professional installation is recommended. --Contact us please for whatever we can help |
Features
* Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
* Built to strict quality control standards.
* Designed for Comfort Suspension.
* Bring better handling and ride comfort.
More Recommend Products
W01-681-9091 W01-095-0087 W01-358-7725 W01-358-9083 W01-681-9098
W01-095-0118 W01-358-7731 W01-358-9084 W01-681-9242 W01-095-0189 W01-358-7781 W01-358-9089 W01-968-6286 W01-095-0190 W01-358-7788 W01-358-9092 W01-F79-7349
W01-095-0191 W01-358-7795 W01-358-9093 W01-M58-0736 W01-095-0195 W01-358-7808 W01-358-9096 W01-M58-0749 W01-095-0197 W01-358-7892 W01-358-9101 W01-M58-0756
W01-095-0198 W01-358-7897 W01-358-9104 W01-M58-0775 W01-095-0204 W01-358-7994 W01-358-9105 W01-M58-0776 W01-095-0205
Advantages
1.Excellent materials
2.Effective shock
3.In situ installation
4.Comfortable and stable
5.Long life
6.Slove the abnormal noise
