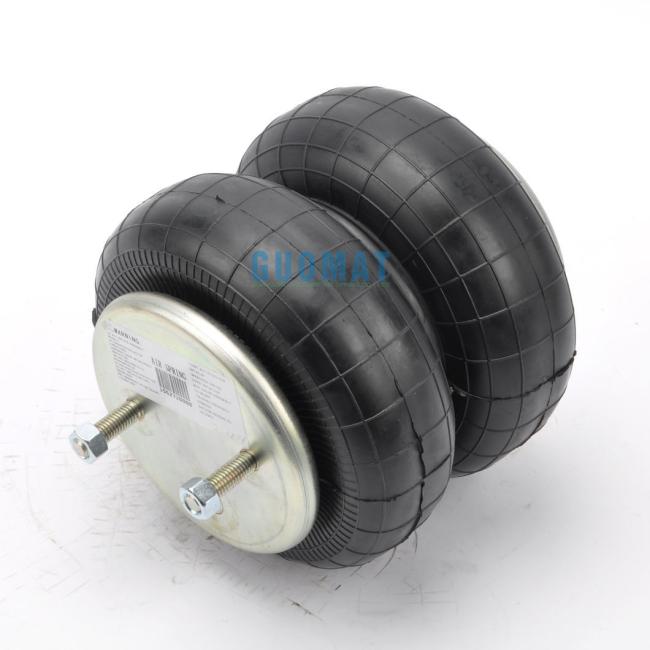

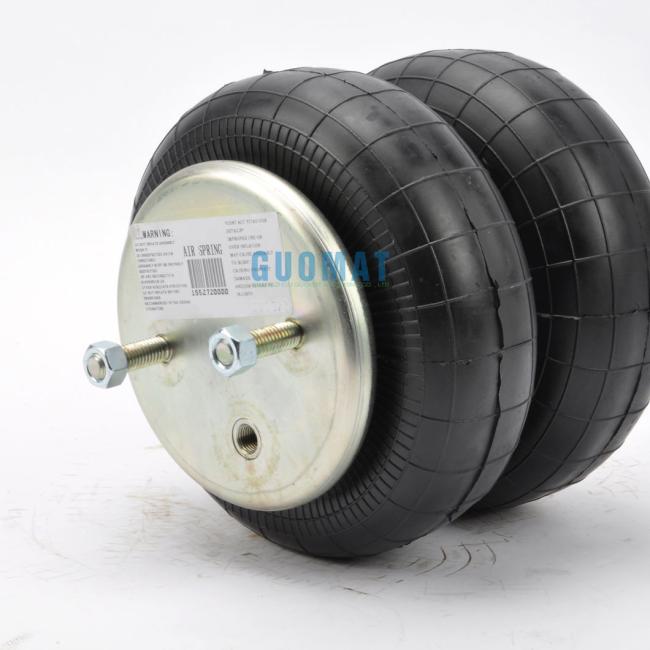

FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
Price:
USD59.9-69.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
FD 200-19 362 Contitech Air Rubber Bellow 2B9-210 Goodyear Air Ride Spring Bags
Product Description
Refer No.
| Contitech | FD 200-19 362/161294 |
| Firestone | W01-358-6908 |
| Firestone Style | 20 |
| Goodyear | 2B9-210/578923206 |
| Watson&Chalin | AS-0035 |
| Triangle | 6325/4362 |
| Ridewell | 1003586908C |
| FleePride | AS6908 |
| Taurus | 6325 |
| Loadguard | SC2766 |
| TRP | AS69080 |
| Automann | SP2B12R-6908 |
| Warren | 8030120 |
| Part Number | 2B 6908 |
| OEM Number | FD 200-19 362 |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
| Top Cover Plate Diameter | 160mm |
| Bottom Cover Plate Diameter | 160mm |
| Gas Hole / Air inlet | 1/4NPTF |
| Rubber Bellows MAX Diameter | 251mm |
| The Working Stroke | MAX 274 mm to MIN 81 mm |
| Screw Center Distance of Top Cover Plate | 89mm |
| Screw Center Distance of Bottom Cover Plate | 89mm |
| Screw and Air inlet Distance of Top Cover Plate | 44.5mm |
FD 200-19 362 Contitech Air Spring Technical Data
Plate Diameter: Ø6.31
Stud: 2X1/2-13UNC
Air Fitting: 1/4-18NPTF
Distance Between Studs: 3.50
Distance Between Stud and Air Hole: 1.75
Stud on Bottom Plate: 2X3/8-16 UNC
Max.Height: 10.40
Min.Height: 3.00
Stud Height: 1.60
The Rubber Bellows Max.Diameter: Ø9.80
Weight: 6.5lb
Style: Double Bellows
1/2-13UNC: max.35 lbf ft
1/4-18NPTF: max.22 lbf ft
3/8-16UNC: max.20 lbf ft
Air springs offer significant performance advantages:
- High comfort and can be installed in tight spaces
- Lightweight design improves fuel economy and payload
- Stability over an extended operating temperature range
