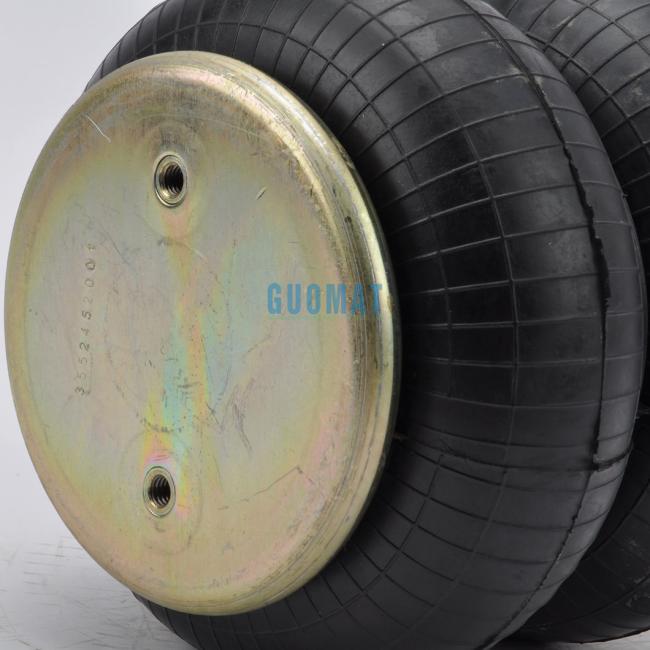

Best Warranty Firestone W01-358-6926 Industrial Air Spring Convoluted Air Actuator
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Best Warranty Firestone W01-358-6926 Industrial Air Spring Convoluted Air Actuator
Product Introduction
| Product Name | W01-358-6926 Air Suspension Airbag |
| Working Temperature | -40ºC bis +70ºC |
| Failure Testing | ≥3 millions |
|
Technical data |
Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Gas Hole / Air inlet:1/4NPTF | |
| Rubber Bellows Diameter:224mm(MAX.251mm) | |
| The Working Stroke:MAX 274mm to MIN 95 mm | |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw and Air Hole Distance of Top Cover Plate:38mm | |
| Screw Center Distance of Top Cover Plate:89mm | |
| Screw Center Distance of Bottom Cover Plate:89mm | |
|
Notice |
These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn't included.Professional installation is recommended. -Contact us please for whatever we can help |
OEM Number
Fire-stone:W01-358-6926,W013586926
Contitech:FD 200-19 504,161299
Triangle : 6325/4504
Original Parts
RR Load : LS20
Product Applications
- Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
- Press equipment and part extraction, where air springs are used as actuators.
- Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
- Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
- Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
- Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
- Cheese and dairy industry machines
Six Reasons to Choose Us
| 1.Hight stability |
| 2.In situ installation |
| 3.Ride comfort |
| 4.Safe and durable |
| 5.Effective shock absorption |
| 6.Reduce the sound |
