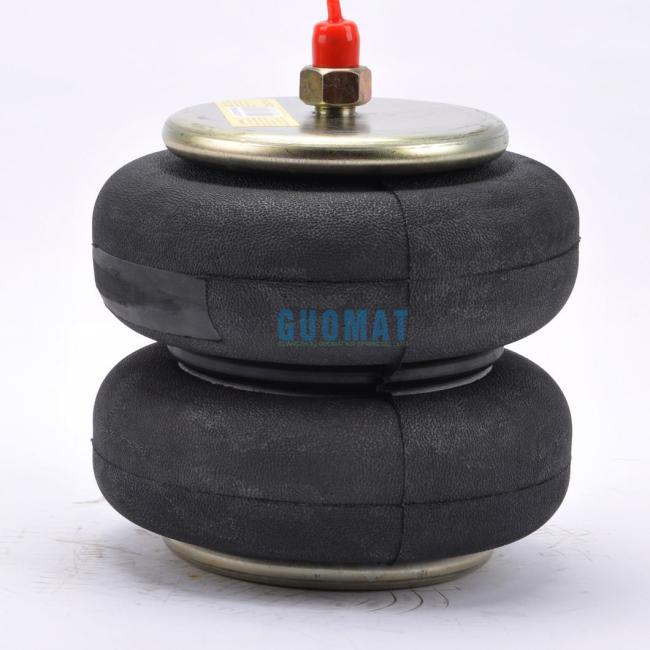

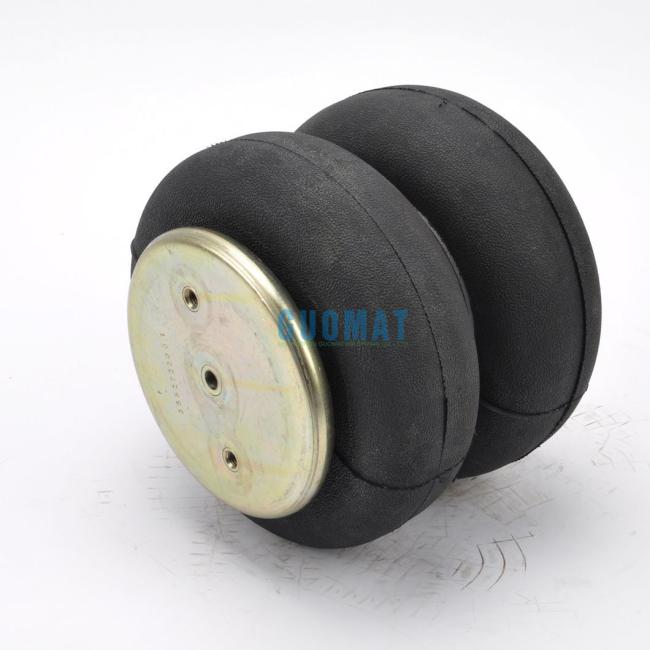

New Style Rubber Air Spring Air Suspension W01-358-6927/FD200-25453/ 2B9-218
New Style Rubber Air Spring Air Suspension W01-358-6927/FD200-25453/ 2B9-218
| Item | Value |
| OEM.NO. | W01-358-6927 |
| Type | Air Spring |
| Warranty | 12 Months |
| Truck Model | Heavy Duty Truck |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts |
| Application | Auto Suspension Systems |
Cross Number
Firestone
Firestone Style 20-2
W01-358-6927 / WO1-358-6927
W01 358 6927 / WO1 358 6927
W013586927 / WO13586927
Contitech
FD 200-25 453
FD200-25 453
FD200-25453
161336
Goodyear
2B9-218
2B9 218
2B9218
578923206
578 92 3 206
578-92-3-206
578923202
578 92 3 202
578-92-3-202
Triangle
6332/4453
AS-4453
FleetPride
AS6927
Taurus
6332
Automann
SP2B12RA-6927
Original Number
Reyco
12906-01
Leland
Sc2072
SAF Holland
57006927
Tuthill Technology
1290601
Loadguard
SC2072
Navistar/Fleetrite
1685176C1
Taurus
AS218-6927
Technical Details
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Gas Hole / Air inlet:1/4NPT
Rubber Bellows MAX Diameter:262mm
The Working Stroke:MAX 325 mm to MIN 81 mm

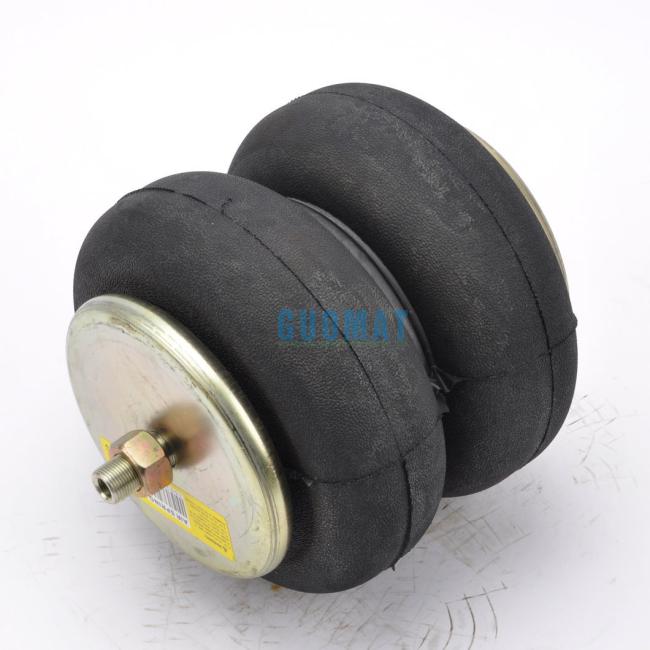

Top Cover Plate Screw (Nut) Tooth With Air Inlet:3/4-16UNF

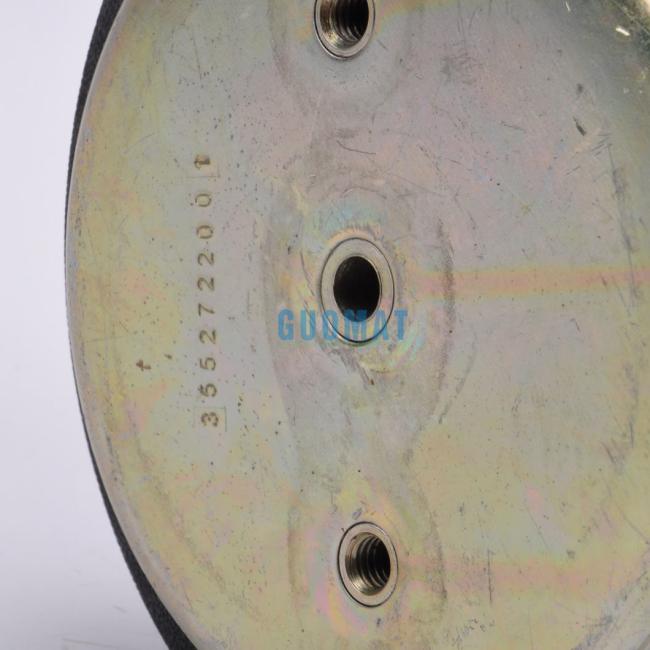

Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate:89mm
|
Weight: 6.9Ib |
|
1/4-18 NPTF: max.22 lbf ft |
|
3/4-16 UNF: max. 50 lbf ft |
|
3/8-16UNC: max. 20 lbf ft |
How to Install Air Springs For Large Dryers
- Preparation: Make sure you have the correct tools and equipment, and read and understand the relevant installation instructions and operating manuals before installation.
- Determine the installation location: Choose an appropriate location to install the air spring. Make sure the location has enough space and can withstand the weight and vibration of the dryer.
- Install the bracket: Install the bracket to support the weight of the dryer according to the design and installation requirements of the dryer. Make sure the bracket is firm and reliable and can withstand the load of the dryer.
- Install the air spring: According to the installation instructions of the dryer, properly install the air spring on the bracket. Make sure the air spring is firmly connected to the dryer and can provide proper support and cushioning.
- Connect the air source: Connect the air source to the air spring. Make sure the connection is correct and the air source can provide enough air pressure to support the weight of the dryer.
- Test and adjust: After the installation is completed, test to ensure that the air spring is working properly and can provide proper support. Make adjustments as needed to ensure the balance and stability of the dryer.
|
1. Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2,then we will make a PI for you to confirm the order details; Step 3,when we confirmed everything ,you can arrange the payment; Step 4,finally we deliver the goods within the stipulated time.
|
|
2. Q: When will make delivery ? A: Delivery time is 2-8woring days.
|
|
3. After-sales service 1 year warranty for all kinds of products; If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service. |
|
4. Payment T/T,Western Union,L/C
|
|
5. Transportation Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
|
