FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole
FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole
Product Information
| Top Cover Plate Diameter | 90 mm |
| Screw Center Distance of Top Cover Plate | 20 mm |
| Bottom Cover Plate Diameter | 90 mm |
| Screw Center Distance of Bottom Cover Plate | 20 mm |
| Top Cover Plate Screw(Nut) Tooth | M8×15 |
| Bottom Cover Plate Screw(Nut) Tooth | M8×15 |
| Gas Hole | G 1/8 |
| Rubber Bellow Dia | 145 mm |
| Min. Height | 70 mm |
| Max. Height | 170 mm |
| Total Storke |
100 mm |
Vibration Isolation-Dynamic Characteristic Values
| Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | VoI.[I] |
| Height H(mm) | 160 | 1.1 | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 1.2 |
| 140 | 1.6 | 2.2 | 2.8 | 3.3 | 3.9 | 4.5 | 1.1 | |
| 120 | 2.0 | 2.7 | 3.4 | 4.1 | 4.8 | 5.5 | 0.9 | |
| 100 | 2.3 | 3.1 | 4.0 | 4.8 | 5.6 | 6.4 | 0.7 | |
| 80 | 2.6 | 3.5 | 4.5 | 5.4 | 6.3 | 7.1 | 0.6 |
Double Convoluted Type Air Spring Other OEM Number
| FD 40-10 CI | FD 70-13 CI |
| FD 110-15 CI | FD 120-17 CI |
| FD 120-20 CI | FD 200-19 CI |
| FD 200-22 CI | FD 200-25 CI |
| FD 330-22 CI | FD 330-30 CI |
| FD 530-22 CI | FD 530-22 CI |
| FD 530-30 CI | FD 530-35 CI |
| FD 960-22 CI | FD 1330-25 CI |
Support and Services
Buy Norgren 2B4010 at the best prices and delivery conditions at suspensionairspring.com, which is a factory that has been engaged in the production of air springs for 18 years. We offer a large list of industrial automation products. We deliver our products to every country with the shortest deadlines. Buy original products of many brands from the GUOMAT company with guaranteed quality. We always answer customer queries quickly. With us, you will be able to get rid of cooperation with many suppliers, which greatly speeds up and facilitates your work.
FAQ
|
Q: How to order ?
Q: When will make delivery ?
Q: After-sales service?
Q: What's your transportation? |

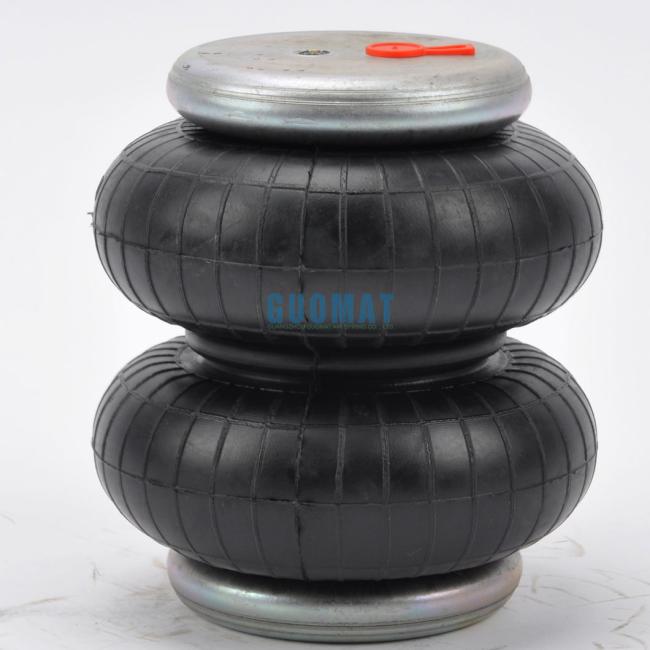

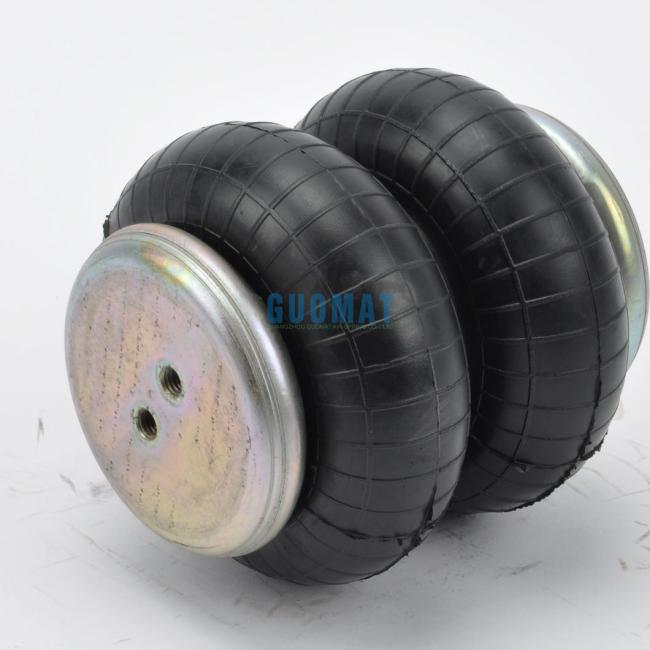

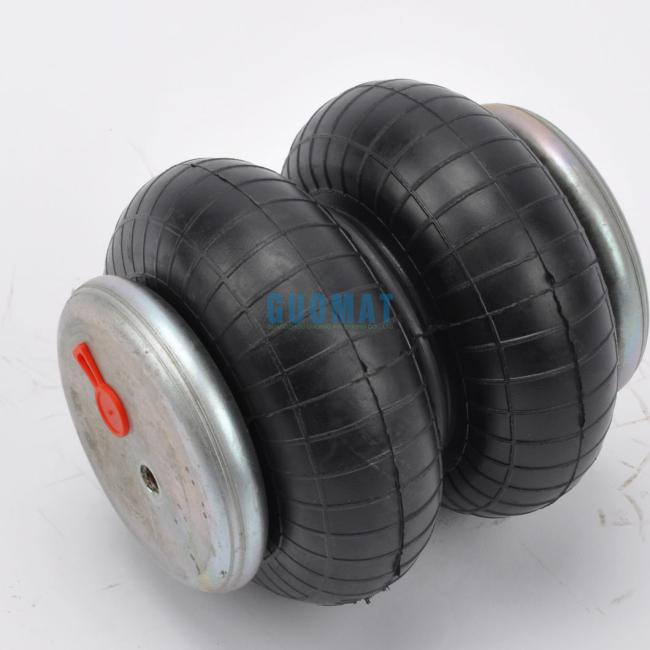

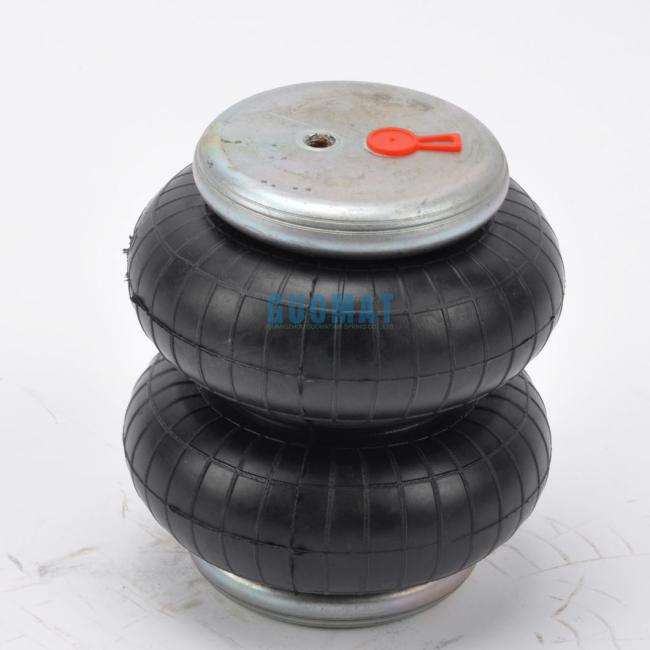

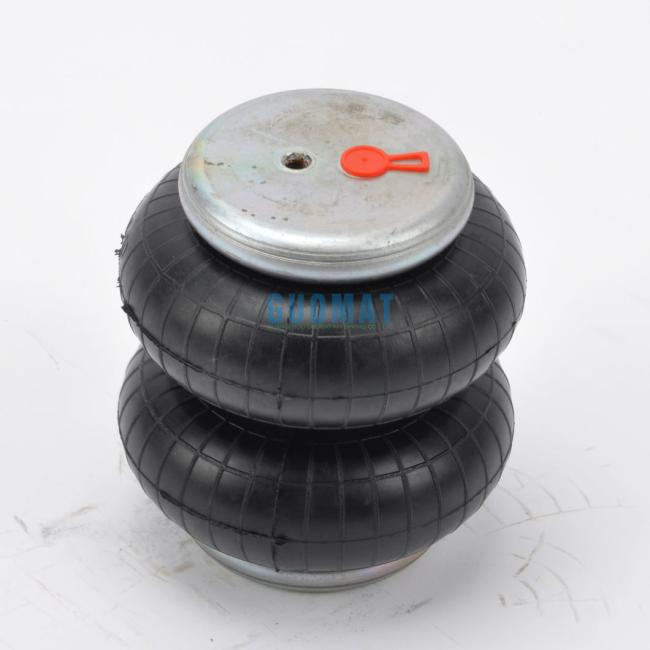

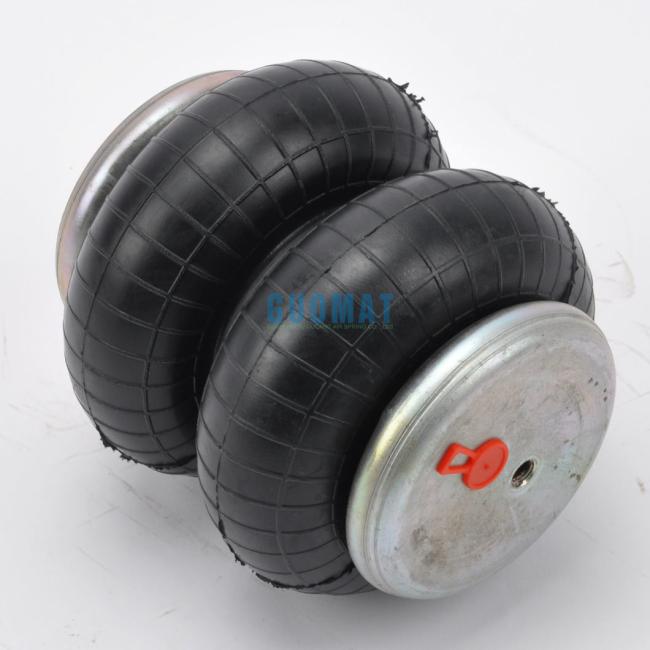

2B4010 Real Photos
