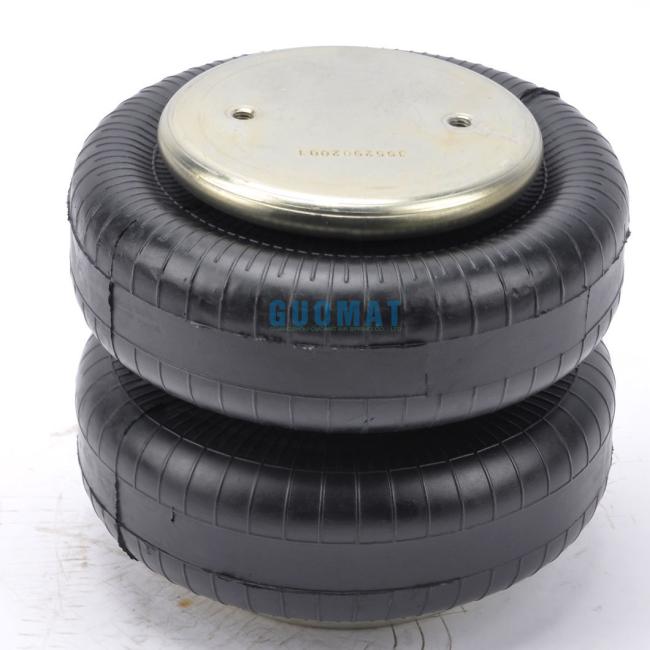

2B9-230 Goodyear Air Suspension Bellows for Industrial Convoluted Spare Parts
2B9-230 Goodyear Air Suspension Bellows for Industrial Convoluted Spare Parts
Double Convoluted Bellows 2B 20-2 Technical Data

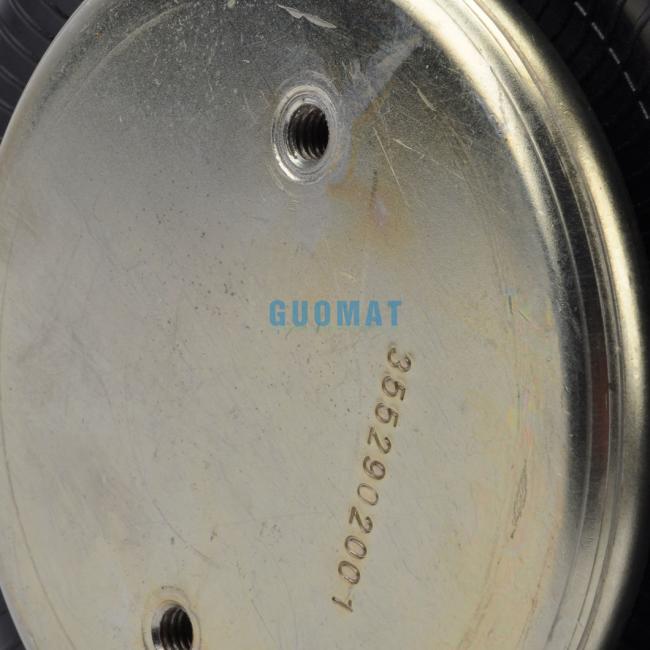

| Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm |
| Air Inlet :3/8 NPT |
| Bolt Center Distance Of Top Cover Plate: 89mm |
| Threaded Hole Center Distance Of Bottom Cover Plate: 89mm |
| Bolt And Gas Hole Diameter Of Top Cover Plate: 44mm |

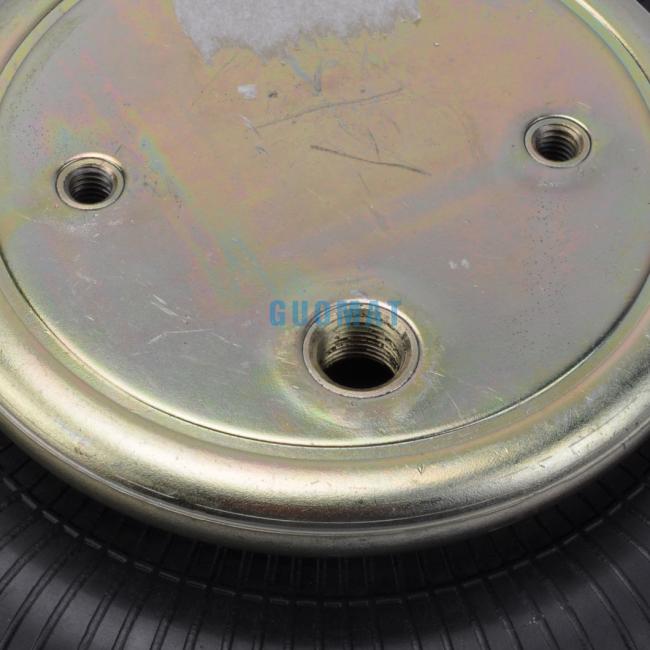

| Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC |
| Rubber Bellow Rubber Bellow MAX Diameter: 232.5mm |
GUOMAT Other Related Product
| Fire-stone | Contitech | Goodyear | Phoenix |
| W01-M58-6165 | FS 120-9 | ||
| W01-M58-6166 | FS 120-9 | ||
| SP 1 B 07 | |||
| W01-358-7731 | |||
| W01-M58-6374 | FS 200-10 | SP 1B 12 | |
| FS 70-7 | SP 1 B 05 | ||
| W01-358-7008 | FS 330-11 474 | 1B12-300/313 | |
| W01-358-7009 | FS 330-11 468 | 1B12-301/578913301 | |
| W01-358-6994/19 | FS 330-11 647 | ||
| FS 40-6 1/8 M8 | SP1B04 | ||
| W01-358-7564 | FS120-10 | 1B8-550 | |
| W01-358-6932 | FD 200-19 452 | 2B9-246 | |
| W01-358-6935 | FD 200-19 499 | 2B9-201 | |
| W01-358-6940 | FD 200-19 450 | 2B9-230 | |
| W01-358-6941 | FD 200-19 448 | 2B9-265/280 | |
| W01-358-6949 | FD200-19506 | ||
| W01-358-7788 | FD 200-19 510 | 2B9-245 |
What Are The Advantages of Our Shock Absorbers
- Increase driving comfort
- Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
- Lower fuel consumption and longer life
- Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
- High stability
- In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability
