Goodyear Suspension Air Spring 2B12-300 Contitech Convoluted Rubber Air Bag FD330-22327
Price:
USD59.9-69.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Goodyear Suspension Air Spring 2B12-300/Contitech Convoluted Rubber Air Bag FD330-22327
Product Information
Cross OEM Original Equipment Manufacturer
Firestone
W01-358-7424
Contitech
FD 330-22 327
Goodyear
2B12-300
Triangle
6316/4327
Brake & Wheel
M3509
Dayton
3547424
Leland
Sc2024
Navistar
554785C1
Hendrickson
S13043
Ridewell
1003587424C
SAF Holland
Tc1442
Tuthill
6421
Watson & Chalin
As0009
Neway
90557014(AL-41&45)
R&S Truck &Body
1090215
Sauer
P10-755
V-olvo
3130504
Goodyear Air Spring Technical Data
Blind Nut
Top Cover Plate Screw (Nut) Tooth :2x1/2-13UNC
Screw Center Distance of Top Cover Plate:157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2x1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
Gas Hole/Air Hole/Air Inlet/Air Fitting
Gas Hole/Air Hole/Air Inlet:1/4NPT
Center Distance Between Air Inlet And Nut:73MM
Cover Plate
Top Cover Plate Diameter:231mm/9.00 inches
Bottom Cover Plate Diameter:231mm/9.00 inches
Rubber Bellows
Rubber Bellows MAX. Diameter:325mm/12.9 inches
Rubber Bellows Natural Diameter :298 mm/11.7 inches
The Working Stroke:MAX305mm to MIN 81mm
Maximum Height:305mm/12 inches
Minimum Height:81mm/4.12 inches
Compression Height:224mm/8.8 inches

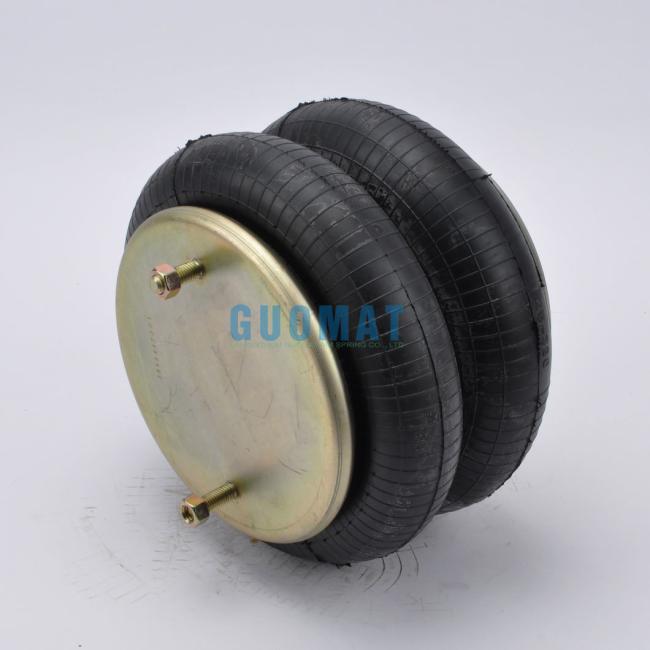

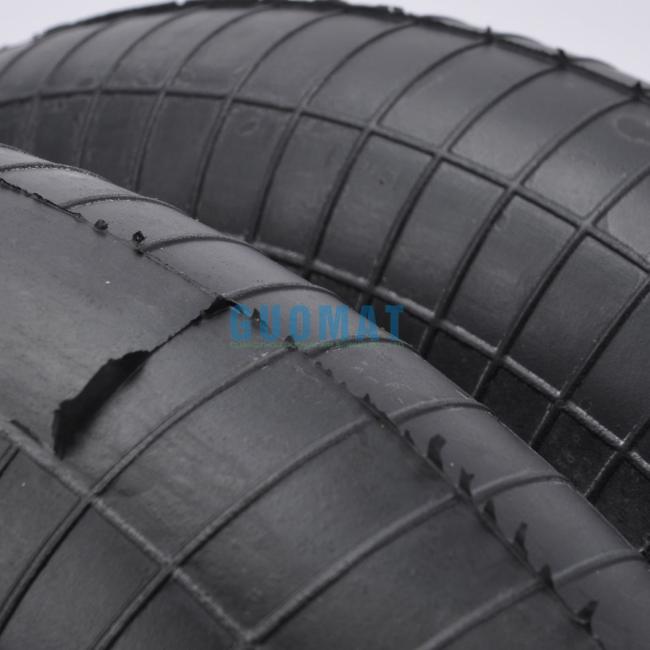

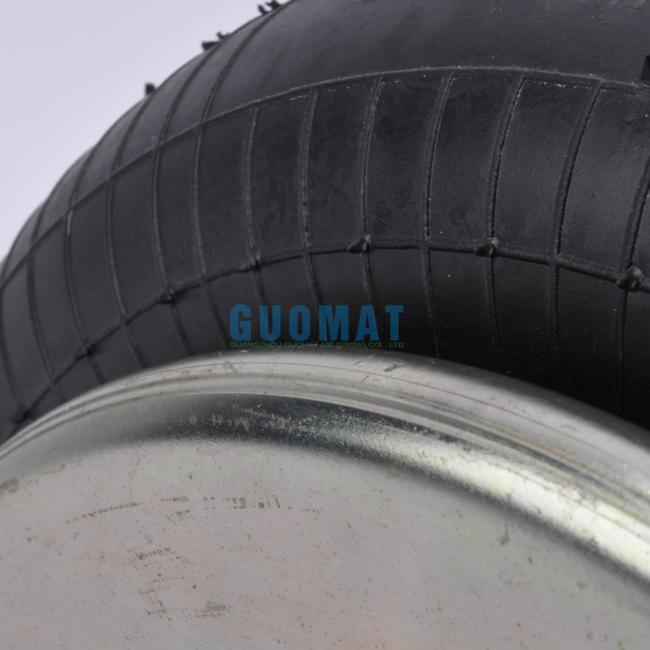

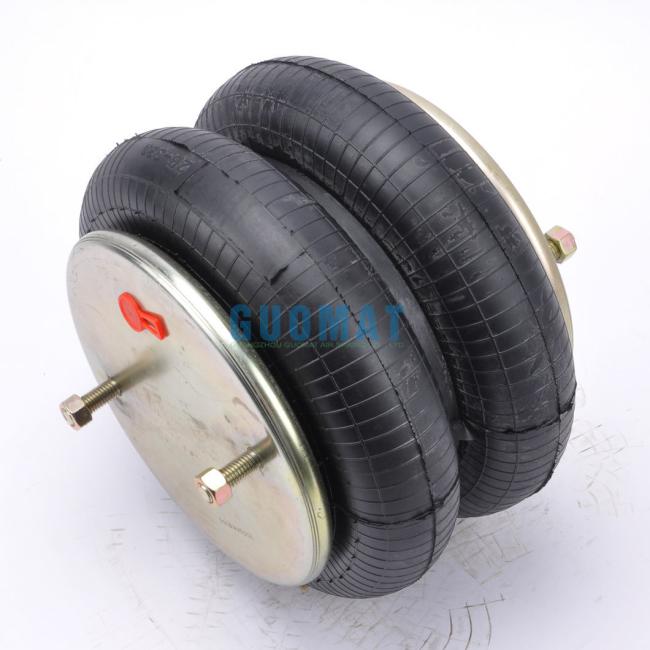

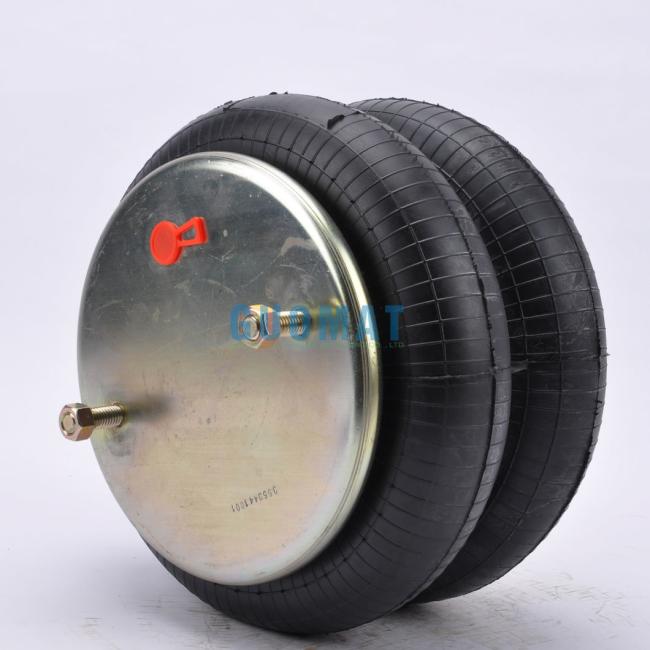

Product Image
![Goodyear Suspension Air Spring 2b12-300/Contitech Convoluted Rubber Air Bag Fd330-22327]()
![Goodyear Suspension Air Spring 2b12-300/Contitech Convoluted Rubber Air Bag Fd330-22327]()
![Goodyear Suspension Air Spring 2b12-300/Contitech Convoluted Rubber Air Bag Fd330-22327]()
![Goodyear Suspension Air Spring 2b12-300/Contitech Convoluted Rubber Air Bag Fd330-22327]()
![Goodyear Suspension Air Spring 2b12-300/Contitech Convoluted Rubber Air Bag Fd330-22327]()
Product Information
Cross OEM Original Equipment Manufacturer
Firestone
W01-358-7424
Contitech
FD 330-22 327
Goodyear
2B12-300
Triangle
6316/4327
Brake & Wheel
M3509
Dayton
3547424
Leland
Sc2024
Navistar
554785C1
Hendrickson
S13043
Ridewell
1003587424C
SAF Holland
Tc1442
Tuthill
6421
Watson & Chalin
As0009
Neway
90557014(AL-41&45)
R&S Truck &Body
1090215
Sauer
P10-755
V-olvo
3130504
Goodyear Air Spring Technical Data
Blind Nut
Top Cover Plate Screw (Nut) Tooth :2x1/2-13UNC
Screw Center Distance of Top Cover Plate:157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2x1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
Gas Hole/Air Hole/Air Inlet/Air Fitting
Gas Hole/Air Hole/Air Inlet:1/4NPT
Center Distance Between Air Inlet And Nut:73MM
Cover Plate
Top Cover Plate Diameter:231mm/9.00 inches
Bottom Cover Plate Diameter:231mm/9.00 inches
Rubber Bellows
Rubber Bellows MAX. Diameter:325mm/12.9 inches
Rubber Bellows Natural Diameter :298 mm/11.7 inches
The Working Stroke:MAX305mm to MIN 81mm
Maximum Height:305mm/12 inches
Minimum Height:81mm/4.12 inches
Compression Height:224mm/8.8 inches
| About Air Spring |
| Air spring are being used in industrial applications as pneumatic actuators that play important roles in some of the most innovative modern machine design. Because of the Air spring actuators durability, resiliency in abrasive environments and overall performance, these can serve as replacements in applications using traditional pneumatic and hydraulic cylinders. |
| Company Information |
| Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field. |
| Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump. |
