W01-358-7545 Firestone Air Suspension Double Convoluted Air Rubber Bellow
W01-358-7545 Firestone Air Suspension Double Convoluted Air Rubber Bellow
Product Specification
- Cover Plate
Top Cover Plate Diameter: 9 in.
Screw Center Distance of Top Cover Plate: 6.2 in.
Bottom Cover Plate Diameter: 9 in.
Screw Center Distance of Bottom Cover Plate: 6.2 in.
- Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 UNC
- Gas Hole/Air Inlet/Air Fitting
Air Hole: 1/4 NPT
- Rubber Bellow
Rubber Bellow Dia: 12.8 in.
Minimum Height: 3.5 in.
Maximum Height: 14.5 in.
Cross Reference
| Firestone |
W01-358-7545, W01 358 7545, W013587545 WO1-358-7545, WO1 358 7545, WO13587545 |
| Contitech | FD 331-26 514, FD 331 26 514, FD33126514, FD331-26 514 |
| Goodyear | 578923315, 2B12-345, 2B12 345, 2B12345 |
| AUX. | 001796 |
| WATSON & CHALIN | AS-0087-1F, AS 0087 1F, AS00871F |
Product Characteristics
1. Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.
2. Angular movement
Depending on the type, ContiTech air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.
3. Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.
FAQ
|
Q: How to guarantee your after sales service?
Q: How do you make our business a long-term and good relationship? 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
Q: Where are the Suspension Air Springs manufactured?
Q: How long does it take to get product after placing the order? |

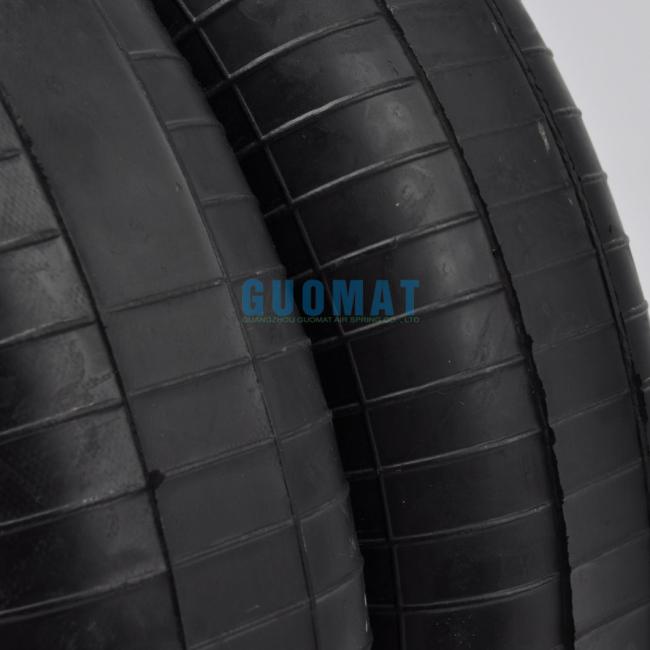

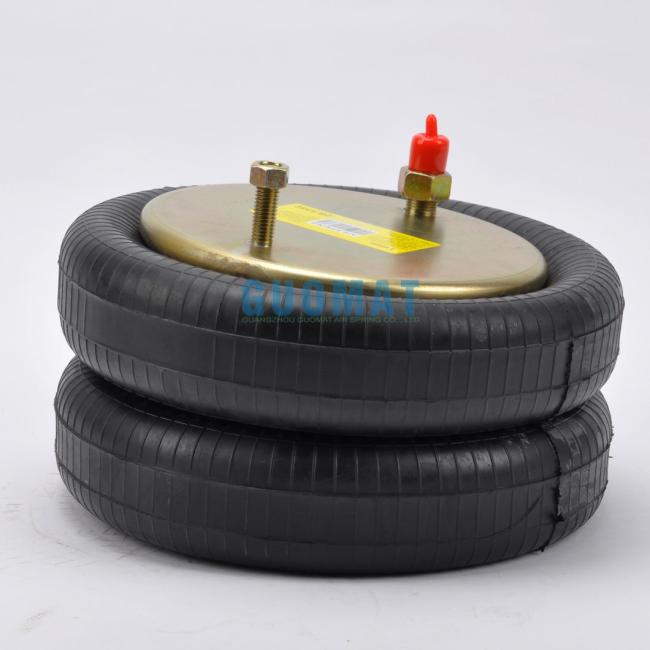

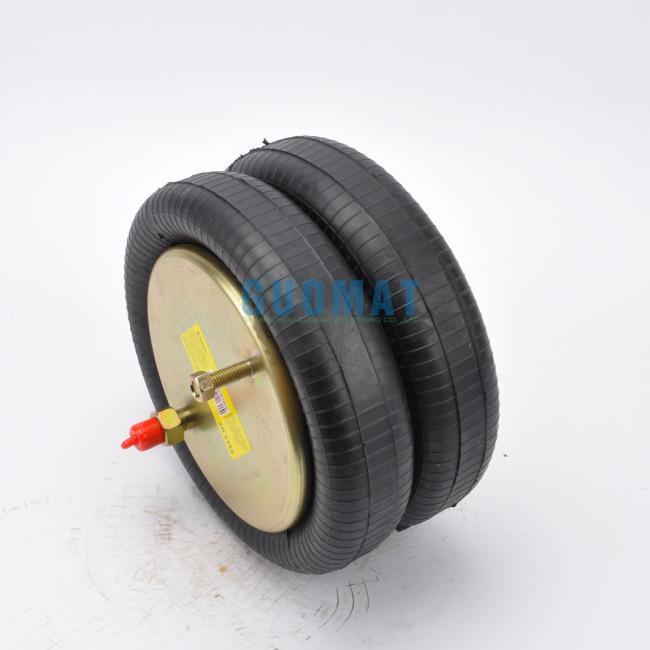

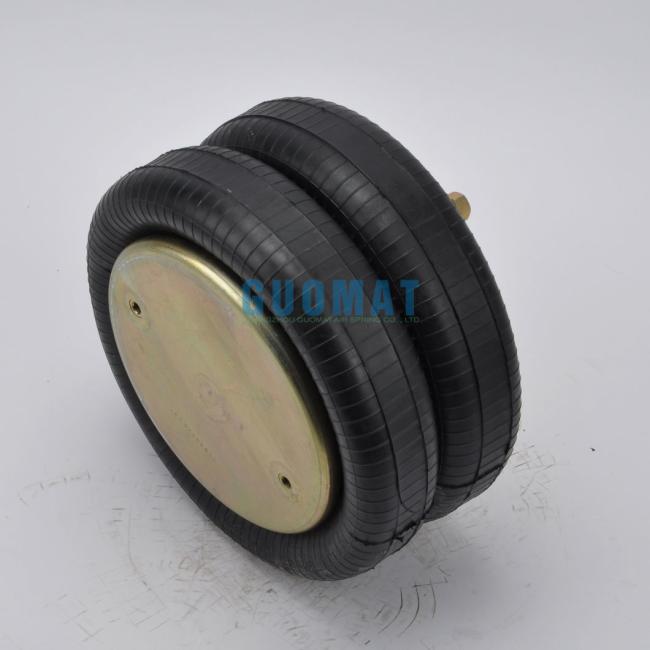

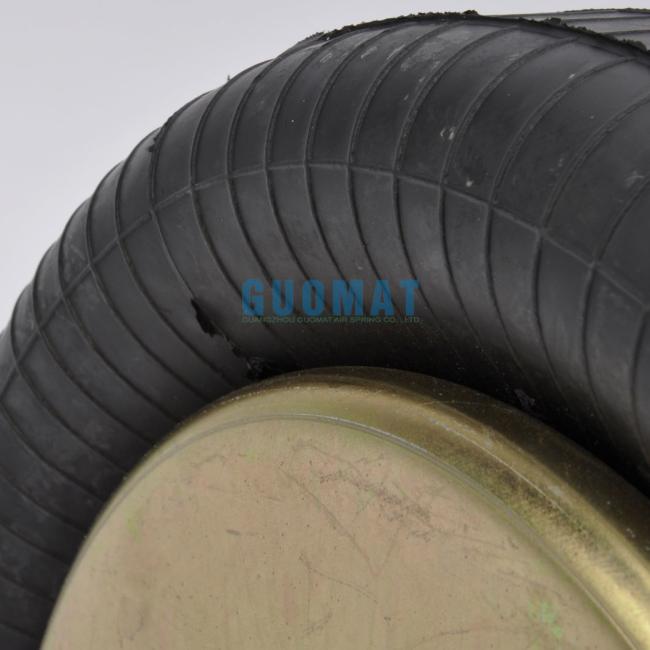

The Detailed Pictures
