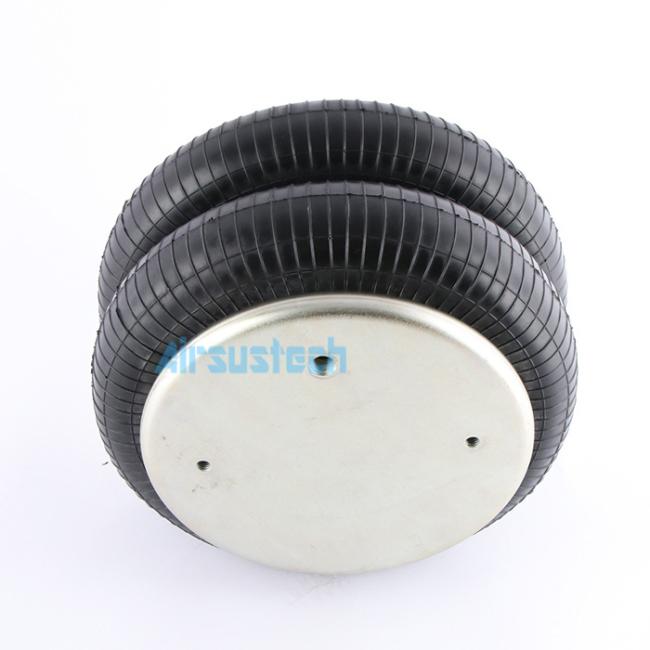

Black Tech Firestone Air Shocks W01-358-7180 Convoluted Air Rubber Bellows
Black Tech Firestone Air Shocks W01-358-7180 Convoluted Air Rubber Bellows
The Detailed Specifications
| Top Cover Plate Diameter: 9 in. |
| Screw Center Distance of Top Cover Plate: 6.2 in. |
| Bottom Cover Plate Diameter: 9 in. |
| Screw Center Distance of Bottom Cover Plate: 6.2 in. |
| Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts |
| Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts |
| Gas Hole: 1/4 NPT |
| Rubber Bellow Dia: 12.9 in. |
| Min. Height: 3.2 in. |
| Max. Height: 12 in. |
Product Technical Data
| Dynamic Characteristics at 9.5 in. Design Height | ||||
| Volume @ 100 PSIG = 782 in3 | Natural Frequency | |||
| Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
| 40 | 2050 | 729 | 112 | 1.86 |
| 60 | 3170 | 1036 | 107 | 1.79 |
| 80 | 4280 | 1373 | 106 | 1.77 |
| 100 | 5400 | 1668 | 104 | 1.74 |
OEM Number
Fire-stone:W01-358-7180
Fire-stone: W01 358 7180
Fire-stone: W013587180
Contitech: FD 330-22 363
Contitech: FD 330 22 363
Contitech: FD 33022363
Good Year: 2B12-425/311
Triangle: 6316/4363
Airkraft: 11506 1/3B-356
Vibracoustic: VSP2B22R7180
EI Rise: 8030190
Kwiklok/Todco(Jifflox)
Leland: Sc2075
Navistar: 1685179C1
Hendrickson: 1VA1816
Ridewell: 1003587180C
SAF Holland: 57007180
Watson&Chalinl: AS01541 G/01881F
Peerless: 0550 00001
Firestone Style 22 Other OEM Number
- Blind nuts, 1/4 NPT
W01-358-7180, W01 358 7180, W013587180, WO1-358-7180, WO1 358 7180, WO13587180
- Blind nuts, 1/4 NPT, bumper
W01-358-7400, W01 358 7400, W013587400, WO1-358-7400, WO1 358 7400, WO13587400
- Blind nuts, 3/4 NPT
W01-358-7184, W01 358 7184, W013587184, WO1-358-7184, WO1 358 7184, WO13587184
- Blind nuts, 3/4 NPT, bumper
W01-358-7185, W01 358 7185, W013587185, WO1-358-7185, WO1 358 7185, WO13587185
- Countersunk steel bead rings, 15/8 bolts, nuts, washers
W01-358-7431, W01 358 7431, W013587431, WO1-358-7431, WO1 358 7431, WO13587431
- Rubber bellows only
W01-358-0226, W01 358 0226, W01350226, WO1-358-0226, WO1 358 0226, WO13580226
