Goodyear 2B12-313/459/578923309 Rubber Double Convoluted Air Spring Shocks
Price:
USD59.9-69.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
Goodyear 2B12-313/459/578923309 Rubber Double Convoluted Air Spring Shocks
OEM NO.
| Firestone | W01-358-7405 |
| Firestone |
WO13587405 |
| Firestone |
WO1-358-7405 |
| Firestone |
W013587405 |
| FIRESTONE | W01-358-7405 |
| FIRESTONE |
WO13587405 |
| FIRESTONE |
WO1-358-7405 |
| FIRESTONE |
W013587405 |
| Goodyear | 2B12-313 |
| Goodyear | 2B12 313 |
| Goodyear | 2B12313 |
| Goodyear | 2B12-459 |
| Goodyear | 2B12 459 |
| Goodyear | 2B12459 |
| Goodyear | 578 9 23 309 |
| Goodyear | 578923309 |
| Contitech | FD330-22 364 |
| Contitech | FD330 22 364 |
| Contitech | FD 330-22 364 |
| Contitech | FD 330 22 364 |
| Triangle | 6316 |
| Triangle | 4364 |
| Arvin Meritor | 200981 |
| Daylon | 3547405 |
| Leland | Sc2073 |
| Hutchens | H-10384-01 |
| SAF Holland | 57007405 |
| Suspensions lnc. |
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B7405
- Nut/blind nut
The screw center distance of the top cover plate: 140mm
Screw (nut) teeth of the bottom cover plate: 2X1/2-13UNC
The screw center distance of the bottom cover plate: 157 mm
- Air hole/air inlet/air fittings
The screw center distance between the air hole and the nut: 140mm
Air Inlet Combine With One Nut
- Cover plate
Diameter of the bottom cover: 231mm
- Rubber Bellows
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Maximum Height: 305 mm / 12 inches
Working Stroke : 224 mm / 8.8 inches
- Bumper block/bumper block
- Belt loop/Belt loop
Min. pressure: 0 bar
Return force to min.height: ≤300N
Overall weight with clamped plates: 5.1kg
Vibration isloation-dynamic characteristic values
Design height H: recommended 220mm, minimum 205mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [KN] | 10.0 | 13.3 | 16.7 | 20.6 | 24.1 | 27.6 | 12.0 |
| Spring rate [N/cm] | 1590 | 1900 | 2210 | 2520 | 2830 | 3140 | |
| Natural frequency [Hz] | 2.0 | 1.9 | 1.8 | 1.8 | 1.7 | 1.7 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 300 | 9.8 | 13.1 | 16.7 | 20.3 | 24.0 | 27.7 | 14.0 |
| 260 | 12.5 | 16.7 | 21.0 | 25.4 | 29.9 | 34.5 | 13.0 | |
| 220 | 14.6 | 19.4 | 24.4 | 29.4 | 34.5 | 39.6 | 11.6 | |
| 180 | 16.2 | 21.6 | 27.0 | 32.5 | 38.2 | 43.8 | 9.9 | |
| 140 | 17.6 | 23.4 | 29.3 | 35.2 | 41.3 | 47.2 | 7.8 | |
| 100 | 18.3 | 24.4 | 30.3 | 36.3 | 42.4 | 48.5 | 5.5 | |

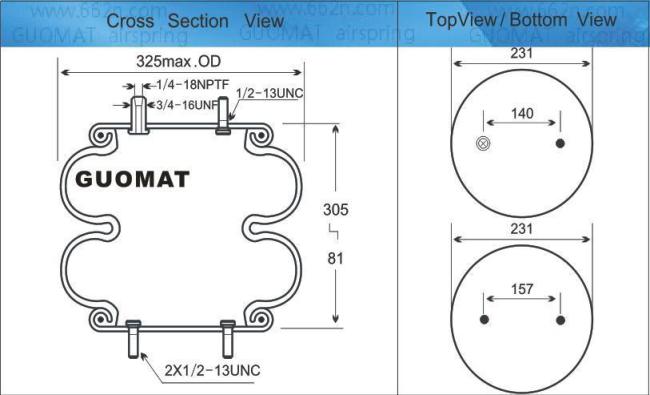

The related picture of 2B7405
