Yokohama S-160-2r Industrial Air Suspension Cross GUOMAT F-160-2 Vibration Conveyor
Yokohama S-160-2r Industrial Air Suspension Cross GUOMAT F-160-2 Vibration Conveyor
F-160-2 Air Spring Specification
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-160-1 | S-160-1 | 72 | 102 | 40 | ±25 | 220 |
| F-160-2 | S-160-2 | 98 | 148 | 53 | ±35 | 220 |
| F-160-3 | S-160-3 | 152 | 227 | 82 | ±53 | 220 |
| F-160-4 | S-160-4 | 206 | 306 | 111 | ±70 | 220 |
Same Bellow Type Other Technical Data
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-160-1 | S-160-1 | 200 | 1.9 | 9.8 | 636 | 3 | 0.69 | 2.9-3.9 |
| F-160-2 | S-160-2 | 200 | 2.1 | 9.8 | 255 | 2.5 | 0.88 | 2.9-3.9 |
| F-160-3 | S-160-3 | 200 | 3.4 | 9.8 | 157 | 2 | 0.88 | 2.9-3.9 |
| F-160-4 | S-160-4 | 200 | 4.7 | 9.8 | 118 | 1.7 | 0.88 | 2.9-3.9 |
Other OEM Number
| S-50-2R | S-50-3R | # | # | # |
| S-60-2R | S-60-3R | S-60-4R | # | # |
| S-90-1R | S-90-3R | # | # | # |
| S-100-2R | S-100-3R | S-100-4R | # | # |
| S-120-2R | S-120-3R | S-120-4R | # | # |
| S-160-2R | S-160-3R | S-160-4R | # | # |
| S-200-2R | S-200-3R | S-200-4R | # | # |
| S-220-2R | S-220-3R | S-220-4R | # | # |
| S-240-1R | S-240-2R | S-240-3R | S-240-4R | # |
| S-300-1R | S-300-2R | S-300-3R | S-300-4R | # |
| S-350-1R | S-350-2R | S-350-3R | S-350-4R | S-350-5R |
| S-400-2R | S-400-3R | S-400-4R | S-400-5R | # |
| S-450-1R | S-450-2R | S-450-3R | S-450-4R | S-450-5R |
| S-500-2R | S-500-3R | S-500-4R | S-500-5R | # |
| S-550-2R | S-550-3R | # | # | # |
| S-600-1R | S-600-2R | S-600-3R | S-600-4R | S-600-5R |
GUOMAT F-160-2 Air Spring Features
- 100% Brand New
- Durable and long service life.
- Direct replacement for your old or broken one, easy installation.
- Built to meet standard specification, strictly follow factory quality control.
- Due to the light and screen difference, the item's color may be slightly different from the pictures.

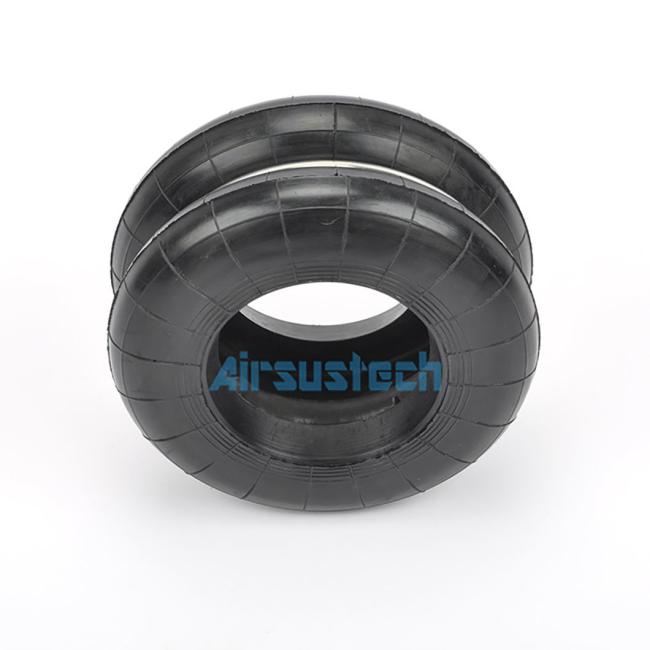

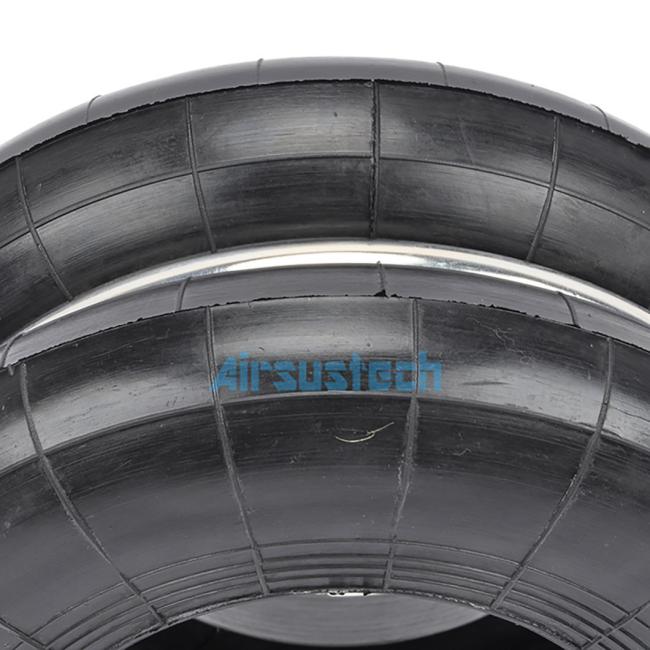

GUOAMT F-160-2 Related Picture
