Brand New Convoluted Suspension Air Spring GF400/215-2 Rubber Bellows Only
Brand New Convoluted Suspension Air Spring GF400/215-2 Rubber Bellows Only
GF400/215-2 Rubber Bellows Specification
| Rubber Bellows MAX Diameter | 262 mm |
| Rubber Bellows Natural Diameter | 225 mm / 8.88 inches |
| The Working Stroke | MAX 325mm to MIN 81 mm |
| Maximum Height | 325 mm |
| Minimum Height | 81 mm / 3.12 inches |
| Stroke Height | 224 mm |
Other Air Spring OEM Number
| Model |
Design size (DO mm) |
The largest diameter (mm) |
The end diameter (φo mm) |
Design height (H mm ) |
Convolutions number (N) |
Whole trip ( L mm) |
01-0.7 MPA bearing capacity (Kg) |
| GF40/60-1 | 40 | 80 | 80 | 60 | 1 | 40-70 | 50-88 |
| GF100/140-2 | 100 | 150 | 145 | 140 | 2 | 68-168 | 314-550 |
| GF100/166-2 | 100 | 160 | 160 | 176 | 2 | 74-200 | 314-550 |
| GF120/102-1 | 120 | 188 | 180 | 102 | 1 | 50-118 | 452-792 |
| GF150/206-2 | 150 | 230 | 220 | 216 | 2 | 74-250 | 707-1237 |
| GF150/298-3 | 150 | 230 | 220 | 316 | 3 | 98-350 | 707-1237 |
| GF200/206-2 | 200 | 280 | 280 | 218 | 2 | 74-250 | 1257-2199 |
| GF200/298-3 | 200 | 280 | 280 | 320 | 3 | 98-350 | 1257-2199 |
| GF230/206-2 | 230 | 310 | 310 | 218 | 2 | 74-250 | 1662-2908 |
| GF230/298-3 | 230 | 310 | 310 | 320 | 3 | 110-350 | 1662-2908 |
| GF250/206-2 | 250 | 330 | 330 | 218 | 2 | 74-250 | 1964-3436 |
| GF250/298-3 | 250 | 330 | 330 | 320 | 3 | 110-350 | 1964-3436 |
| GF280/206-2 | 280 | 360 | 360 | 218 | 2 | 74-250 | 2463-4311 |
| GF280/298-3 | 280 | 360 | 360 | 320 | 3 | 110-350 | 2463-4311 |
| GF300/218-2 | 300 | 380 | 380 | 226 | 2 | 85-270 | 2828-4948 |
| GF300/316-3 | 300 | 380 | 380 | 330 | 3 | 120-370 | 2828-4948 |
| GF320/120-1 | 320 | 400 | 400 | 120 | 1 | 60-150 | 3217-5629 |
| GF320/215-2 | 320 | 400 | 400 | 226 | 2 | 85-270 | 3217-5629 |
| GF320/310-3 | 320 | 400 | 400 | 330 | 3 | 120-370 | 3217-5629 |
| GF400/215-2 | 400 | 480 | 480 | 228 | 2 | 90-270 | 5026-8796 |
| GF400/310-3 | 400 | 480 | 480 | 334 | 3 | 130-370 | 5026-8796 |
| GF440/215-2 | 440 | 520 | 520 | 215 | 2 | 82-248 | 6082-10644 |
| GF440/310-3 | 440 | 520 | 520 | 310 | 3 | 120-360 | 6082-10644 |
| GF500/220-2 | 500 | 580 | 580 | 220 | 2 | 92-252 | 7854-13744 |
| GF500/320-3 | 500 | 580 | 580 | 320 | 3 | 128-370 | 7854-13744 |
| GF500/420-4 | 500 | 580 | 580 | 420 | 4 | 155-500 | 7854-13744 |
| GF580/262-2 | 580 | 680 | 680 | 262 | 2 | 92-305 | 10568-18495 |
| GF580/384-3 | 580 | 680 | 680 | 384 | 3 | 124-448 | 10568-18495 |
Product Advantages
- Frictionless operation
- No maintenance or lubrication
- Ideal for short stroke, high-force applications
- High vibration isolation level
- Simple to install
Support and Services
The Suspension Air Springs product technical support and services include:
Expert troubleshooting assistance to diagnose and resolve technical issues
Guidance on proper installation and maintenance procedures
Product documentation, including user manuals and technical specifications
Product training and education for customers and service technicians
Warranty and repair services, including replacement parts and exchange programs
Customer support for urgent technical issues or service needs

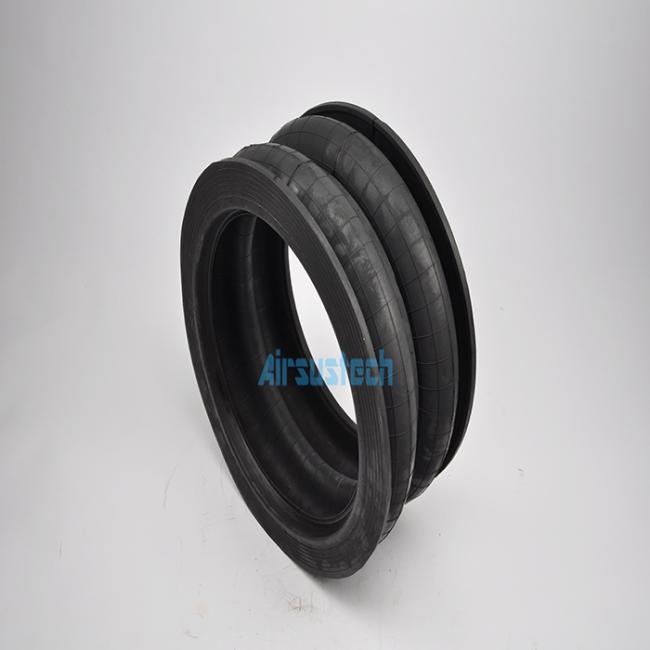

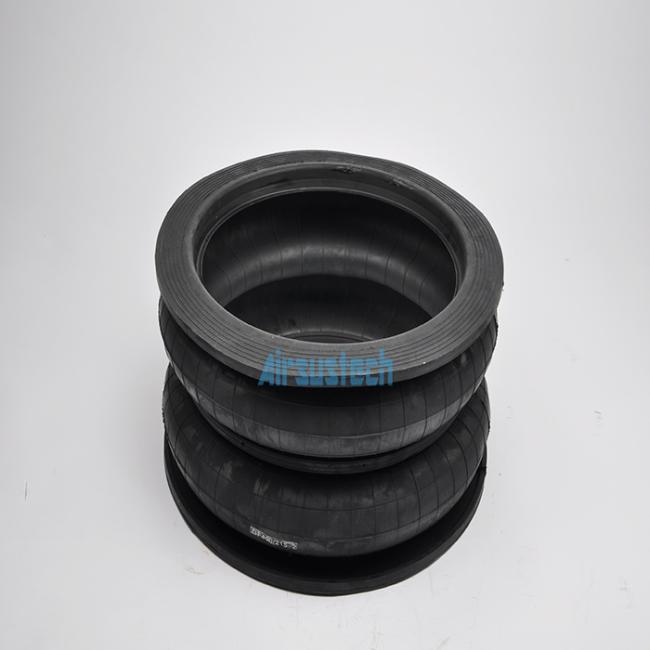

GF400/215-2 Air Spring Real Photos
