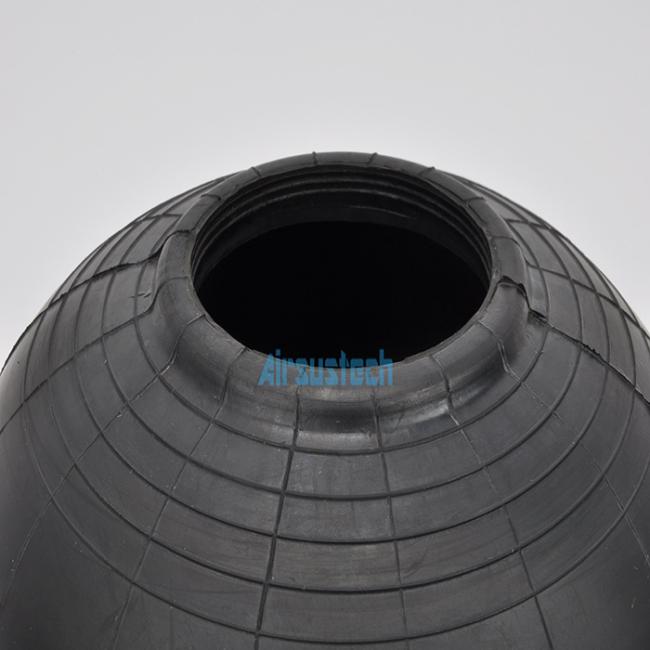

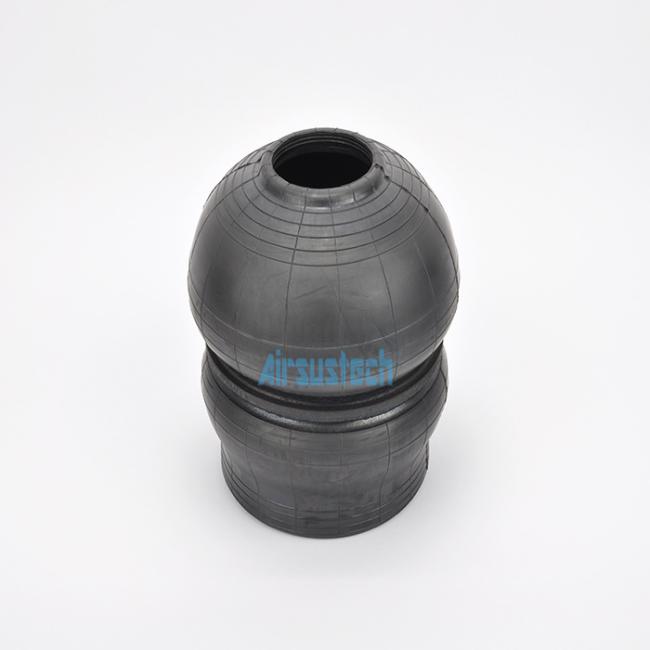

Mitsubishi 03362-33000 Double Convoluted Air Suspension One Year Quality Assurance
Mitsubishi 03362-33000 Double Convoluted Air Suspension One Year Quality Assurance

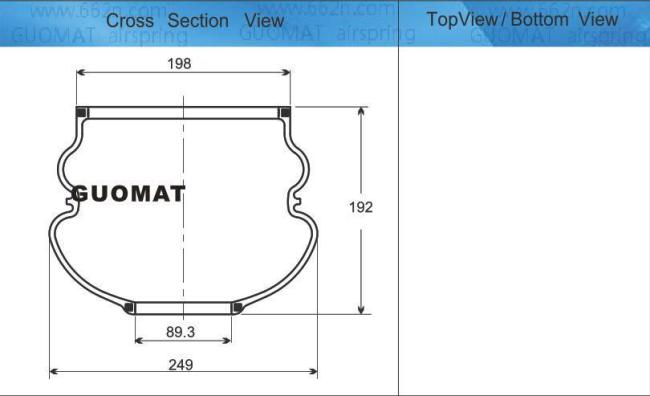

Rubber Bellow Specification
| Rubber Bellows Design Diameter | 192mm |
| Rubber Bellows MAX Diameter | 119 mm |
| Minimum Height | 90 mm |
| Rubber Bellows Natural Height | 192 mm |
| Top Opening Mouth Diameter | 198 mm |
| Bottom Opening Mouth Diameter | 89.3 mm |
Refer No.
- HINO Air Spring
03362-33000, 03362 33000, 0336233000
- Mitsubishi Air Spring
03362-33000, 03362 33000, 0336233000
Other Air Springs OEM Number
| GUOMAT Number | Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | |||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||||||||||
| 2B6 530 | 2B6-530 | 6.5 | 180 - 2,000 | 4.5 - 6.5 | 4.9 | 2.8 | 7.7 | NO | 85 | 96 | 97 | 99 | 1/4 C |
| 2B6 531 | 2B6-531 | 6.5 | 180 - 2,000 | 4.5 - 6.5 | 4.9 | 2.8 | 7.7 | NO | 85 | 96 | 97 | 99 | 1/4 OS |
| 2B6 532 | 2B6-532 | 6.5 | 180 - 2,000 | 4.5 - 6.5 | 4.3 | 3.4 | 7.7 | YES | 85 | 96 | 97 | 99 | 1/4 OS |
| 2B6 535 | 2B6-535 | 7 | 300 - 2,200 | 5.0 - 7.0 | 6.3 | 2.8 | 9.1 | NO | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B6 536 | 2B6-536 | 7 | 300 - 2,200 | 5.0 - 7.0 | 5.7 | 3.4 | 9.1 | YES | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B7 540 | 2B7-540 | 8 | 230 - 2,500 | 6.0 - 8.0 | 6.5 | 2.5 | 9 | NO | 91 | 97 | 98 | 99 | 1/4 C |
| 2B7 541 | 2B7-541 | 8 | 230 - 2,500 | 6.0 - 8.0 | 6.5 | 2.5 | 9 | NO | 91 | 97 | 98 | 99 | 1/4 OS |
| 2B7 542 | 2B7-542 | 8 | 230 - 2,500 | 6.0 - 8.0 | 5.7 | 3.3 | 9 | YES | 91 | 97 | 98 | 99 | 1/4 OS |
| 2B7 546 | 2B7-546 | 8 | 230 - 2,500 | 6.0 - 8.0 | 6.5 | 2.5 | 9 | NO | 91 | 97 | 98 | 99 | 3/4 C |
| 2B8 550 | 2B8-550 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 1/4 C |
| 2B8 552 | 2B8-552 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 3/4 C |
| 2B8 553 | 2B8-553 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B8 554 | 2B8-554 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 6.6 | 3.5 | 10.1 | YES | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B9 200 | 2B9-200 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9 201 | 2B9-201 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9 204 | 2B9-204 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9 205 | 2B9-205 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9 208 | 2B9-208 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9 216 | 2B9-216 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9 250 | 2B9-250 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 251 | 2B9-251 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 253 | 2B9-253 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 255 | 2B9-255 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 256 | 2B9-256 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9 263 | 2B9-263 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/2 OS |
| 2B9 275 | 2B9-275 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 3/4 OS |
FAQ
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
Q: Can I use my own logo?
A: Sure. We can do as per the customer's requirements.
The Real Picture of 2B5371
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
