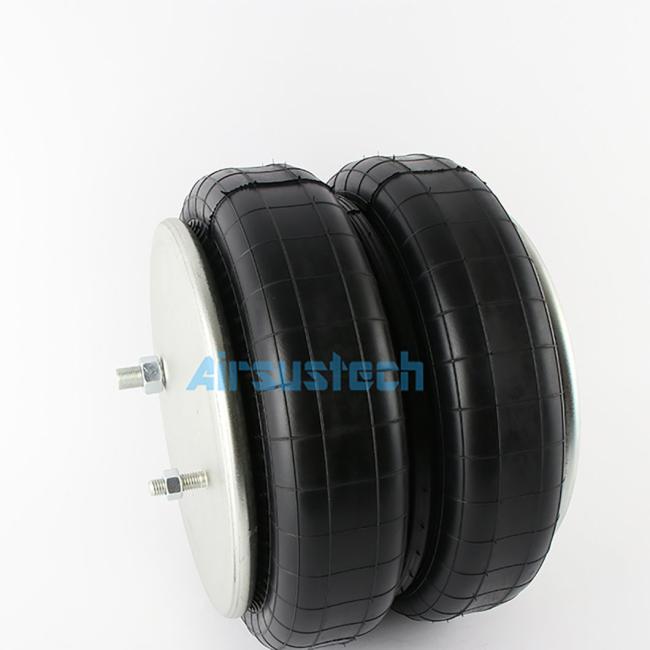

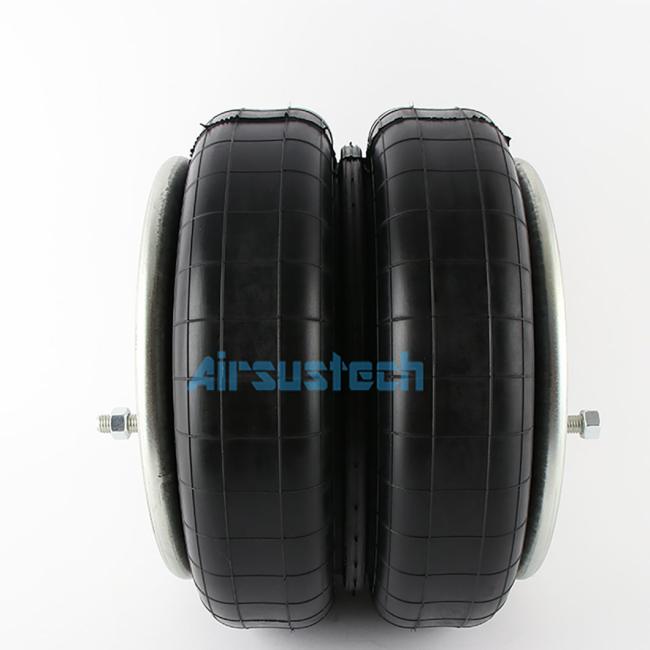

W01-358-7557 Firestone Suspension Air Spring For Heavy Duty Trucks Air Bellows
W01-358-7557 Firestone Suspension Air Spring For Heavy-duty Trucks Air Bellows
Product Specification
|
Nut/blind nut |
|
| Top plate screw (nut) teeth | M18×1.5, M12×1.75 |
| Screw (nut) teeth of the bottom cover plate | 2×M12×1.75 |
|
Air hole/air inlet/air fittings |
|
| Air hole/air inlet | 1/4NPT |
| Cover plate | |
| Top plate diameter | 289 mm |
| Bottom cover diameter | 289mm |
| Bell rubber bellows | |
| Rubber Bellow Diameter | 353mm |
| Stroke | 104mm to 391mm |
| Bumper block/bumper block | |
| Bumper block | Yes |
| Belt loop/Belt loop | |
|
Belt loop |
One |
Alternative Items
|
Firestone W01-358-7557, W01 358 7557, W013587557 WO1-358-7557, WO1 358 7557, WO13587557 |
|
Contitech FD 530-35 530, FD530-35 530, FD530-35530 FD 530 35 530, FD 530-35530, FD53035530 |
|
Goodyear 2B14-383, 2B14 383, 2B14383 |
|
Triangle 6412, 4530 |
|
Reyco 19983-01 (21AR,74AR |
|
Watson&Chalin AS-0089, AS 0089 |
|
Histeer 10316 |
|
Twthill 1998301 |
The Structure of The Air Spring
- Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
- Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
- According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
- The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.
