Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life
Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life
Product Information
|
Rubber Bellow Diameter: 300mm Design Height: 186mm Bumper block: Without Belt loop/Girdle Hoop: One piece |
|
Screw Center Distance: 232 mm Air Hole/Air Inlet/Gas Hole: Rp 1/2 Nut/Blind Nuts Type: M8 |
|
Min. pressure: 0 bar Return force to min.height: ≤300N Overall weight with clamped plates: 4.8kg |
Product Technical Data Sheet
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 240 | 10.0 | 13.3 | 16.7 | 20.6 | 24.1 | 27.6 | 12.3 |
| 220 | 11.3 | 15.2 | 18.9 | 23.1 | 26.9 | 30.8 | 11.6 | |
| 200 | 12.5 | 16.7 | 20.8 | 25.3 | 29.5 | 33.8 | 10.8 | |
| 180 | 13.6 | 18.2 | 22.7 | 27.5 | 32.0 | 36.5 | 9.9 | |
| 160 | 14.6 | 19.4 | 24.3 | 29.5 | 34.3 | 39.1 | 8.9 | |
| 140 | 15.4 | 20.5 | 25.5 | 31.1 | 36.3 | 41.3 | 7.8 | |
| 120 | 16.3 | 21.4 | 26.7 | 32.7 | 38.2 | 43.4 | 6.7 | |
| 100 | 16.8 | 22.1 | 27.8 | 34.1 | 39.8 | 45.0 |
5.5 |
|
Cross References
| Contitech FD 412-18S |
| Dunlop FR SP 256 NB, SP 1541 NB, SP 1025 NB, SP 2665 NB(12×2) |
| Firestone Fole 210 095.008 |
| Airkraft 113301, 113300, 113305 |
| Grat T291, 2B-300, 2B 300, 114300 |
| Granning 15603 |
| Kaiser A06030616 |
Product Applications
- Gate Valve Operator
- Glue Coating Machine
- Web Tightening Tool
- Stripper
- Tool Spring Driver
- Quenching Drain Driver
- Paper Mill
- Pickling Tank Driver

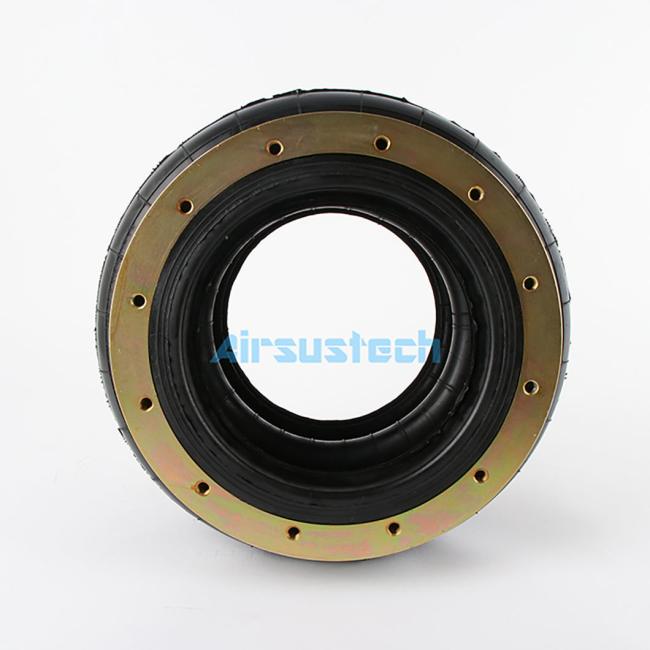

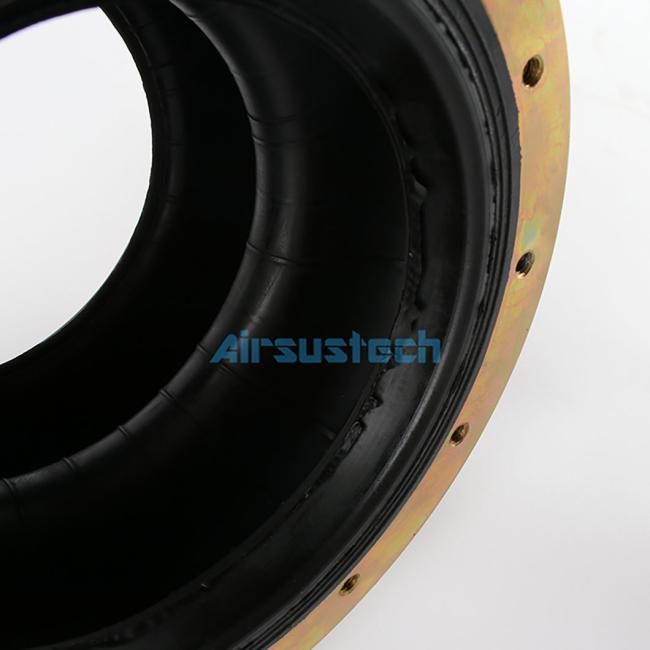

The Related Picture of 2B12×2
