Convoluted Air Spring GUOMAT 2B5240 Airride Air Spring Assembly Heavy Truck Part
Convoluted Air Spring GUOMAT 2B5240 Airride Air Spring Assembly Heavy Truck Part
2B5240 Specification
| Top plate screw (nut) teeth: 2X3/8-16UNC |
| The screw center distance of the top cover plate: 44.5mm |
| Bottom cover plate screw (nut) teeth: 3/8-16UNC |
| Air hole/air inlet/air fittings: 3/8NPT |
| The distance betweem the air hole/air inlet/air fittings and the screw: 22mm |
| Rubber bellows stroke: 160mm |
| Rubber bellows diameter: 121mm |
| Top plate diameter (width): 111 mm |
| Bottom cover plate diameter: 111 mm |
| Bumper block/bumper block: without |
| Belt loop: with one piece of belt loop/girdle hoop |
| Working Temperature: -40°C +70°C |
| Failure testing: ≥3 millions |
GUOMAT Air Spring Features
- Premium Quality Materials: Our Convoluted Air Spring GUOMAT 2B5240 is crafted with high-quality materials, ensuring maximum durability and reliability for heavy-duty use.
- Excellent Suspension Performance: This air spring assembly offers superior suspension performance, thanks to its ability to absorb and buffer external shocks effectively. It provides a smooth and comfortable ride for both the driver and the load.
- Adjustable Stiffness: The air spring allows for easy adjustment of stiffness, making it adaptable to different applications and working conditions. This feature ensures optimal performance in a variety of scenarios.
- Long Service Life: Built with precision engineering and high-grade materials, this air spring assembly is designed to offer a long service life, reducing the need for frequent replacements and maintenance.
- Environmental Friendliness: Made with eco-friendly materials, this air spring contributes to protecting the environment while also saving energy.
GUOMAT 2B5240 Applications
- Air Cushion Spring
- Pneumatic Suspension Spring
- Heavy-Duty Truck Part Air Spring Assembly
- Product Applications:
- This Convoluted Air Spring GUOMAT 2B5240 is designed for use in heavy-duty trucks, providing support and suspension for the vehicle. It ensures a smooth ride even on rough roads, reducing wear and tear on the vehicle and its components.
FAQ
|
Q: Are you a Manufacture factory?
Q: What's your transportation?
Q: Is the sample available?
Q: Can I use my own logo and design on products? |

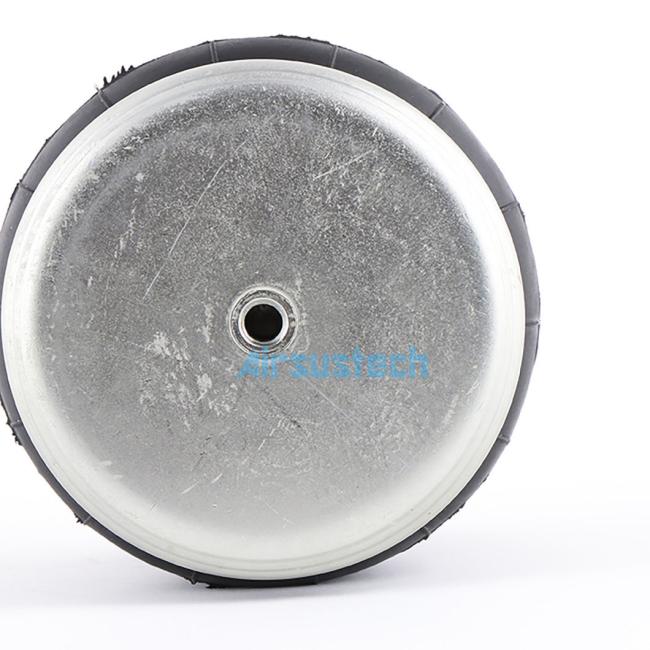

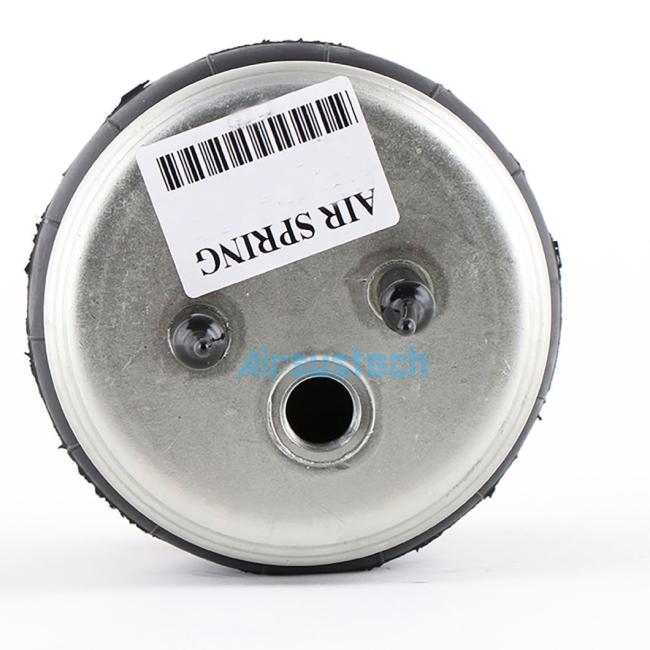

2B5240 Air Spring Real Pictures
Company Profile

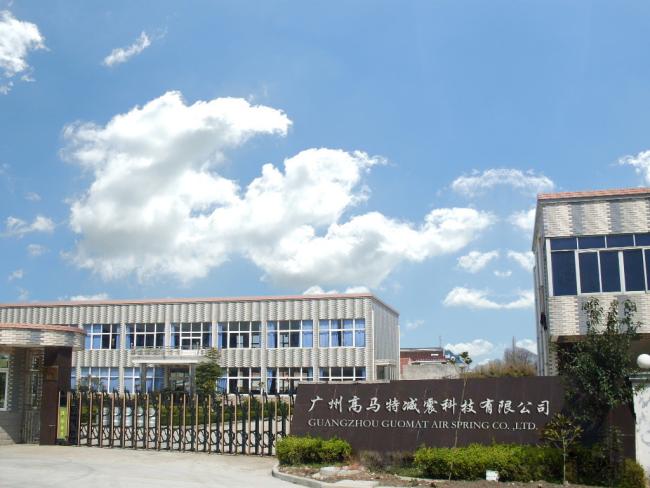

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.

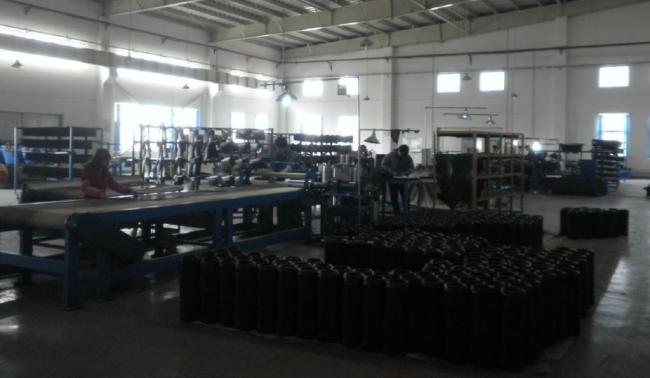

Factory Workshop
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
