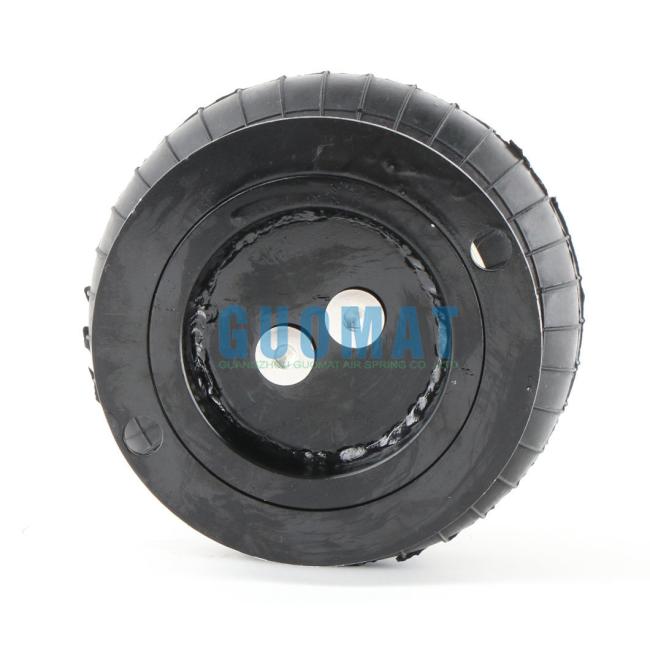

Contitech Air Bellows Actuator FD40-10 Convoluted Air Spring Assembly
Contitech Air Bellows Actuator FD40-10 Convoluted Air Spring Assembly Brand New
Product Specification
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | 20 mm |
| Bottom Plate Diameter | 90 mm |
| Bottom Plate Hole Quantity | 2 |
| Bottom Plate Type | Steel |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | 20 mm |
| Top Plate Diameter | 90 mm |
| Top Plate Hole Quantity | 3 |
| Top Plate Type | Steel |
| Bellow Maximum Diameter | 145 mm |
| Expanded Height | 170 mm |
| Compressed Height | 70 mm |
| Spring Type | Double Convoluted |
| Air Inlet | G 1/8 |
| Nut/Blind Nuts Type | M8 |
Product Technical Data
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 160 | 1.1 | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 1.2 |
| 140 | 1.6 | 2.2 | 2.8 | 3.3 | 3.9 | 4.5 | 1.1 | |
| 120 | 2.0 | 2.7 | 3.4 | 4.1 | 4.8 | 5.5 | 0.9 | |
| 100 | 2.3 | 3.1 | 4.0 | 4.8 | 5.6 | 6.4 | 0.7 | |
| 80 | 2.6 | 3.5 | 4.5 | 5.4 | 6.3 | 7.1 | 0.6 | |
Cross References
| GUOMAT NO. 2B4060 |
| Contitech FD40-10 |
| Contitech FD 40-10 |
| Contitech FD40-10 CI |
| Contitech FD 40-10 CI |
| Contitech FD40-10 CI 1/8 NPT |
| Contitech FD 40-10 CI 1/8 NPT |
Double Convoluted Air Spring Of Contitech We Can Offer
| FD 40-10 CI |
| FD 70-13 CI |
| FD 110-15 CI |
| FD 120-17 CI |
| FD 120-20 CI |
| FD 200-19 CI |
| FD 200-22 CI |
| FD 200-25 CI |
| FD 330-22 CI |
| FD 330-30 CI |
| FD 530-30 CI |
| FD 530-35 CI |
| FD 960-22 CI |
| FD 133-25 CI |
FAQ
Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q1: What's your advantage?
A1: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world
