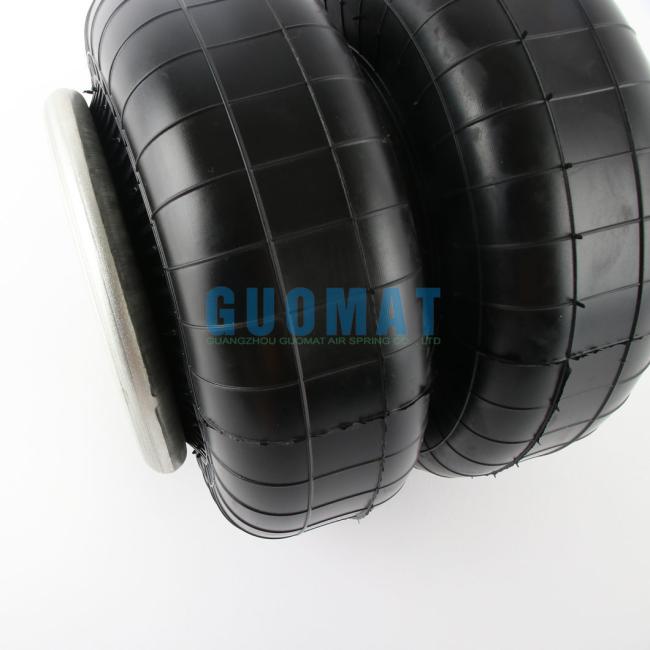

Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs
Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs
2B8×2T Air Spring Information
| Bottom Plate Alignment: Parallel |
| Bottom Plate Center To Center Diameter: 156 mm |
| Bottom Plate Diameter: 184 mm |
| Bottom Plate Hole Quantity: 4 |
| Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel |
| Top Plate Center To Center Diameter: 156 mm |
| Top Plate Diameter: 184 mm |
| Top Plate Hole Quantity: 5 |
| Top Plate Type: Steel |
| Bellow Maximum Diameter:230 mm |
| Expanded Height: 72 mm |
| Compressed Height: 225 mm |
| Spring Type: Double Convoluted |
| Air Inlet: 1/2 BSP |
| Nut/Blind Nuts Type: 4×M10 |
Alternative Items
| FIRE-STONE NO. |
W01-R58-4055, W01R584055, W01/R58/4055 w01-r58-4055, w01r584055, 4055, 8x2 , 8''x2 , 8'x2 |
| FRUEHAUF NO. | F48054, M80A04, F 48054, M 80A04 |
| LOHR NO. | A06030604, A 06030604 |
| SAMRO NO. | H2500021, H2500188, H 2500021, H 2500188, H 250 0021, H 250 0188 |
| SISU TRUCK NO. | 1531110600, 153 111 0600 |
| DUNLOP NO. | SP1490, SP918, SP 1490, SP 918 |
| CONTITECH NO. | FD 138-18 DS, FD138-18 DS, FD128 18 DS, FD 138 18 DS |
| NORGREN NO. | M/31082, M 31082, M31082 |
| PARKER NO. | 9109011 |
Product Applications
- Gate Valve Operator
- Glue Coating Machine
- Web Tightening Tool
- Stripper
- Tool Spring Driver
- Quenching Drain Driver
- Paper Mill
- Pickling Tank Driver
