Firestone Double Convoluted Air Spring W01-358-7325 Air Actuator Air Lift Suspension

Name: Firestone Double Convoluted Air Spring W01-358-7325 Air Actuator Air Lift Suspension
Brand: GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Price Negotiable

Price: Negotiable

MOQ: 5

Delivery Time: 5-8 Working Days

Brand: GUOMAT

Product Description

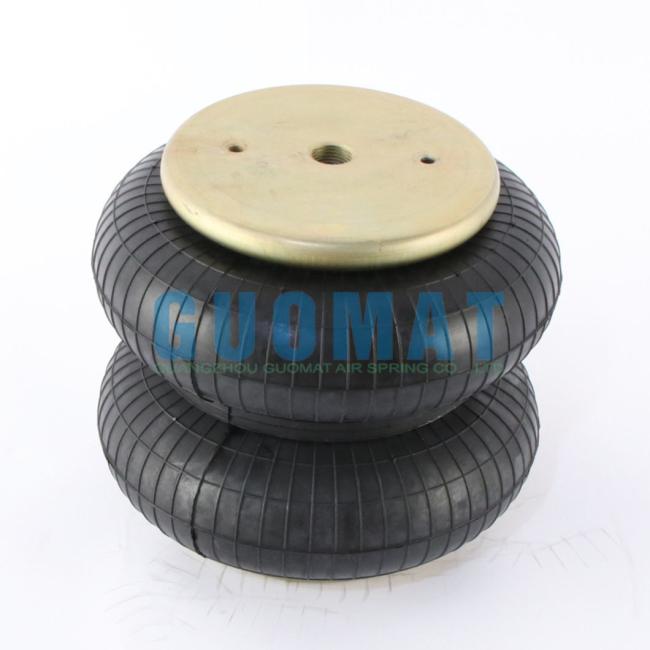

Firestone Double Convoluted Air Spring W01-358-7325 Air Actuator Air Lift Suspension

Product Details

Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	2.75 Inches
Bottom Plate Diameter	5.31 Inches
Bottom Plate Hole Quantity	2
Bottom Plate Type	Steel
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	2.75 Inches
Top Plate Diameter	5.31 Inches
Top Plate Hole Quantity	3
Top Plate Type	Steel
Bellow Maximum Diameter	8.6 Inches
Expanded Height	10 Inches
Compressed Height	2.8 Inches
Spring Type	Double Convoluted
Air Inlet	1/4 NPTF
Nut/Blind Nuts Type	2×3/8-16UNC

OEM Number

Firestone Air Spring

W01-358-7325, W01 358 7325, W013587325

WO1-358-7325, WO1 358 7325, WO13587325

Contitech Air Spring

FD 120-20 509, FD120-20 509, FD120 20 509, FD12020 509

Goodyear Air Spring

2B8-550, 2B8 550, 2B8550, 2B8-153, 2B8 153, 2B 8-153

579-92-3-530, 579 92 3 530, 579923530

Triangle Air Spring

6392, 4509

American Carrier Air Spring

8003-006, 8003 006

Mac-k Truck Air Spring

227QS-32, 227QS 32, 227QS32, 57QK1113

E.R.F Air Spring

1398567

Sauer Air Spring

P10-754, P10 754, P10754

SAF Holland Air Spring

57007325

Ridewell Air Spring

1003587325C

Watson&Chalin Air Spring

AS-0030, AS0030, AS 0030

Hendrickson Air Spring

S-14395, S 14395, S14395, NA1821, NA 1821

Terberg Air Spring

21065660

Firestone Style 26 Other OEM Numbers

Style 26 Two Ply ellows	Blind nuts, 1/4 NPT	W01-358-7325, W01 358 7325, W013587325 WO1-358-7325, WO1 358 7325, WO13587325
	Blind nuts, 3/4 NPT	W01-358-7327, W01 358 7327, W013587327 WO1-358-7327, WO1 358 7327, WO13587327
	Countersunk steel bead rings, 1^3/4 bolts, nuts, washers	W01-358-7333, W01 358 7333, W013587333 WO1-358-7333, WO1 358 7333, WO13587333
	Rubber bellows only	W01-358-0142, W01 358 0142, W013580142 WO1-358-0142, WO1 358 0142, WO13580142

Product Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

Company Profile

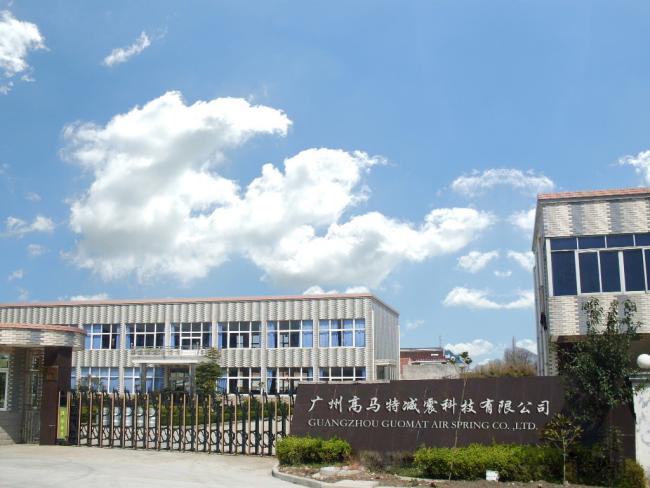

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

2b8-550/153 Goodyear Double Convoluted Industrial Air Bags
