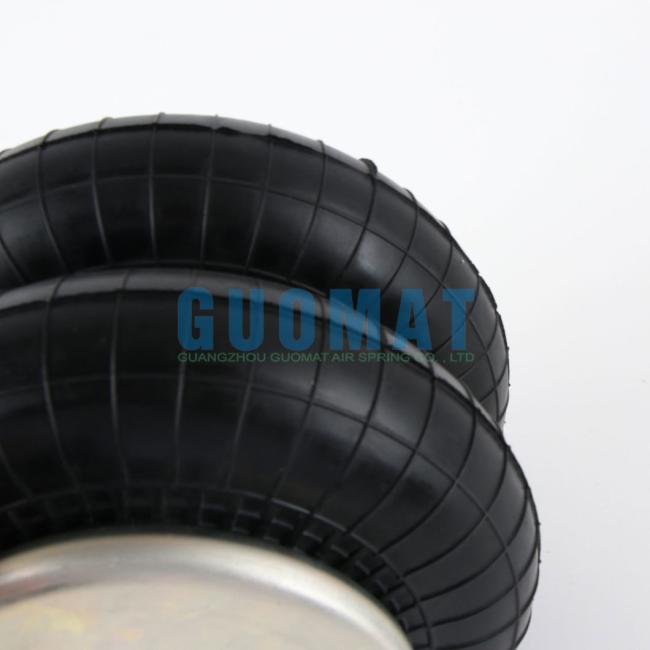

Double Convoluted Air Spring GUOMAT 250190-2 Air Shock Absorber For Punching Press
Double Convoluted Air Spring GUOMAT 250190-2 Air Shock Absorber For Punching Press
Product Introduction
GUOMAT Air Bellows are designed for customer applications where conventional pneumatic actuators are either not powerful enough or too bulky, or where environmental conditions would be demanding in maintenance. The primary market sector is industrial and includes the paper, food, textile and building industries amongst others.
In the automotive sector bellows are supplied as part of ‘auxiliary air suspension’ or ‘air assist’ kits for motorhomes. For this application, the bellow works alongside the existing steel suspension to provide for improved stability and comfort, reduced body roll and levelling capability among other benefits.
Product Specification

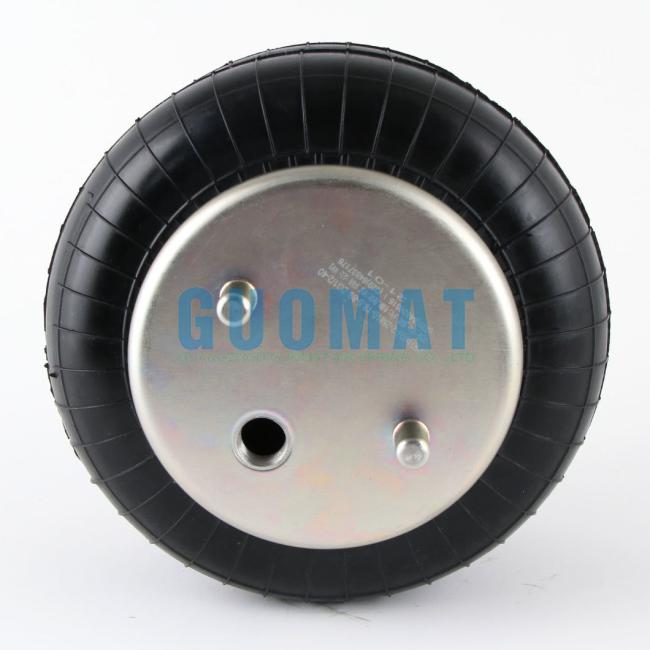

| Top Cover Plate Diameter | 160 mm |
| Bottom Cover Plate Diameter | 160 mm |
| Gas Hole / Air inlet | G1/4 / G3/4 |
| Top Cover Plate Screw (Nut) Tooth | 2XM10 |
| Bottom Cover Plate Screw (Nut) Tooth | 2XM8 |
| Screw Center Distance of Top Cover Plate | 89 mm |
| Screw Center Distance of Bottom Cover Plate | 89 mm |
| Distance Between Air Hole and Screw | 40 mm |
| Rubber Bellows MAX Diameter | 263 mm |
| The Working Stroke | 190 mm |
GUOMAT Air Spring Characteristics
- Features: Integrated casting process, strong airtight, leakproof, high surface density, burst resistance
- Installation: Dimensions are the same as the original model, direct replacement without modification, easy to install
- Quality: Using advanced technology improves product destruction, acid resistance, corrosion resistance, long service life
- Design: Designed for comfortable suspension with high compression strength and excellent sound isolation to ensure driving comfort and safety
Applications
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press
