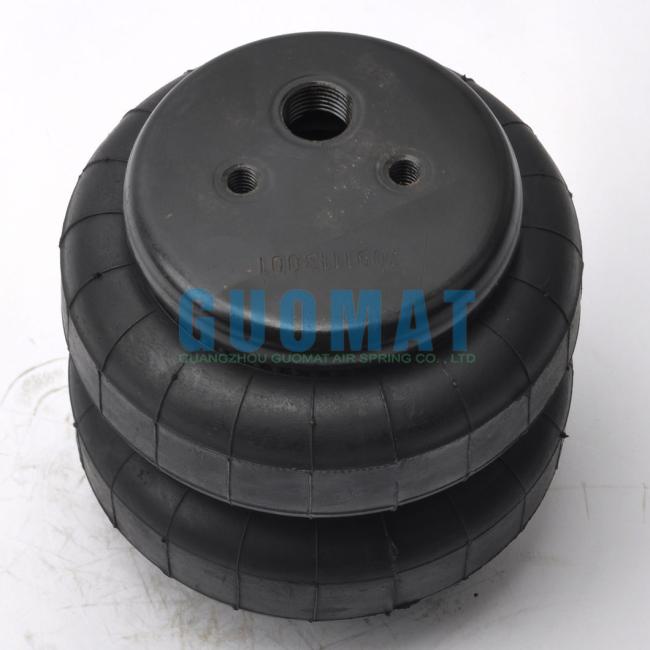

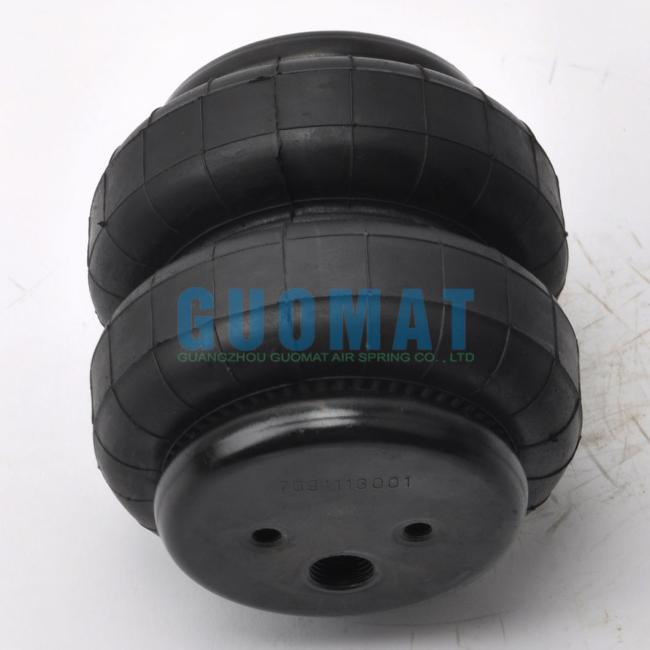

2B6X6 Air Spring Double Convoluted Air Rubber Bellow For Pneumatic Accessory
2B6X6 Air Spring Double Convoluted Air Rubber Bellow For Pneumatic Accessory
Product Description
The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air suspensions provide superior quality and performance. We offers a variety of air shock absorber types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Product Technical Data
| Type | single 1/2" port |
| Top Fastener | 3/8″-16 |
| Design height | 152mm |
| Deflection Height min | 65 mm |
| Deflection Height max | 175 mm |
| Loading cap. at 3.0bar | 2.88kn |
| Loading cap. at 7.0bar | 7.23kn |

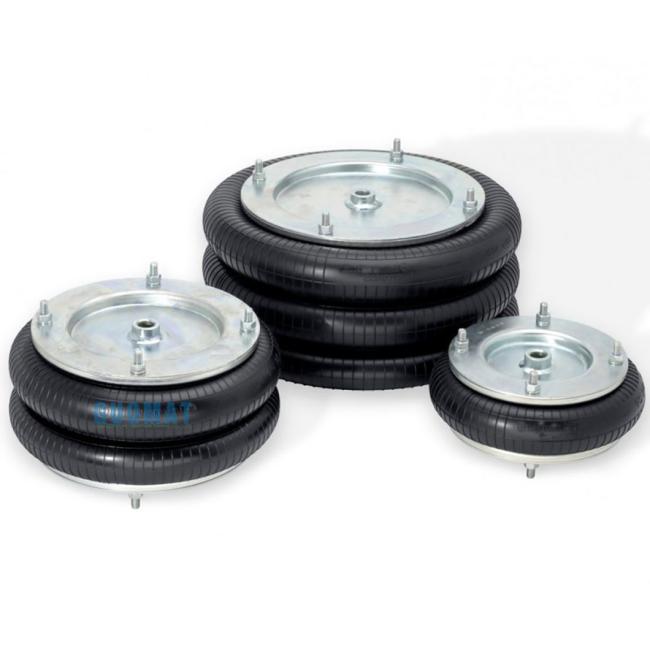

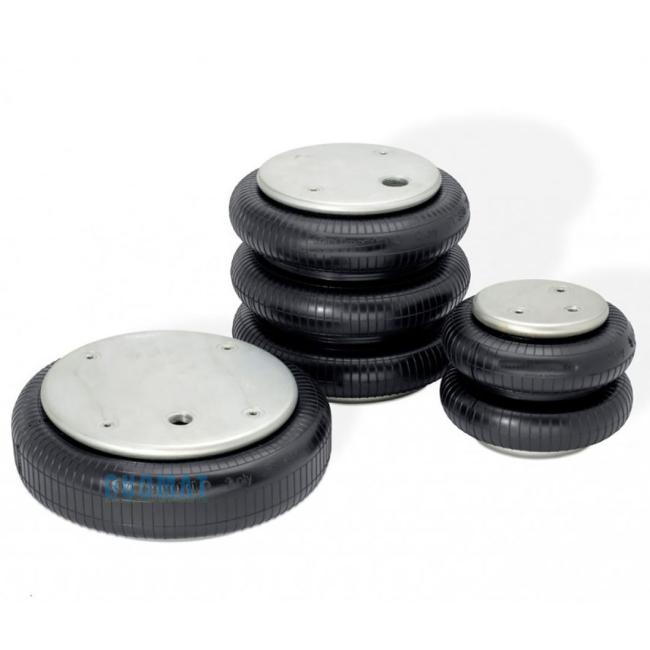

Double Convoluted Air Springs We Can Offer
| FD 40-10 CI | FD 70-13 CI | FD 110-15 CI | FD 120-17 CI | FD 120-20 CI | FD 200-19 CI | FD 200-22 CI |
| FD 200-25 CI | FD 330-22 CI | FD 330-30 CI | FD 530-22 CI | FD 530-35 CI | FD 960-22 CI | FD 1330-25 CI |
Product Applications
- Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
- Press equipment and part extraction, where air springs are used as actuators.
- Test equipment and motion simulators , where air susupensions are used as vibration isolators and to reduce shock and noise.
- Precision equipment and machinery, such as printing presses, where air shocks are used for vibration isolation and leveling.
- Textile machinery, where air bags are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
- Paper mill machinery, where air shock absorptions are used for suspension, levelling and vibration isolation.
- Cheese and dairy industry machines
