Lhf200/212-2 Double Convoluted Flange Air Suspension Spring For Pneumatic Applications
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
GUOMAT
Product Description
Lhf200/212-2 Double Convoluted Flange Air Suspension For Pneumatic Applications
Product Technical Data
| Design diameter: 200mm Maximum outer diameter: 280mm Front outer diameter: 208mm Design height: 224mm Stroke: 90mm-250mm Effective area: 314.2cm2 Bearing capacity: 1257KG-2199KG (0.4-0.7Mpa) |
Refer No.
- LHF200212-2
- LHF 200212-2
- LHF200/212-2
- LHF 200/212-2
Other Type Air Spring OEM Number
| 2B6-530 | 2B6-531 | FD 40-10 CI | SP2907 |
| 2B6-532 | 2B6-535 | FD 70-13 CI | SP2441 |
| 2B6-536 | 2B7-540 | FD 110-15 CI | SP2917 |
| 2B7-541 | 2B7-542 | FD 120-17 CI | SP1482 |
| 2B7-545 | 2B7-546 | FD 120-20 CI | SP1490 |
| 2B8-550 | 2B8-552 | FD 200-19 CI | SP1538 |
| 2B8-553 | 2B8-554 | FD 200-22 CI | SP1541 |
| 2B9-200 | 2B9-201 | FD 200-25 CI | SP2782NB |
| 2B9-204 | 2B9-205 | FD 330-22 CI | SP1556 |
| 2B9-216 | 2B9-250 | FD 330-30 CI | SP1557 |
| 2B9-251 | 2B9-253 | FD 530-22 CI | SP1408 |
| 2B12-309 | 2B12-218 | FD 530-35 CI | SP2342 |
| 2B12-425 | 2B12-429 | FD 960-22 CI | |
| 2B12-437 | 2B12-416 | FD 1330-25 CI | |
| 2B14-352 | 2B14-353 | ||
| 2B14-354 | 2B14-355 | ||
| 2B14-362 | 2B14-363 | ||
| 2B14-452 | 2B15-375 | ||
| 2B15-376 | 2B15-377 | ||
| 2B15-378 | 2B19-8433 | ||
| 2B22-8539 |
Support and Services
- The Suspension Air Springs product technical support and services include:
- Expert troubleshooting assistance to diagnose and resolve technical issues
- Guidance on proper installation and maintenance procedures
- Product documentation, including user manuals and technical specifications
- Product training and education for customers and service technicians
- Warranty and repair services, including replacement parts and exchange programs
- Customer support for urgent technical issues or service needs
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

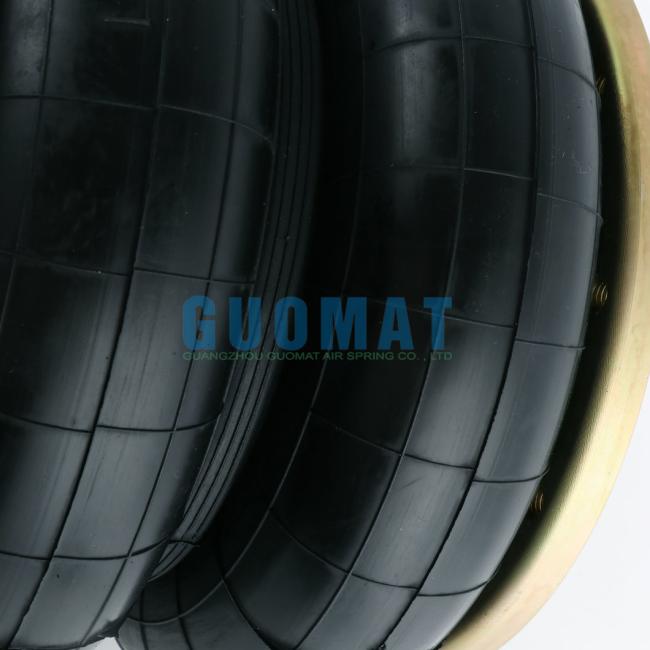

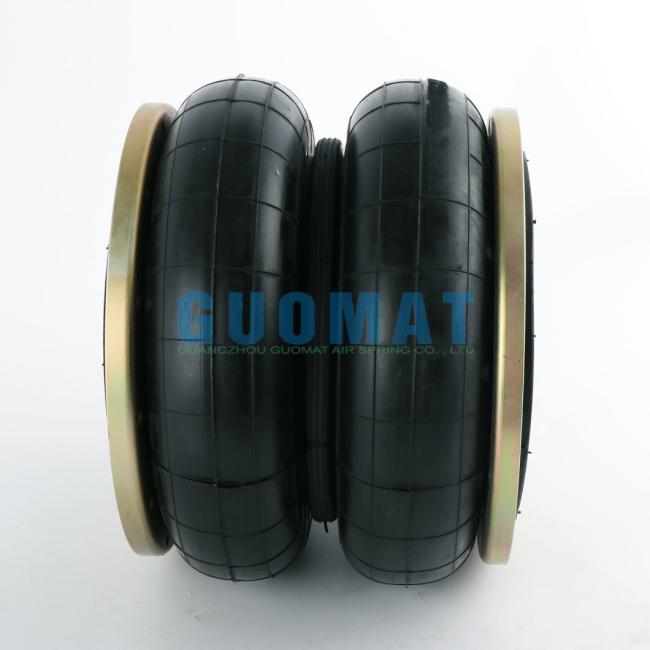

Pictures of Details
