FD120-17 Contitech Suspension Air Spring Double Convoluted Air Shock Absorber
FD120-17 Contitech Suspension Air Spring Double Convoluted Air Shock Absorber
GUOMAT Air Spring Introduction
Air springs are exceptionally robust, meticulously designed, and highly economical, making them ideal for a broad spectrum of motion control and vibration suppression applications. With their tried-and-tested architecture, fabric-reinforced neoprene or natural rubber diaphragms, and corrosion-resistant end fittings, these air actuators deliver unparalleled reliability and efficiency.
Functioning as vibration isolators, air springs significantly mitigate the adverse effects of oscillations. They offer the dual benefit of vibration dampening and load height adjustment, ensuring consistent vibration control across varying load capacities.
Product Details
| Nut/Blind nuts Nut length: 25 mm Number of screws on the top cover: 2 Number of bottom cover screws: 2 Top cover plate screw (nut) tooth: 2×3/8UNC Top cover screw center distance: 2.76 Inches Screw (nut) teeth of the bottom cover plate: 2×3/8UNC Center distance of bottom cover plate screw: 2.76 Inches |
| Air hole/air inlet/air connector Air hole/air inlet: 3/4 NPT |
| Cover Top cover diameter: 5.55 Inches Diameter of bottom cover: 5.55 Inches |
| Rubber bellows Maximum diameter of rubber bellows: 8.46 Inches Buffer block/buffer block Unbuffered block Waist ring/waist ring Strap ring: no strap ring |
GUOMAT 2B7x7P01
GUOMAT 2B7x7 P01
CONTITECH FD 120-17
CONTITECH FD120-17
| FD 40-10 CI | FD 70-13 CI |
| FD 110-15 CI | FD 120-17 CI |
| FD 200-19 CI | FD 200-22 CI |
| FD 200-25 CI | FD 330-22 CI |
| FD 330-30 CI | FD 530-22 CI |
| FD 530-35 CI | FD 960-22 CI |
| FD 1330-25 CI | FD 120-20 CI |
A: We will respond quickly to our customers within 24 hours.
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

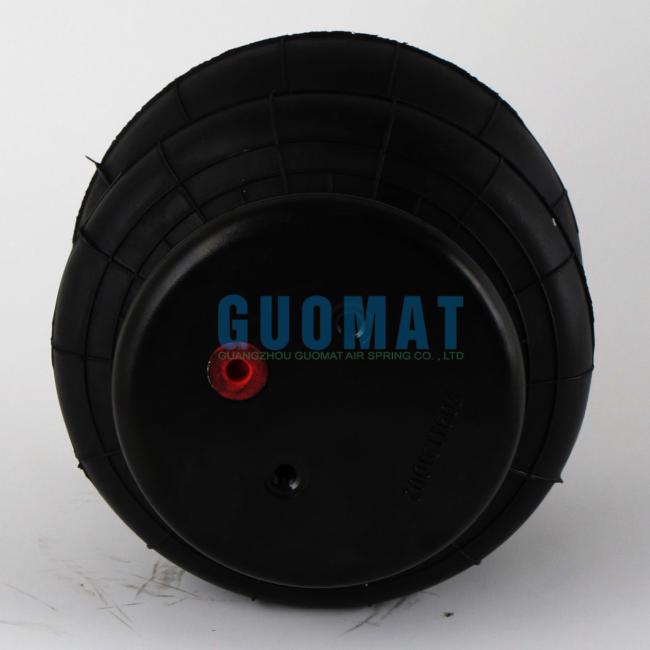

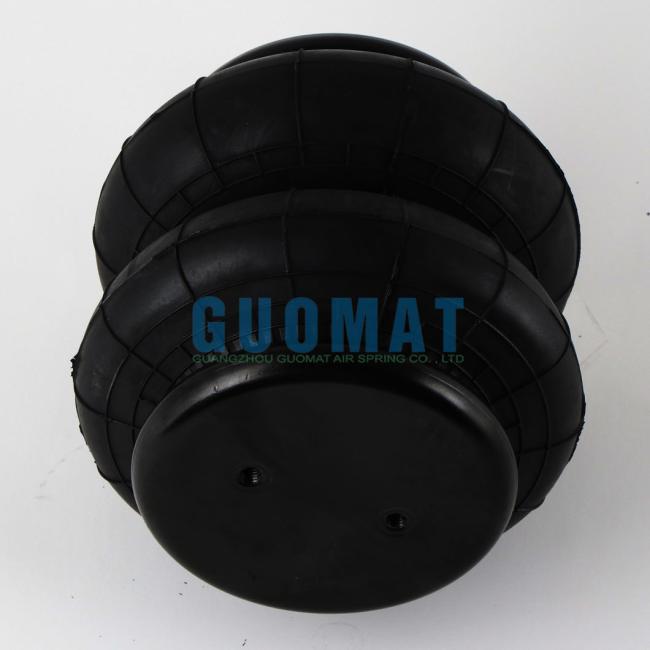

Pictures of Details

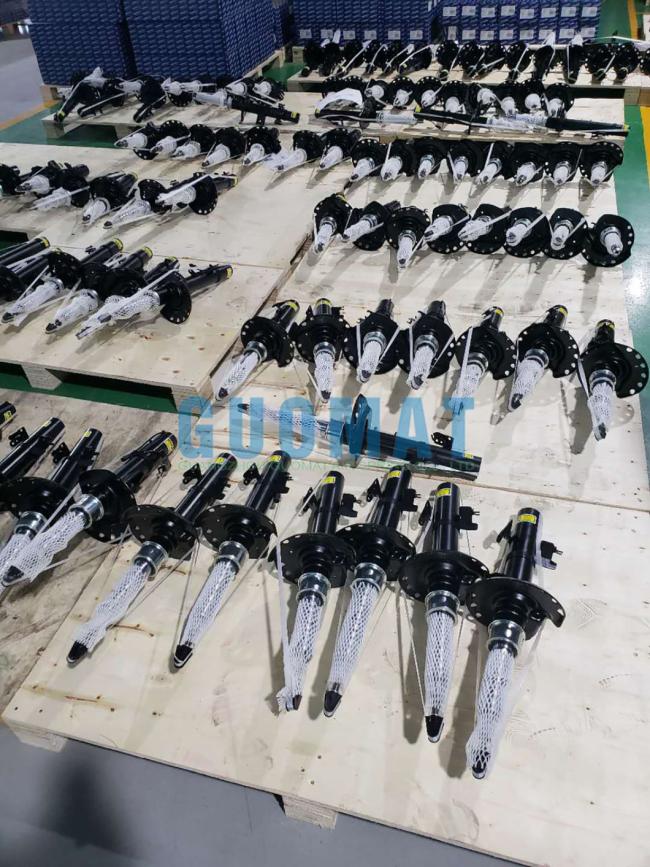

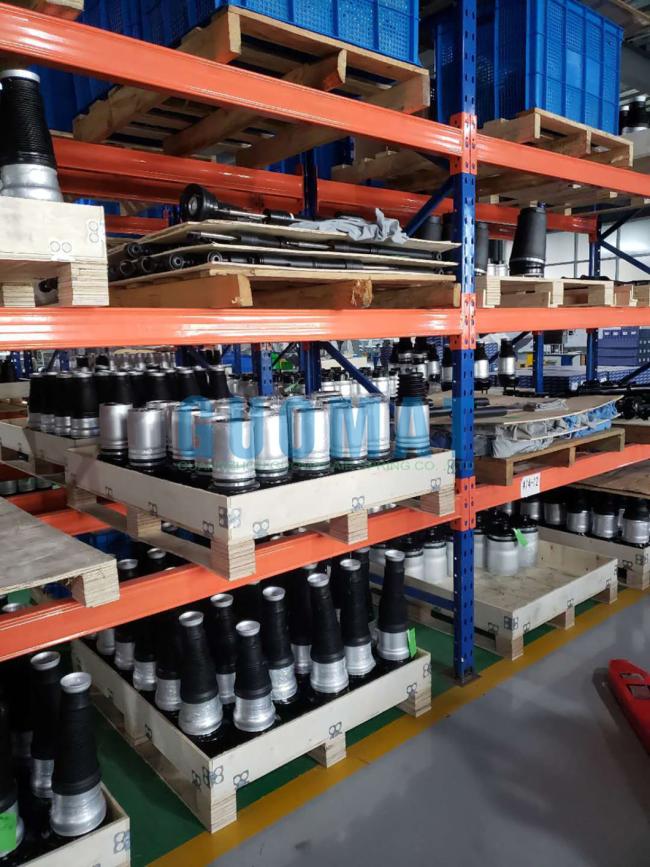

Warehouse Pictures
