Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow
Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow
Product Introduction
Air springs are meticulously designed to deliver exceptional durability, precise engineering, and cost-efficiency for an extensive range of actuation and vibration isolation applications. Crafted with a time-tested design, these springs feature fabric-reinforced neoprene or natural rubber flex members and corrosion-resistant end retainers, ensuring unparalleled quality and longevity. As vibration isolators, air springs play a crucial role in minimizing the detrimental effects of vibration. Their innovative design allows them to simultaneously isolate vibrations and adjust load height dynamically, providing consistent and reliable vibration isolation even under varying load conditions.
Product Specifications
|
Nut / Blind Nut Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC Screw Center Distance of Top Cover Plate : 44.5 mm Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC Screw Center Distance of Bottom Cover Plate : MIDDLE |
|
Gas Hole / Air inlet / Air Fitting Gas Hole / Air inlet : 1/2-14NPT Center Distance Between air inlet and Nut : 22 mm |
|
Cover Plate Top Cover Plate Diameter (Width): 113 mm Bottom Cover Plate Diameter (Width): 113 mm |
|
Rubber Bellows Rubber Bellows Natural Diameter : 144.5 mm Rubber Bellows MAX Diameter : 165 mm Design Height: 213mm Bellows # NO.: 2400 |
|
Bumper block / Buffer block Without Bumper Block |
|
Girdle Hoop / Girdle Ring With Girdle Hoop :Two Pieces of Girdle Hoop |
We Can Supply Triple Convoluted Air Springs
| 3B12-304 | 3B12-305 | FT 330-29 CI | SP2910 |
| 3B14-351 | 3B14-353 | FT 430-32 CI | SP2895 |
| 3B14-354 | 3B15-375 | FT 530-32 CI | SP2923 |
| 3B15-376 | 3B15-377 | FT 530-35 CI | SP2861 |
| 3B15-378 | FT 960-34 CI | SP2863 | |
| FT 1330-35 CI | SP1539 | ||
| SP1542 | |||
| SP1558 | |||
| SP2141 |
Support And Services
- Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
- We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
- Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

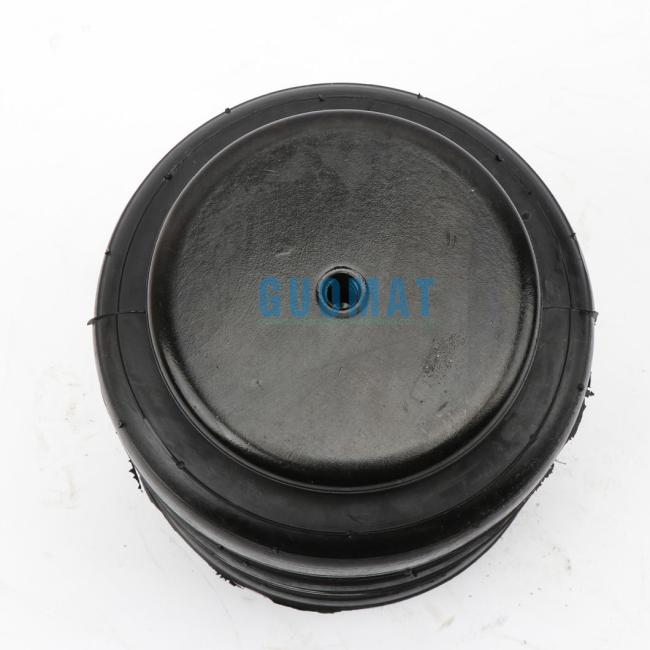

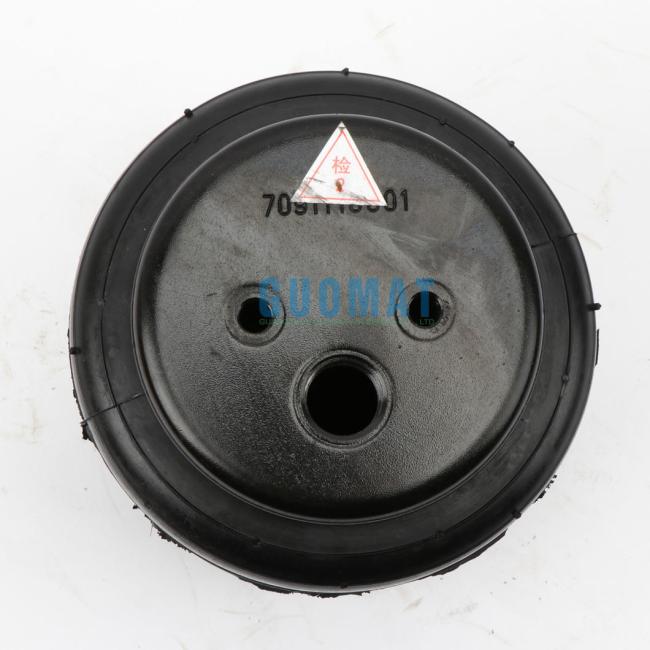

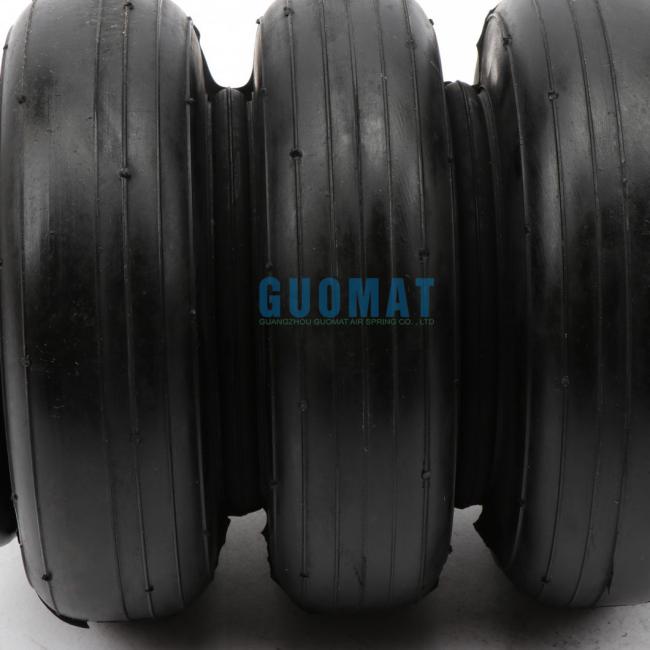

Real Photos
