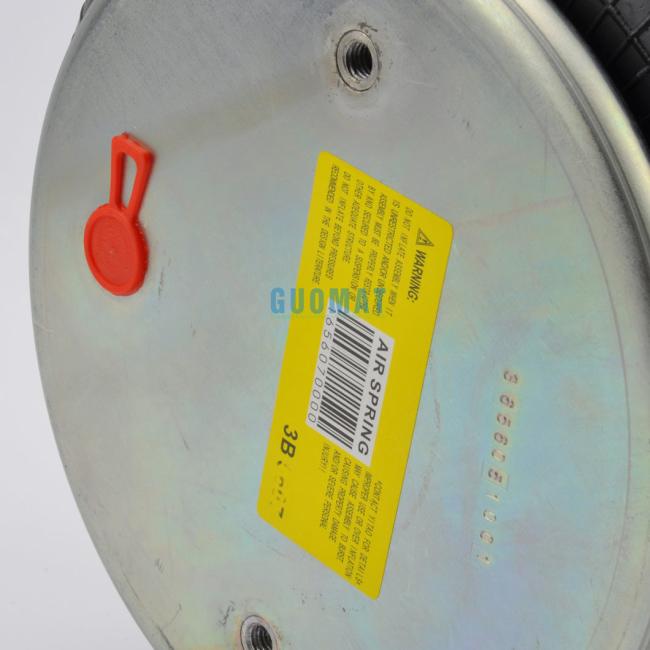

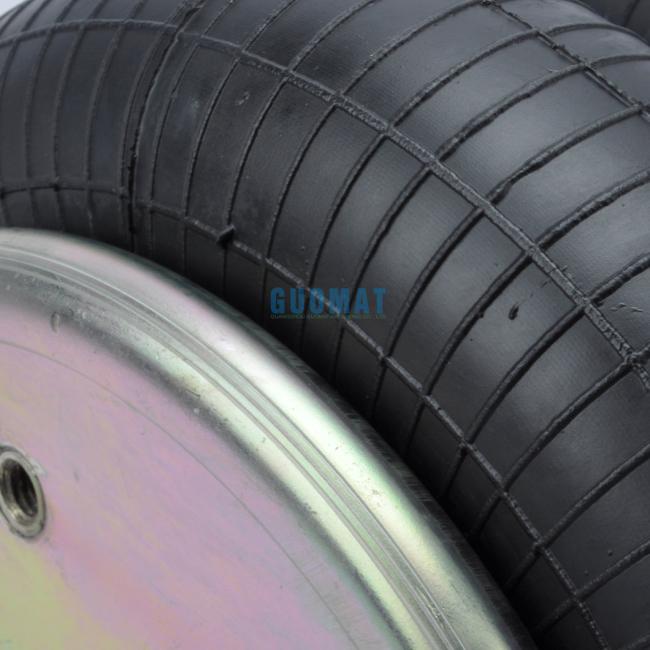

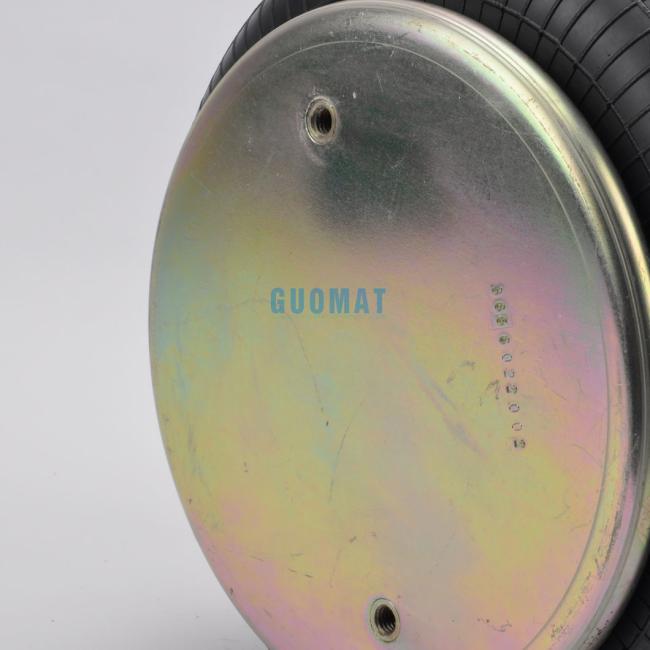

Contitech Air Spring FT330-29 432 Goodyear 3B12-301 Industrial Air Springs 578933100
Contitech Air Spring FT330-29 432 Goodyear 3B12-301 Industrial Air Springs 578933100
CONTITECH FT 330-29 Cross others OEM
| BELLOW Numbers | COMPLETE NO. | COMPLETE Numbers |
| AIRKRAFT 116008 | AIRKRAFT 115033 | AIRKRAFT 115027 |
| Fire stone Air Spring FLEX 38R/38D | CONTITECH FT 330-29 773 | CONTITECH FT 330-29 430 |
| Fire stone Air Spring 095.0047 | Fire stone Air Spring W01-358-8013 | FT 330-29 498 |
| GOODYEAR FLEX 556 3 3 8334 | GOODYEAR 3B12-305 | FT 330-29 503 |
| 578 93 3 100 | AIRKRAFT 115035 | FT 330-29 702 |
| CONTITECH FT 330-29 432 | Fire stone Air Spring W01 358 8006 | |
| Fire stone Air Spring W01-358-8010 | W01 358 8030 | |
| GOODYEAR 3B12-301 | GOODYEAR 3B12-304 |
3B8010 Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
