Guomat Air Spring 3B6617 Triple Convoluted Air Spring Rubber Bellow NO. 3B300
Guomat Air Spring 3B6617 Triple Convoluted Air Spring Rubber Bellow NO. 3B300
3B6617 Technical Parameters
| Nut / Blind Nut | |

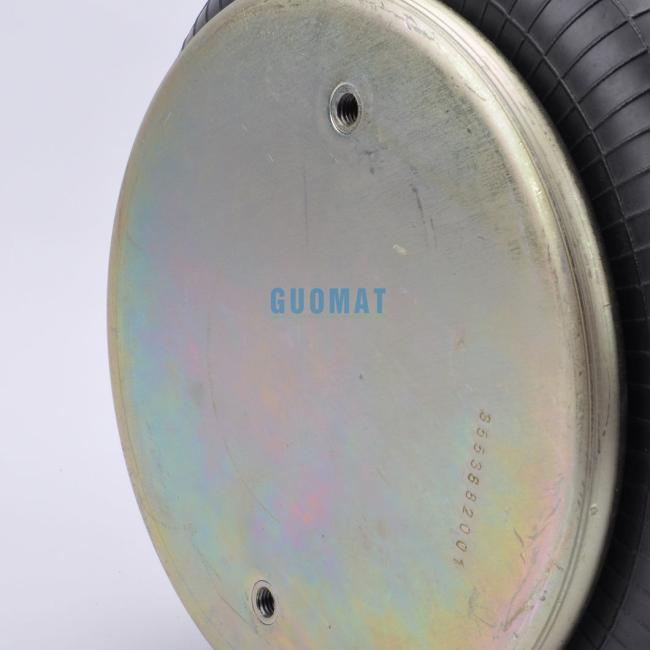

| Top Cover Plate Screw (Nut) Tooth | 2pcsXM10-1.5 |
| Screw Center Distance of Top Cover Plate | 157.5mm |
| Bottom Cover Plate Screw (Nut) Tooth | 2pcsXM10-1.5 |
| Screw Center Distance of Bottom Cover Plate | 157.5mm |
| Gas Hole / Air inlet / Air Fitting | |
| Gas Hole / Air inlet | 1/4NPTF |
| Cover Plate | |
| Top Cover Plate Diameter | 231 mm |
| Bottom Cover Plate Diameter | 231 mm |

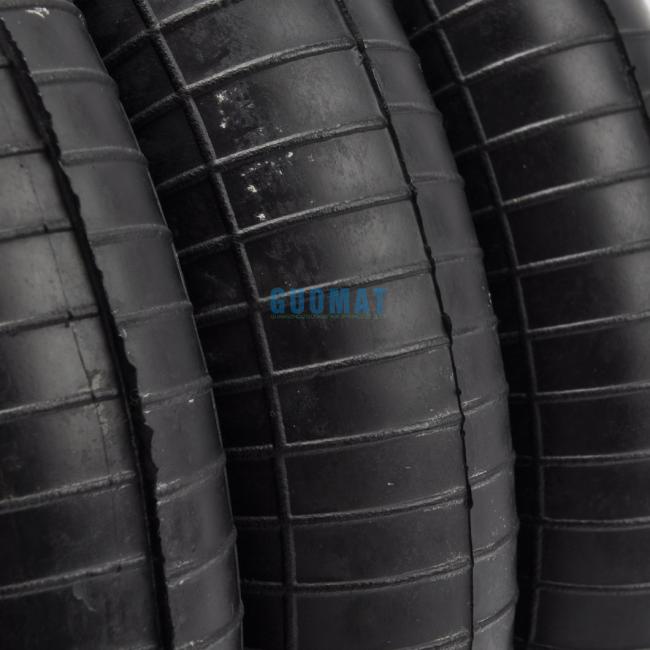

| Rubber Bellows | |
| Rubber Bellows MAX Diameter | 330 mm |
| Rubber Bellows Natural Diameter | 300 mm |
| The Working Stroke | MAX 460 mm to MIN 130 mm |
| Maximum Height | 460 mm |
| Minimum Height | 130 mm |
| Compression Height | 330 mm |
CONTITECH FT 330-29 Cross others OEM
| BELLOW Numbers | COMPLETE NO. | COMPLETE Numbers |
| AIRKRAFT 116008 | AIRKRAFT 115033 | AIRKRAFT 115027 |
| FIRE STONE Air Spring FLEX 38R/38D | CONTITECH FT 330-29 773 | CONTITECH FT 330-29 430 |
| FIRE STONE Air Spring 095.0047 |
FIRE STONE Air Spring W01-358-8013 |
FT 330-29 498 |
| GOODYEAR FLEX 556 3 3 8334 | GOODYEAR 3B12-305 | FT 330-29 503 |
| 578 93 3 100 | AIRKRAFT 115035 | FT 330-29 702 |
| CONTITECH FT 330-29 432 |
FIRE STONE Air Spring W01 358 8006 |
|
|
FIRE STONE Air Spring W01-358-8010 |
W01 358 8030 | |
| GOODYEAR 3B12-301 | GOODYEAR 3B12-304 |
Product Applications
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press
