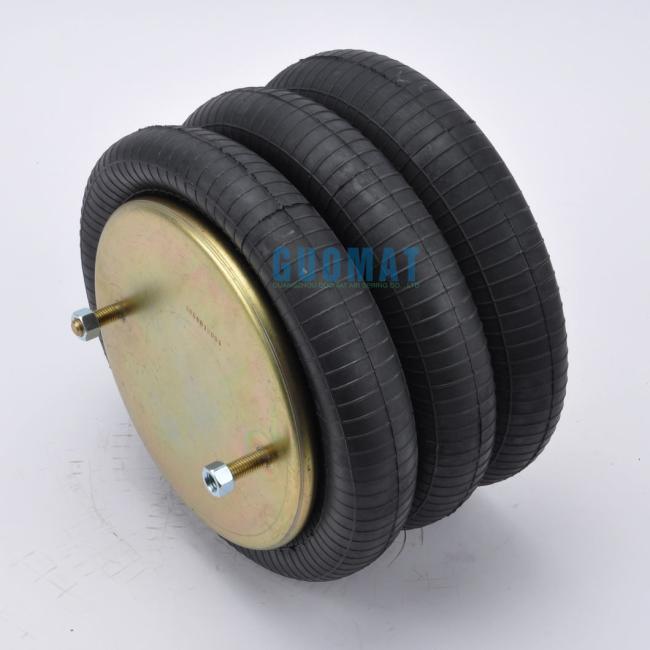

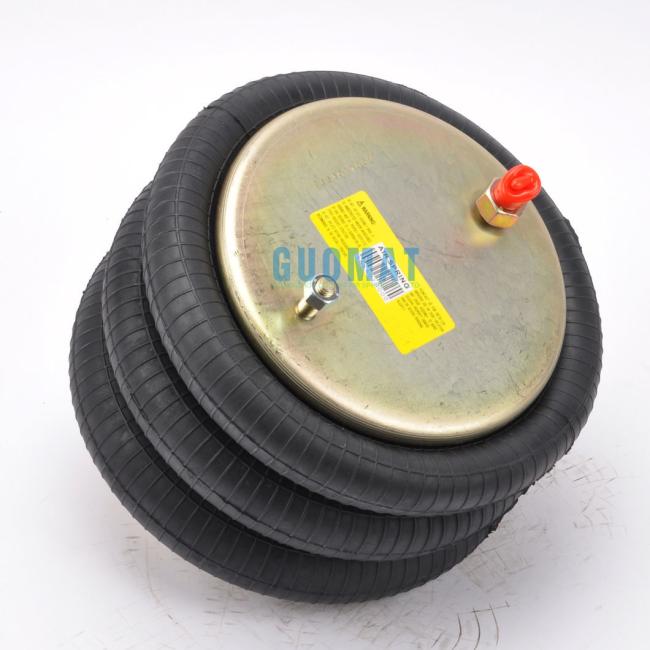

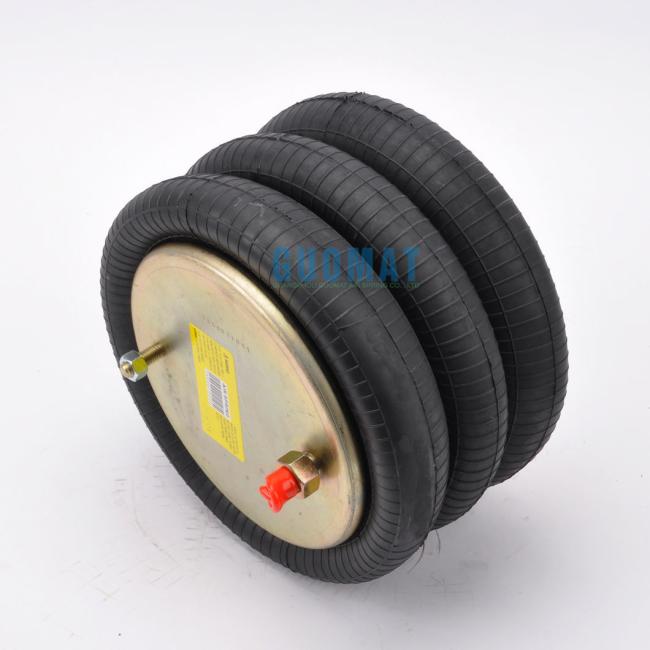

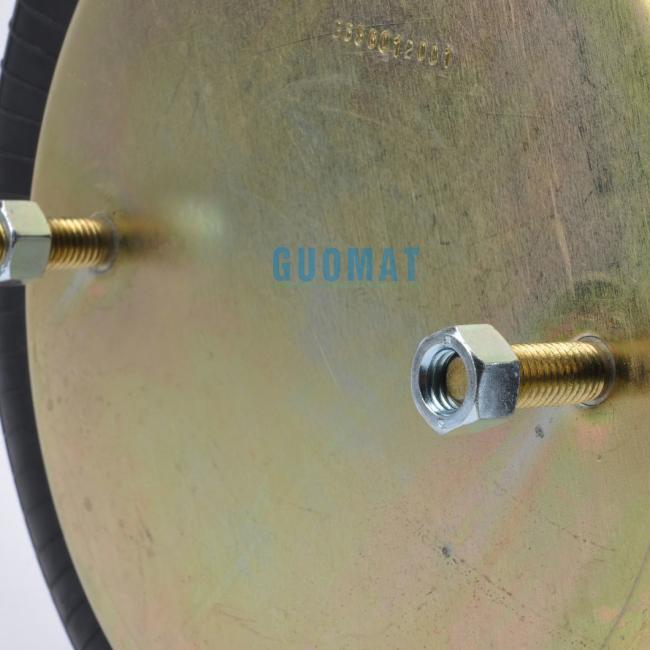

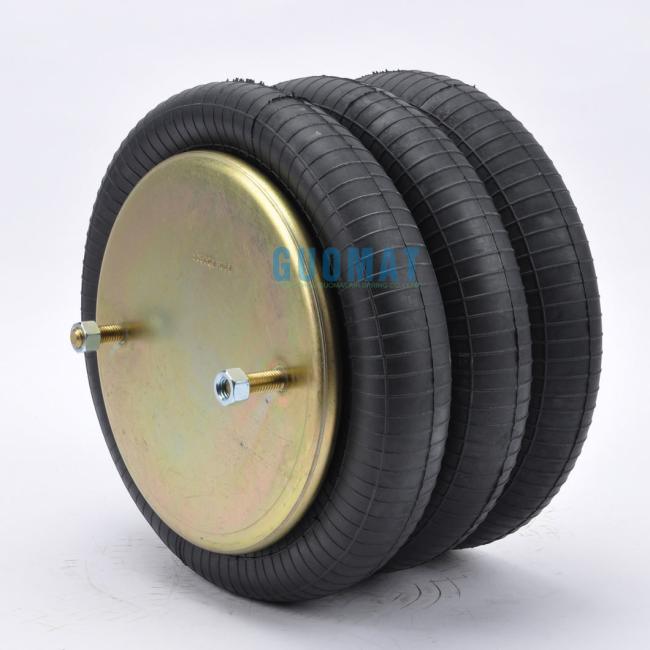

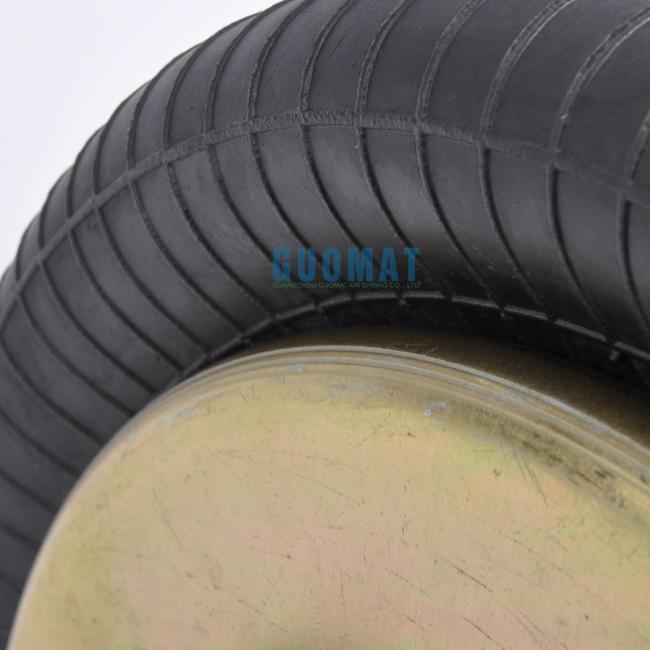

Contitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine Isolation
Contitech Air Bellows FT 330-29 520 Air Ride Suspension For Machine Isolation
Product Details
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | 157.5 mm |
| Bottom Plate Diameter | 231 mm |
| Bottom Plate Hole Quantity | 1 |
| Bottom Plate Type | Steel |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | 157.5 mm |
| Top Plate Diameter | 231 mm |
| Top Plate Hole Quantity | 2 |
| Top Plate Type | Steel |
| Bellow Maximum Diameter | 330 mm |
| Expanded Height | 460 mm |
| Compressed Height | 117 mm |
| Bellows Structure | Triple Convoluted |
| Nut/Blind Nuts Type | 3/8-16UNC |
| Air Inlet | 1/4 NPTF |
Goodyear Triple Bellow Air Spring
|
Contitech FT 330-29 520, FT330-29 520, FT33029 520 FT330 29 520, FT 33029 520, FT 330 29 520
Firestone W01-358-7996, W01 358 7996, W013587996 WO1-358-7996, WO1 358 7996, WO13587996 W01-358-7938, W01 358 7938, W013587938 WO1-358-7938, WO1 358 7938, WO13587938
Goodyear 3B12-335, 3B 12-335, 3B12335 3B12 335, 3B 12335, 3B 12 335, 578933100
Triangle 6334, 4520
Granning/Tuthill 8221 |
The Structure of GUOAMT Air Spring
1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.
Triple Convoluted Air Actuator OEM Number
| 3B12-304 | 3B12-305 | FT 330-29 CI | SP2910 |
| 3B14-351 | 3B14-353 | FT 430-32 CI | SP2895 |
| 3B14-354 | 3B15-375 | FT 530-32 CI | SP2923 |
| 3B15-376 | 3B15-377 | FT 530-35 CI | SP2861 |
| 3B15-378 | FT 960-34 CI | SP2863 | |
| FT 1330-35 CI | SP1539 | ||
| SP1542 | |||
| SP1558 | |||
| SP2141 |
