Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment

Price Negotiable

Price: Negotiable

MOQ: 5

Delivery Time: 5-8 Working Days

Brand: GUOMAT

Product Description

Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment

Product Overview

Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.

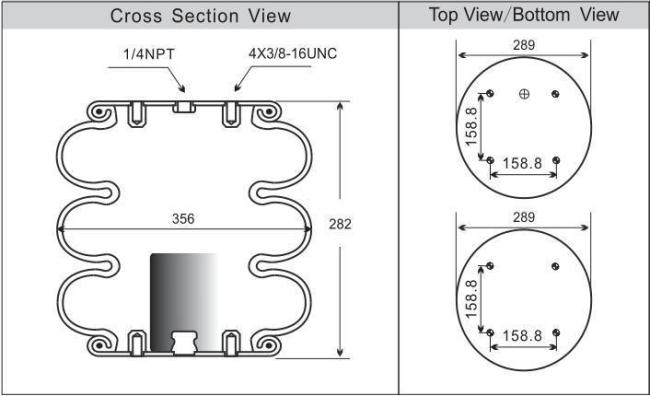

Air Spring Technical Data

♦Cover Plate

Top Cover Plate Diameter:289mm

Bottom Cover Plate Diameter: 289 mm

♦Gas Hole/Air Inlet/Air Fitting

Gas Hole/Air Inlet:1/4NPT

♦Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth :4X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth :4X3/8-16UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Screw Center Distance of Bottom Cover Plate : 158.8 mm

♦Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

The Working Stroke : 282mm

Cross References

Fire-stone	W01-358-7808, W01 358 7808, W013587808 WO1-358-7808, WO1 358 7808, WO13587808 W01-358-7313, W01 358 7313, W013587313 WO1-358-7313, WO1 358 7313, WO13587313
Contitech	FD 330-22 364, FD 33022 364, FD 330 22 364 FD330-22 364, FD33022 364, FD330 22 364
Goodyear	2B12-313, 2B12313, 2B12 313 2B12-459, 2B12459, 2B12 459, 578933350
Triangle	6319, 4336
Airkraft	11506, 3B-356, 3B356, 3B 356
Brake & Wheel	M3533
EI Ride	8030170
Dayton	3547808
Leland	Sc2031
Navistar	554801C1
Hendrickson	S13157
Ridewell	1003587808C
SAF Holland	57007808
Truck stell	63640
Peerless	55000030
