AIRSUSTECH Triple Convoluted Air Spring Replace For Firestone W01-358-8008
Price:
USD69.9-79.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
AIRSUSTECH Triple Convoluted Air Spring Replace For Firestone W01-358-8008
OEM NO.
|
Contitech
|
FT 330-29 431
|
| Contitech | FT 330 29 431 |
| Contitech | FT330-29 431 |
| Contitech | FT330 29 431 |
| Contitech | FT33029431 |
| Firestone | W01-358-8008 |
| Firestone | W01 358 8008 |
| Firestone | W013588008 |
|
Goodyear
|
3B12-300
|
| Goodyear |
3B12 300
|
| Goodyear |
3B12300
|
|
Triangle
|
6334 |
|
Triangle
|
4431 |
|
Watson&chalin
|
AS-0019
|
|
Watson&chalin
|
AS 0019
|
| Watson&chalin | AS0019 |
| Daylon | 3548008 |
| Leland | Sc2130 |
| Ridewell | 1003588008C |
| Silent Drive | AS-0019 |
| Silent Drive | AS0019 |
| Silent Drive | AS 0019 |
| Hendrickson | S11637 |
| Hendrickson | NS50 1690 |
|
EZ RIDE
|
8030155
|
|
SAF Holland
|
57008008
|
|
Tuthill
|
6392
|
|
Histeer/Langes
|

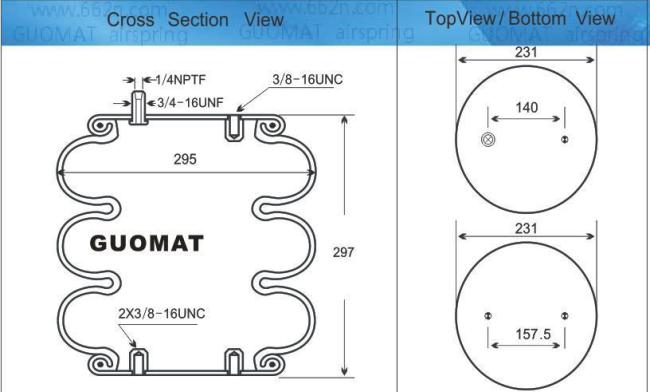

Specifications and Detailed Technical Parameters: 3B8008
- Nut/blind nut
Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the Top cover plate: 140 mm
The screw center distance of the bottom cover plate: 157.5 mm
- Air hole/air inlet/air fittings
- Rubber Bellows
Diameter (width) of the bottom cover plate: 231 mm
- Bumper block/bumper block
- Belt loop/Belt loop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |
Application
Because of the air spring can carry on the reasonable adjustment of scheduling and vibration amplitude value and reasonable control of shock load, air spring is getting more and more widely used in transport, paper machine, elevator, medium of punching machine, vibration, vibration sieve, air hammer, vibration test machine, forging machinery which need scheduling of manipulation or shock protection facilities or equipment.

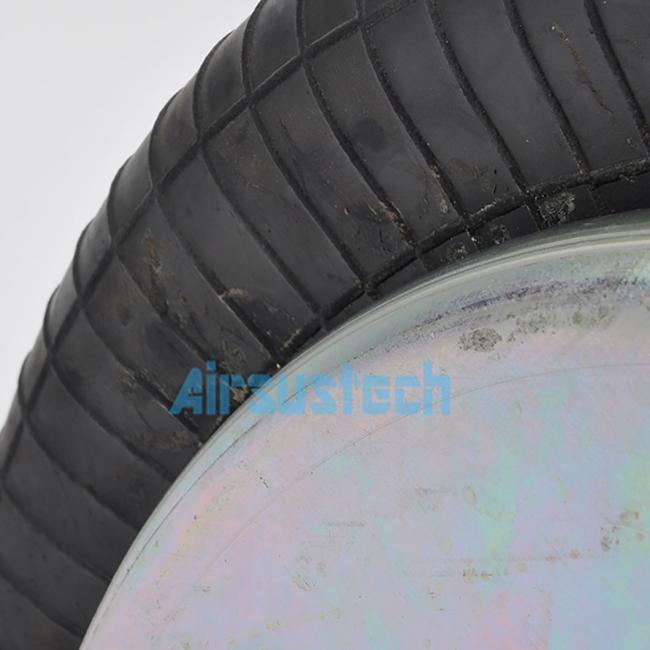

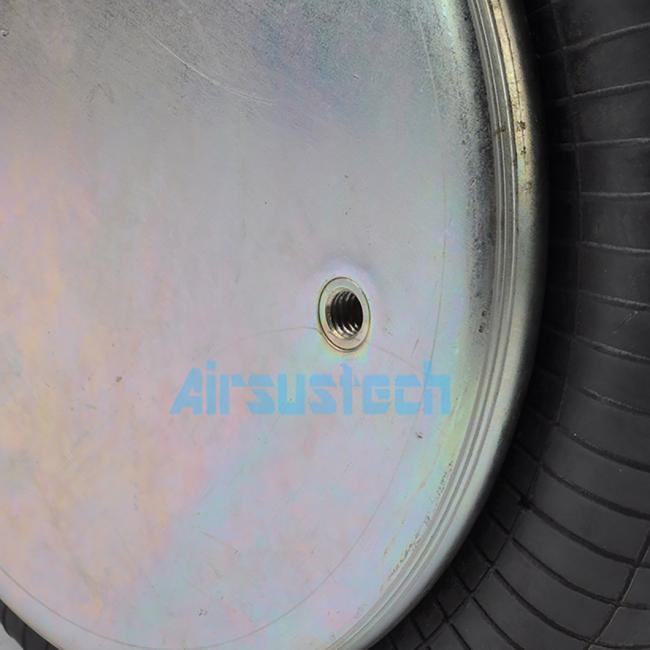

The related picture of 3B8008
