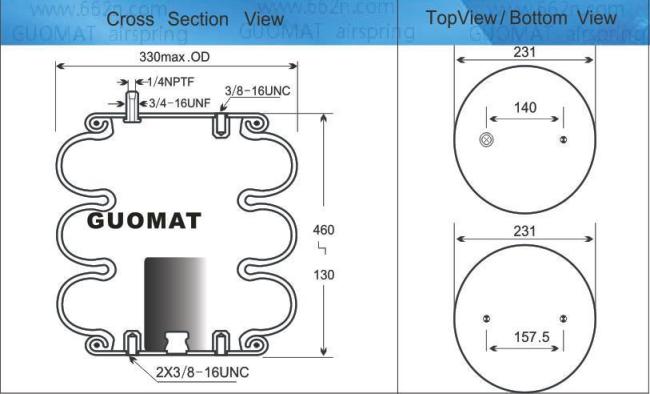

3B7944 Air Spring Details
| Minimum Height |
4.90 in. |
| Maximum Height | 18.90 in. |
| Full Stroke | 13.10 in. |
| Rubber Bellow Max. Dia. | 12.80 in. |
| Top Plate Width | 9.00 in. |
| Screw Type of Top Cover Plate | 1×3/8-16UNC |
| Bottom Plate Width | 9.00 in. |
| Screw Type of Bottom Cover Plate | 2×3/8-16UNC |
| Center to Center Distance | 5.50 in. |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |
Product Part Number
|
Contitech Number
|
FT 330-29 546
|
| Contitech Number | FT 330 29 546 |
| Contitech Number | FT330-29 546 |
| Contitech Number | FT330 29 546 |
| Contitech Number | FT33029546 |
| Contitech Number |
64572
|
| Firestone Number | W01-358-7994 |
| Firestone Number |
W01 358 7994 |
| Firestone Number | W013587994 |
|
Goodyear Number
|
3B12-328
|
| Goodyear Number |
3B12 328
|
| Goodyear Number |
3B12328
|
|
Triangle Number
|
4546 |
|
Triangle Number
|
6364 |
|
Watson&chalin Number
|
AS-0019-F
|
|
Watson&chalin Number
|
AS 0019 F
|
| Watson&chalin Number | AS0019F |
|
Euolid/meritor After market Number
|
E-FS7994
|
|
Euolid/meritor After market Number
|
E FS7994
|
| Euolid/meritor After market Number | EFS7994 |
Air Spring Function
The air spring has nonlinear characteristics, and its stiffness changes with the load, so its natural frequency remains almost unchanged under any load, so the spring device has almost constant characteristics.
1.it has good high-frequency vibration absorption and sound insulation performance
2.it can simultaneously Withstand axial and radial loads.
3.Different bearing capacities can be obtained by adjusting the internal pressure.
Therefore, it can meet the needs of various loads.

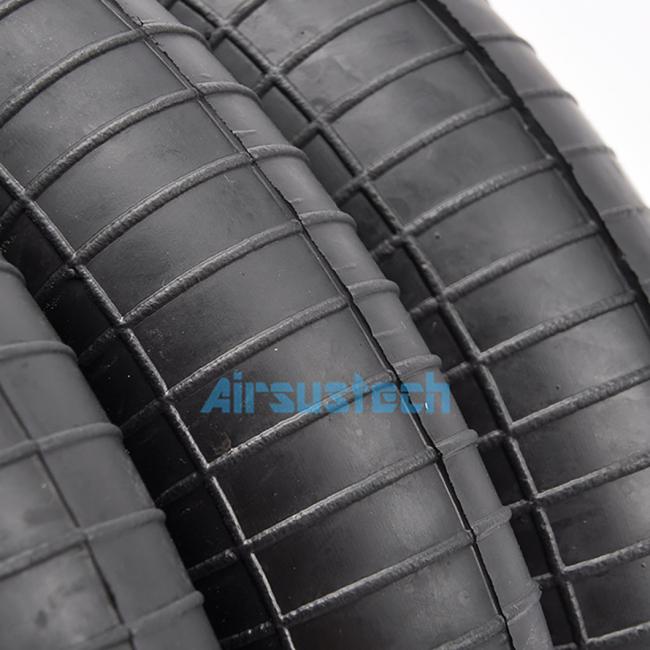

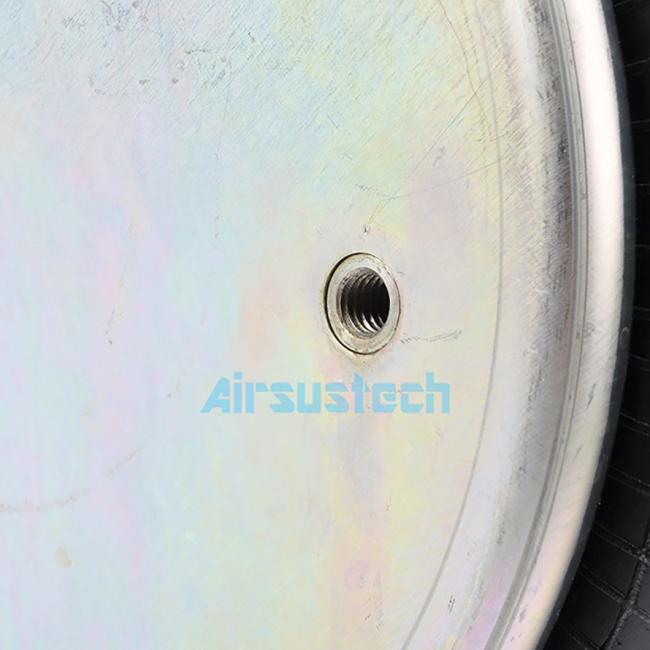

3B7994 Real Pictures
