W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches
W01-358-8006 Pneumatic Bellow by Firestone Air Spring Full Stroke 13.2 Inches
Detailed Technical Parameters: 3B8006
|

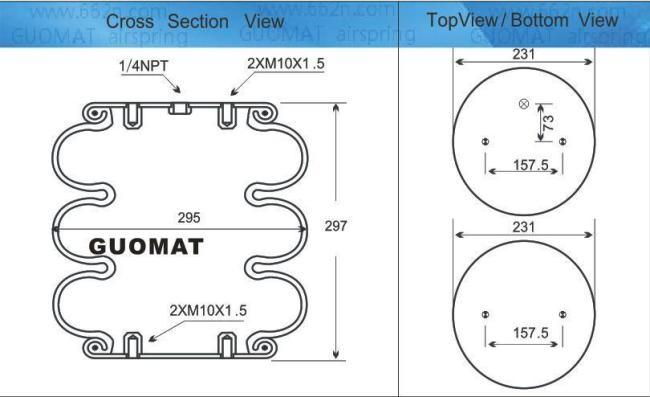

The top/bottom cover plate screw: 2×M10×1.5 The screw center distance of the Top cover plate: 157.5mm The screw center distance of the bottom cover plate: 157.5 mm Screw And Gas Hole Distance of Top Cover Plate:73mm |
|
Top plate diameter (width): 231 mm Diameter (width) of the bottom cover plate: 231 mm Rubber Bellows MAX Diameter: 295mm The Working Stroke: 297mm |
|
Bumper block/bumper block Without bumper block |
|
Belt loop/Belt loop With belt loop: Two belt loop |
|
Min. pressure: 0 bar Return force to min.height: ≤400N Overall weight with clamped plates: 5.9kg |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 | |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 | |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 | |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 | |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 | |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 | |
Refer Number
|
FIRE STONE: W01 358 8006 |
GOODYEAR: 3B12-301 |
| FIRE STONE : W01-358-8006 | GOODYEAR: 3B12 301 |
| FIRE STONE : W013588006 | GOODYEAR: 3B12301 |
| CONTITECH FT: 330 29 430 | Goodyear: 578 93 3 100 |
| CONTITECH FT: 33029430 | Goodyear: 578933100 |
| CONTITECH FT: 330-29 430 | Goodyear: 578-93-3-100 |
| FIRE STONE: FLEX 38R/38D | WEFORMA WBD 500-E2 |
| BO SCH: 822419081 | WEFORMA WBD 500 E2 |
GUOMAT Air Spring Advantages
Compared with spring, air spring shock absorbers have the following advantages
- Excellent shock absorption
- Stable shock absorption
- Precise height control
- Wide range of sizes
- Extend equipment life
- Effectively reduce noise
- Air spring shock absorbers are widely used

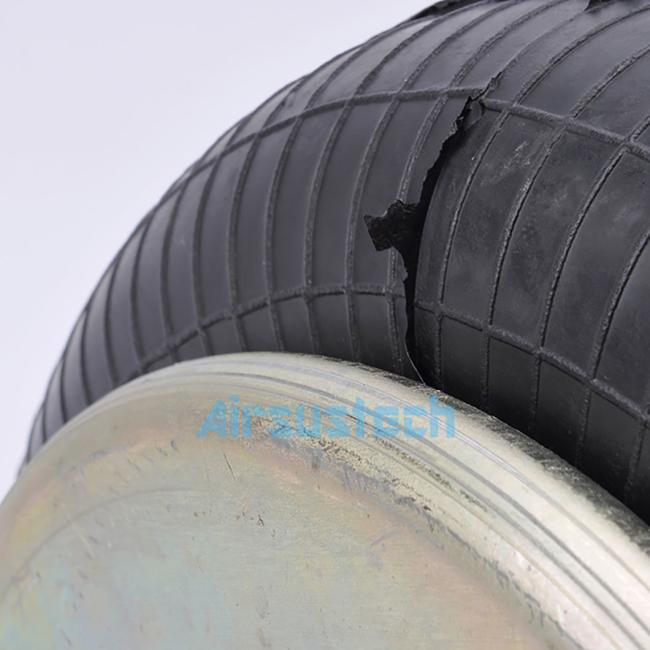

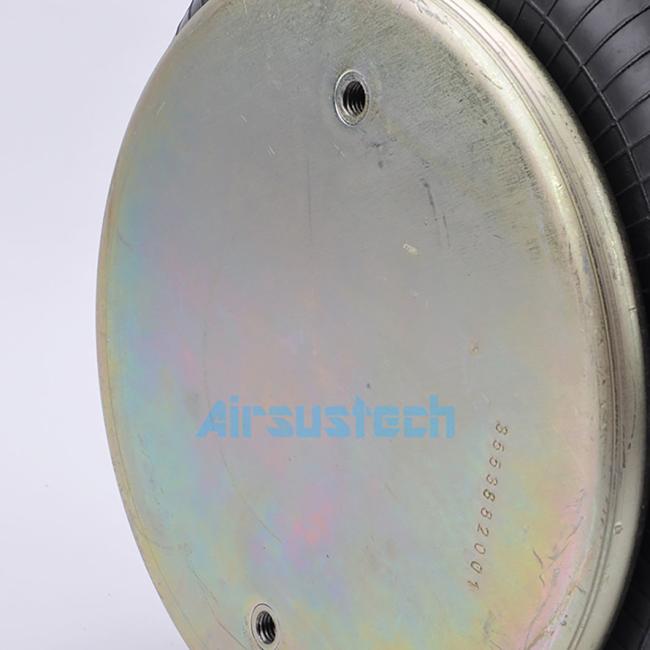

The Related Picture of 3B8006
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
