Product Introduction
Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
Specifications: F-240-3
| Model Size | Height H(mm) | Common Maximum Travel(mm) | Compression Max. Outside Diameter (mm) | Standard height, approximate value at 0.49MPA internal pressure | Maximum Internal Pressure (MPA) | Internal Pressure Failure(MPA) | ||||||
| Design Height | Max. Height | Min Height | Effective Area(cm2) | Volume(L) | Load(KN) | Dynamic Spring Constant(n/mm) | Natural Vibration Frequency(Hz) | |||||
| S-240-4R | 206 | 316 | 111 | ±80 | 300 | 450 | 10.1 | 22.2 | 235 | 1.6 | 0.88 | 2.9-3.9 |
| S-240-3R | 152 | 232 | 82 | ±60 | 300 | 450 | 7.3 | 22.2 | 324 | 1.9 | 0.88 | 2.9-3.9 |
| S-240-2R | 98 | 148 | 53 | ±40 | 300 | 450 | 4.4 |
22.2 | 520 | 2.4 | 0.88 | 2.9-3.9 |
| S-240-1R | 72 | 110 | 40 | ±30 | 340 | 450 | 3.5 | 22.2 | 765 | 2.9 | 0.69 | 2.9-3.9 |
OEM Cross Reference
YOKOHAMA S-240-3R
YOKOHAMA S 240 3R
YOKOHAMA S2403R
Product Applications
- Mineral sample pulverizers
- Spin washing machines
- Expanded metal machine
- Concrete brick machine
- Rotating table with the air spring
- Crushing machine
- Concrete screening machine
- Carpet extraction machine
- Commercial laundry machines
- Coordinate measuring tables and machinery
- Centrifugal separators

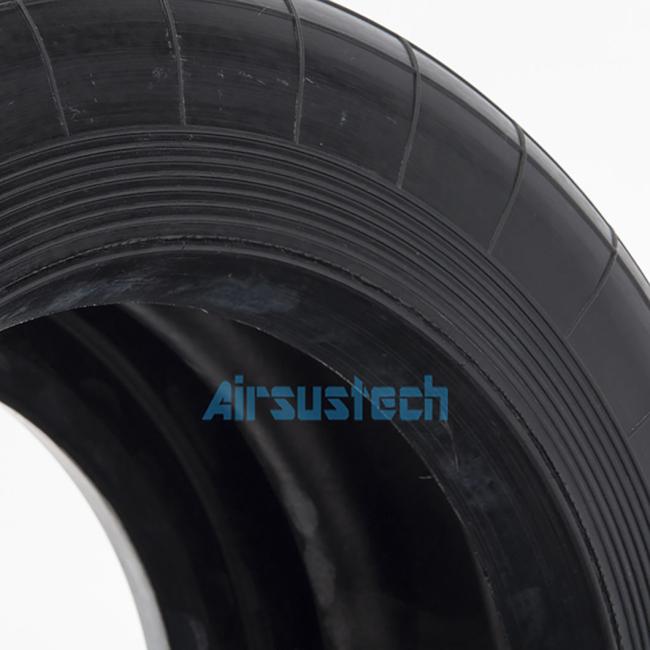

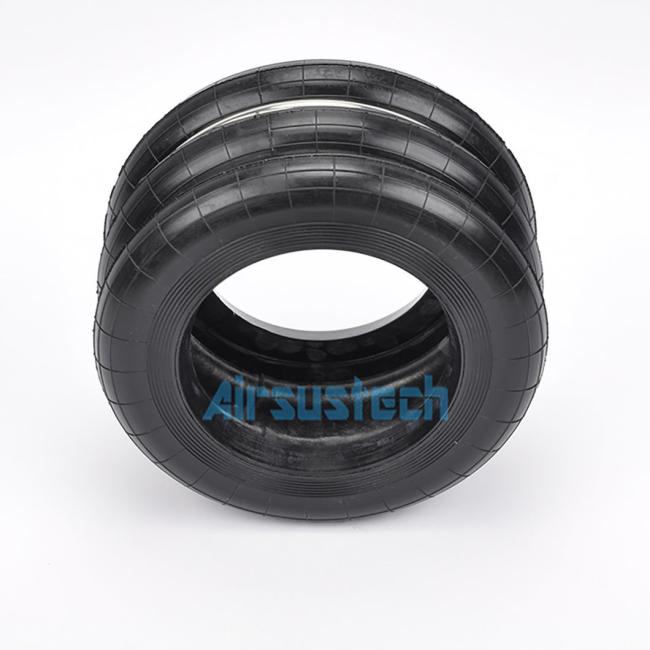

F-240-3 Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
