Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow
Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow
GUOMAT Air Spring Features
GUOMAT air springs come in single, double, or triple bellow designs and serve various roles in different suspensions and applications. You'll find GUOMAT air springs in a range of trucks, trailers, and on industrial sites. These air springs stand out for their ability to execute linear or angular movements with a much lower profile than traditional air cylinders. They are incredibly adaptable and serve a variety of functions in machinery used for pressing, tensioning, rolling, conveying, lifting, and packaging. Additionally, as vibration dampers, they effectively minimize the detrimental impact of vibration.
Product Specifications
|
Nut/blind nut Top plate screw (nut) teeth: 4×1/2-13UNC Bottom cover plate screw (nut) teeth: 4×1/2-13UNC Screw Center Distance: 158.8mm |
|
Air hole/air inlet/air fittings Air hole/air inlet: 1/4NPT Distance from air hole to screw: middle |
|
Rubber Bellows Top plate diameter (width): 289mm Diameter (width) of the bottom cover plate: 289mm Rubber Bellows MAX Diameter: 356mm Design Height: 9-13 inches / 229mm-330mm Maximum Height: 460 mm |
|
Bumper block/bumper block Without bumper block |
|
Belt loop/Belt loop With belt loop: Two belt loop |
Refer Number
| Firestone Bellows Number | 313C |
| Goodyear Part Number | 3B14-359 |
| Goodyear Bellows Number | 578-93-3-350 |
| Triangle Part Number | 4325 |
| Triangle Bellows Number | 6319 |
| Contitech Number | 64503, FT530-32325 |
| Contitech Bellows Number | FT 530-32 |
| Granning Number | 1014, 1476 |
| Hendrickson Number | S13041, S-13041 |
| IHC Number | 554803C1 |
| Loadguard Number | SC2032 |
| Neway Number | 57007818, 57007839 |
| Ridewell Number | 1003587818C, 1003587839C, S2685C |
| Watson & Chalin | AS-0025, AS0025, AS0033, AS-0033 |
| EZ Ride Number | 8030180 |
| UPC | 767555005590 |
| MPN | W01-358-7818 |
Product Applications
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packing
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device

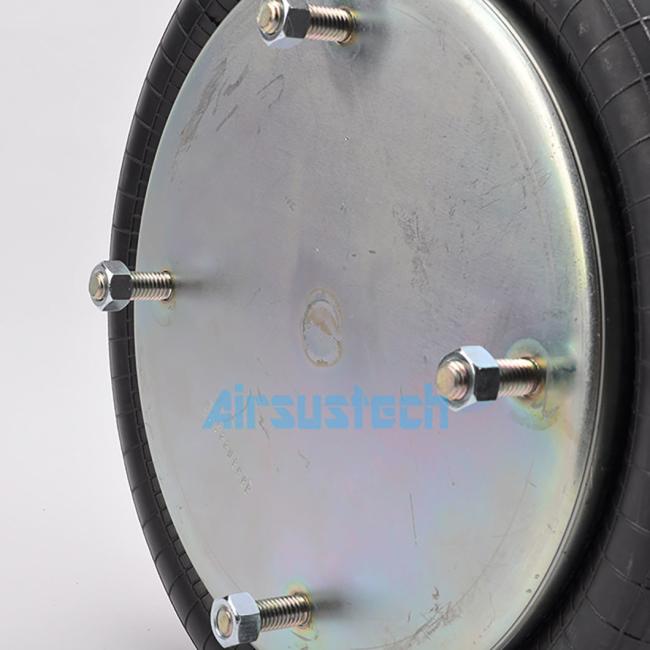

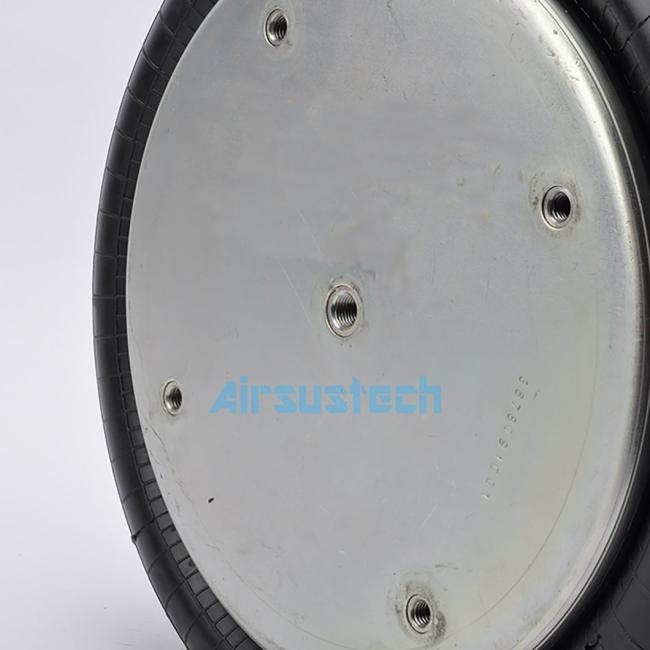

3B7800 Air Spring Images
