Product Introduction
The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Product Details
|
Nut/blind nut |
|
Top plate screw (nut) teeth: 2×3/8-16UNC The distance between the screw on the top plate: 70mm Screw (nut) teeth of the bottom cover plate: 3/8-16UNC |
|
Air hole/air inlet/air fittings |
|
Air hole/air inlet: 1/2NPT The distance between the screw and the air inlet: 33mm |
|
Cover plate |
|
The Diameter Of The Top Plate: 132 mm The Diameter Of The Bottom Cover: 132mm |
|
Bumper block/bumper block |
| Without bumper block |
|
Belt loop/Belt loop |
| With two pieces of belt loop |
We Can Supply Other Triple Convoluted Air Suspensions
| 3B12-304 | 3B12-305 | FT 330-29 CI | SP2910 |
| 3B14-351 | 3B14-353 | FT 430-32 CI | SP2895 |
| 3B14-354 | 3B15-375 | FT 530-32 CI | SP2923 |
| 3B15-376 | 3B15-377 | FT 530-35 CI | SP2861 |
| 3B15-378 | FT 960-34 CI | SP2863 | |
| FT 1330-35 CI | SP1539 | ||
| SP1542 | |||
| SP1558 | |||
| SP2141 |
Product Applications
- Vibratory conveyors
- Electronic equipment
- Compressors
- Conveyor loading points
- Textile looms
- Rotary shaft actuators
- Conveyor or transfer systems
- Vertical lift force for platforms and rotating tables
- Injection or ejection of parts in manufacturing equipment
- Scissor lifts
- Clutch and brake systems
- Amusement park rides
- Palletizers, label applicators in
- packaging equipment
- Bin-tilting devices
- Presses

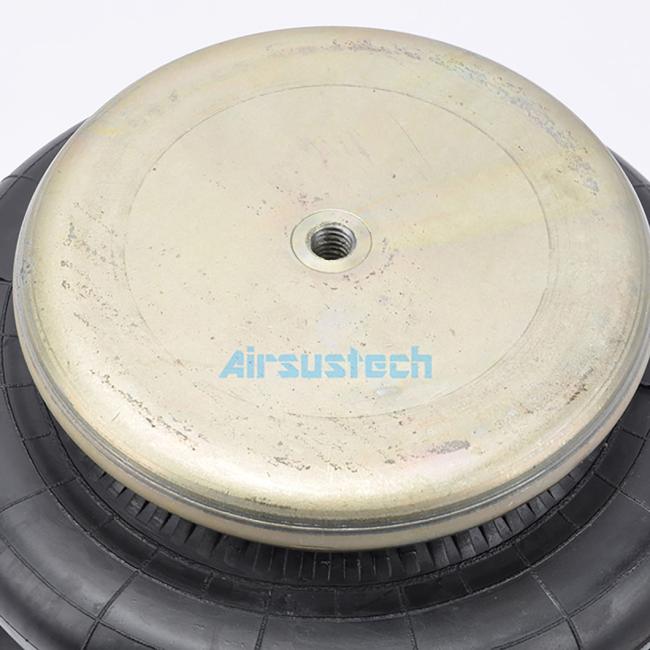

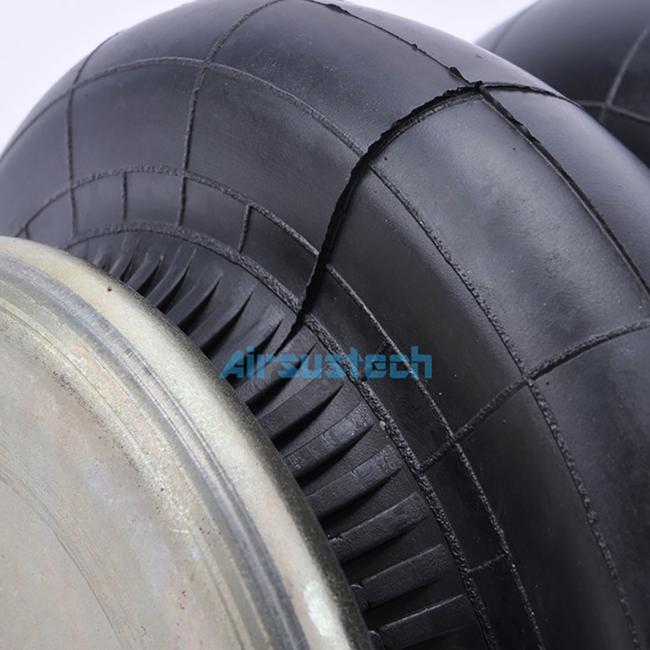

3B5180 Real Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
