Auto Parts 3B12-304 Goodyear Air Spring Cross W01-358-8013 Air Spring Triple Convoluted Air Bag FT330-29 Ci 1/4 NPT
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump
3B12-304 Goodyear Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Bellows type industrial air spring, triple rotation,
Effective area 330 square centimeters
29 cm maximum stroke,
Crimped bead plate
internal thread,
1/4 NPT, offset
Manufacturer: Goodyear
Compressed height
4.33"
Maximum expansion height
16.9"
The maximum diameter
12.8"
Maximum inflation pressure
120 psi
Maximum stroke
12.57"
Air inlet type
English
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Triple convolution
Weight: 13 pounds
3B12-304 Goodyear Cross others OEM
| BELLOW Numbers | COMPLETE NO. | COMPLETE Numbers |
| AIRKRAFT 116008 | AIRKRAFT 115033 | AIRKRAFT 115027 |
| FIRE STONE FLEX 38R/38D | CONTITECH FT 330-29 773 | CONTITECH FT 330-29 430 |
| FIRE STONE 095.0047 | FIRE STONE W01-358-8013 | FT 330-29 498 |
| GOODYEAR FLEX 556 3 3 8334 | GOODYEAR 3B12-305 | FT 330-29 503 |
| 578 93 3 100 | AIRKRAFT 115035 | FT 330-29 702 |
| CONTITECH FT 330-29 432 | FIRE STONE W01 358 8006 | |
| FIRE STONE W01-358-8010 | W01 358 8030 | |
| GOODYEAR 3B12-301 | GOODYEAR 3B12-304 |

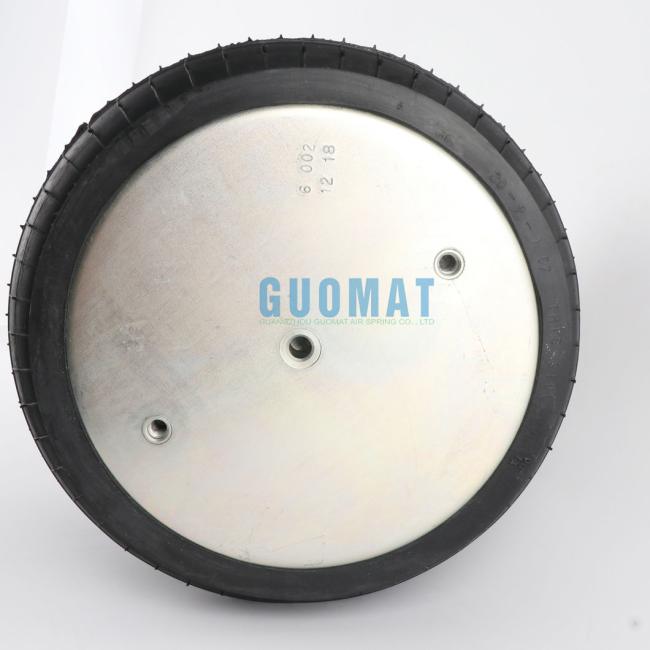

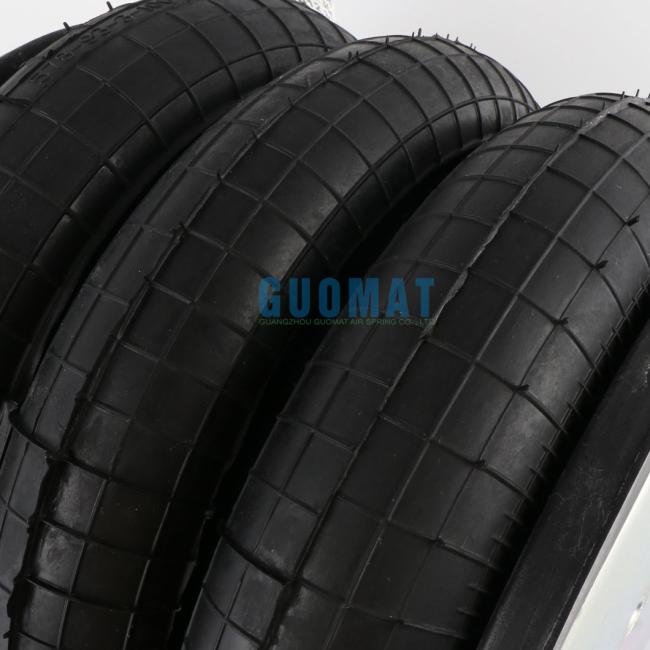

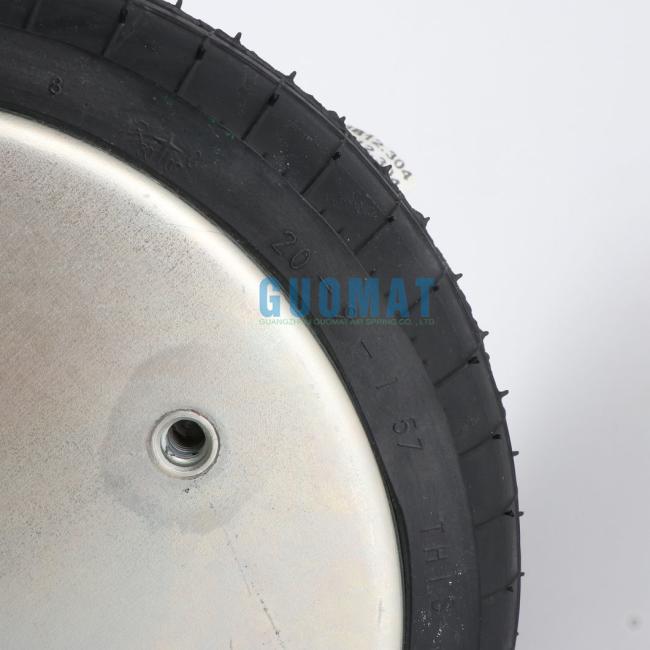

Details pictures of 3b12-304 Goodyear Air Spring:

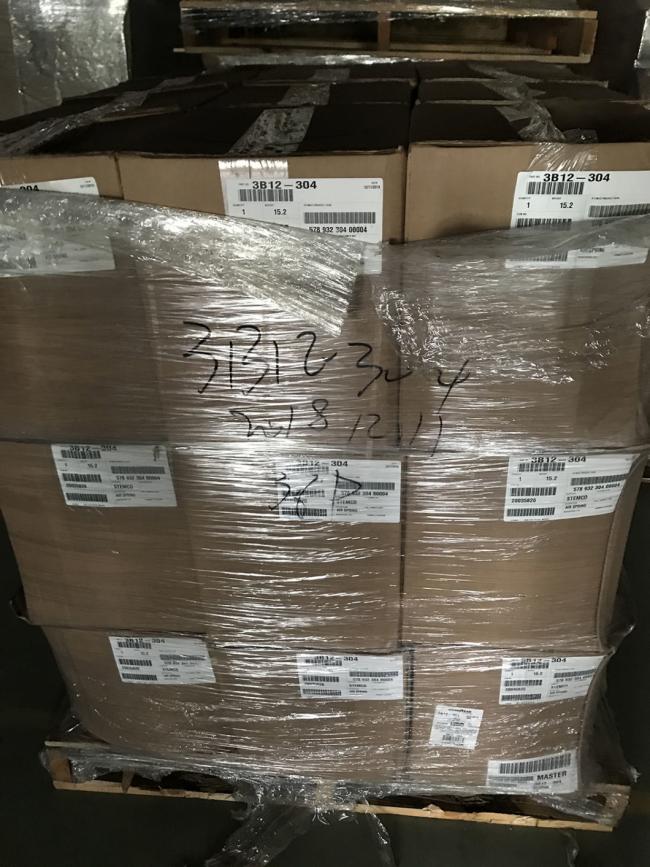

Bulk product pictures of 3b12-304 Goodyear Air Spring:
