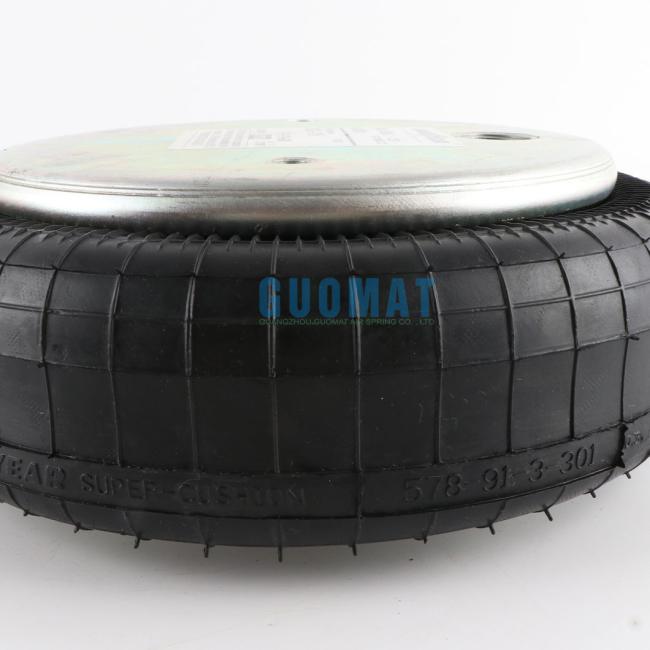

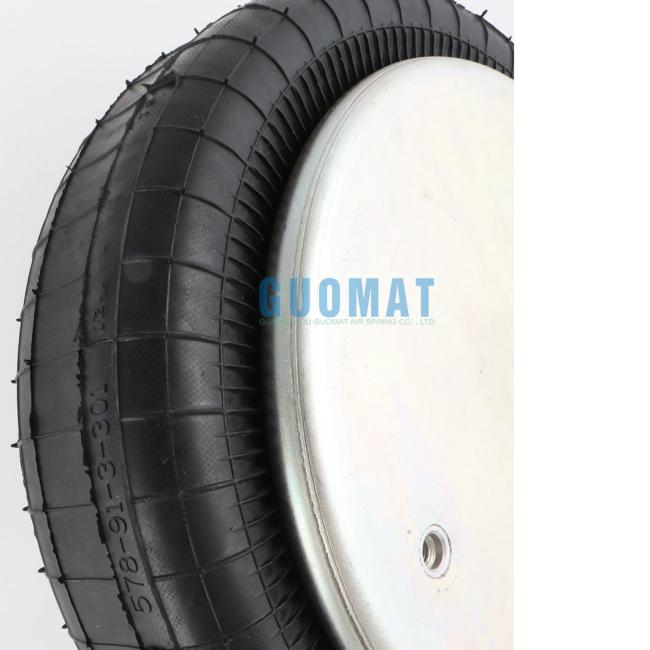

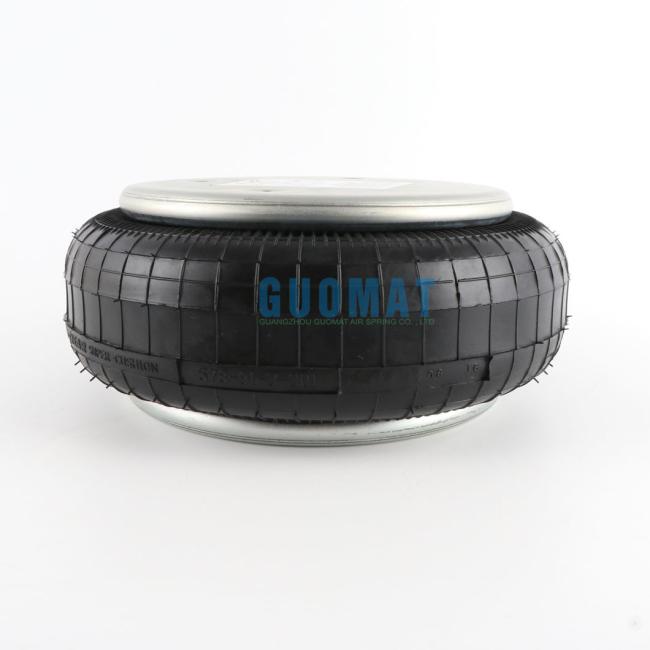

1B12-313 Goodyear Single Bellow Air Spring Contitech FS 330-11 for Truck Air Bag
1B12-313 Goodyear Single Bellow Air Spring Contitech FS 330-11 for Truck Air Bag
Product Information
Top Plate Hole/Stud Qty: 3
Top Plate Dia.: 9 in.
Top Plate C to C Diameter: 6.2 in.

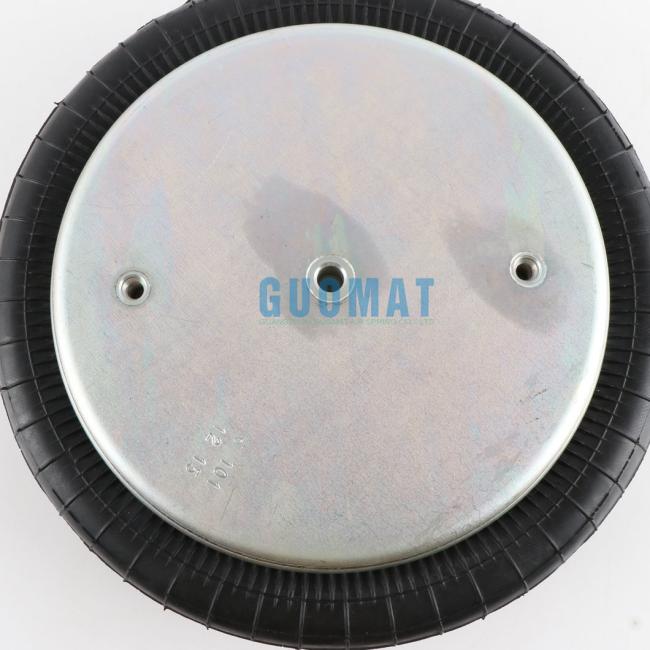

Bottom Plate Hole/Stud Qty: 2
Bottom Plate Dia.: 9 in.
Bottom Plate C to C diameter: 6.2 in.
Bottom Plate Alignment: Parallel
Bumper: No
Minimum Height: 2.3 in.
Maximum Height: 7.2 in.
OEM Original Manufacturer
Goodyear Part number: 1B12-313
Bellows type: single
Ultraman bellows Part number: SP1B22A
Fire stone Air Spring bellows Part number: Not applicable
Goodyear Bellows number: 578-91-3-301
Contitech bellows Part number: FS 330-11
Triangle bellows Part number: 6374
Goodyear Original: 1B12-313
The usual below kinds of Goodyear air spring we have
| Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | ||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | |||||||||
| 1B12-301 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B12-304 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12-305 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12-313 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 1/4 OS |
Goodyear Single Convoluted Air Springs
| Part No. | Usable Stroke | Max Dia. @ 100 psi In | Min Height Inches | Max Height Inches | Bumper | Force At Actuator Height Limit (Pounds) | Force At Compressed Height Limit (Pounds) | ||||||
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi | ||||||
| 1B12-305 | 4.6 | 13.2 | 2.6 | 7.2 | YES | 3640 | 2710 | 1840 | 1095 | 9035 | 7110 | 5250 | 3480 |
| 1B12-313 | 4.9 | 13.2 | 2.3 | 7.2 | NO | 3640 | 2710 | 1840 | 1095 | 9195 | 7185 | 5305 | 3520 |
| 1B14-350 | 1.9 | 15.2 | 2.3 | 7.2 | NO | 4910 | 3705 | 2625 | 1605 | 13320 | 10585 | 7975 | 5290 |
| 1B14-351 | 3.0 | 15.2 | 4.2 | 7.2 | YES | 4910 | 3705 | 2625 | 1605 | 11760 | 9345 | 7000 | 4630 |
| 1B14-352 | 4.9 | 15.2 | 2.3 | 7.2 | NO | 4910 | 3705 | 2625 | 1605 | 13320 | 10585 | 7975 | 5290 |
| 1B14-362 | 3.0 | 15.9 | 2.3 | 8.3 | NO | 4865 | 3625 |
2530 |
1520 | 14870 | 11705 | 8730 | 4795 |
| 1B14-364 | 6.0 | 15.9 | 2.3 | 8.3 | NO | 4865 | 3625 | 2530 | 1520 | 14870 | 11705 | 8730 | 5795 |
| 1B15-375 | 5.6 | 17.5 | 2.3 | 7.9 | NO | 4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
| 1B15-376 | 3.7 | 17.5 | 4.2 | 7.9 | YES | 4980 | 3775 | 2470 | 1490 | 13960 | 11140 | 8295 | 54656 |
| 1B15-377 | 5.6 | 17.5 | 2.3 | 7.9 | NO | 4980 | 3775 | 2470 | 1490 | 16750 | 13450 | 9665 | 6510 |
| 1B15-378 | 3.7 | 17.5 | 4.2 | 7.9 | YES | 4980 | 3775 | 2470 | 1490 | 13960 | 11140 | 8295 | 5465 |
