Goodyear 2B8-850 Air Rubber Bellow FD 120-20 CI G1/4 Firestone W01-M58-6353
Goodyear 2B8-850 Air Rubber Bellow FD 120-20 CI G1/4 Firestone W01-M58-6353
Technical Data
Expanded Height: 270mm
Static Height: 196mm
Compressed Height: 77mm
Max. Diameter: 185mm
Screw Type: M8-H6
C to C Diameter: 70mm
Pneumatic Connection: G1/4
Stud / Hole Qty of The Top Plate: 3
Stud / Hole Qty of The Bottom Plate: 2
Replaces These Air Springs
| Goodyear: 2B8-850 / 2B 5 850 / 2B8850 |
| Goodyear Flex No.: 579-92-3-530 / 579 92 3 530 / 579923530 |
| Contitech: FD 120-20 CI G1/4 |
| Contitech: FD 120-20 CI G1/4 M8 |
| Contitech: FD 120-20 CI 62055 |
| Contitech Bellow: FD 120-20 / FD120-20 / FD12020 |
| Firestone No.: W01-M58-6353 / W01 M58 6353 / W01M586353 |
| Firestone Style: 26 |
| Enidine: YI-2B8-850 / YI2B 850 / YI2B8850 |
Advantages of Our Shock Absorbers
- Enhanced Driving Comfort: Our shock absorbers effectively eliminate abnormal sounds, reduce noise, and minimize vibrations during driving, ensuring a smoother and more enjoyable ride.
- Lower Fuel Consumption & Extended Lifespan: They help decrease fuel usage, extend the lifespan of chassis-related components, and reduce overall vehicle maintenance costs.
- Superior Stability: Even on sharp turns, winding roads, or uneven terrain, our shock absorbers automatically adjust the vehicle's body height to maintain consistent comfort and ensure stability.
Double Convoluted Type Air Spring
| Part NO. | Usable Stroke | Max Dia @ 100 psi In. | Min Height In. | Max Height In. | Force at Actuator H. Limit (Pounds) | Force at Compressed H. Limit (Pounds) | ||||||
| 100 psi | 80 psi | 60 psi | 40 psi | 100 psi | 80 psi | 60 psi | 40 psi | |||||
| 2B6-530 | 4.5 | 6.5 | 2.8 | 7.7 | 595 | 405 | 235 | 95 | 2865 | 2320 | 1800 | 1255 |
| 2B6-531 | 4.5 | 6.5 | 2.8 | 7.7 | 595 | 405 | 235 | 95 | 2865 | 2320 | 1800 | 1255 |
| 2B6-532 | 4.3 | 6.5 | 3.4 | 7.7 | 595 | 405 | 235 | 95 | 2465 | 1940 | 1455 | 970 |
| 2B6-535 | 5.9 | 7.0 | 2.8 | 9.1 | 585 | 400 | 215 | 90 | 3395 | 2790 | 2170 | 1505 |
| 2B6-536 | 5.7 | 7.0 | 3.4 | 9.1 | 585 | 400 | 215 | 90 | 3000 | 2420 | 1820 | 1270 |
| 2B7-540 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
| 2B7-541 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
| 2B7-545 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
| 2B7-546 | 6.5 | 8.0 | 2.5 | 9.0 | 835 | 550 | 295 | 110 | 3220 | 2535 | 1860 | 1240 |
| 2B8-550 | 7.1 | 8.6 | 2.8 | 10.3 | 850 | 600 | 350 | 100 | 5150 | 4150 | 3100 | 2150 |
| 2B8-552 | 7.1 | 8.6 | 2.8 | 10.3 | 850 | 600 | 350 | 100 | 5150 | 4150 | 3100 | 2150 |
| 2B8-553 | 7.1 | 8.6 | 2.8 | 10.3 | 850 | 600 | 350 | 100 | 5150 | 4150 | 3100 | 2150 |
| 2B8-554 | 6.8 | 8.6 | 3.5 | 10.3 | 850 | 600 | 350 | 100 | 4650 | 3700 | 2800 | 1900 |

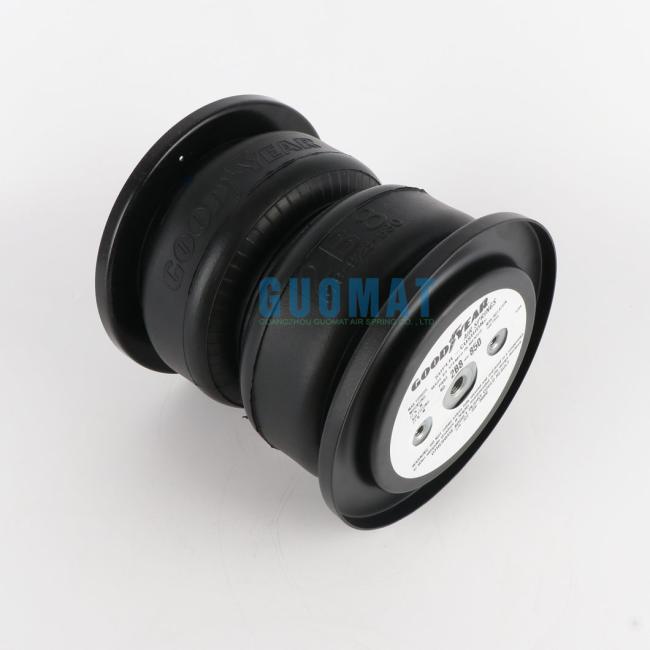

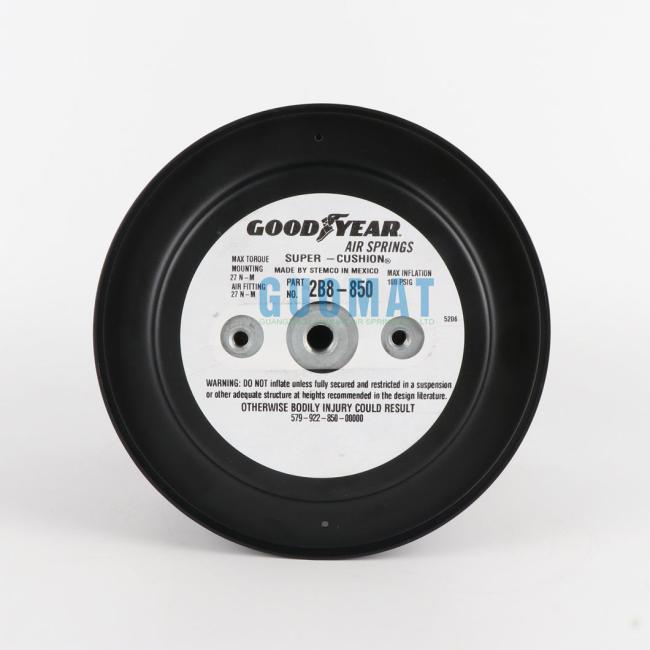

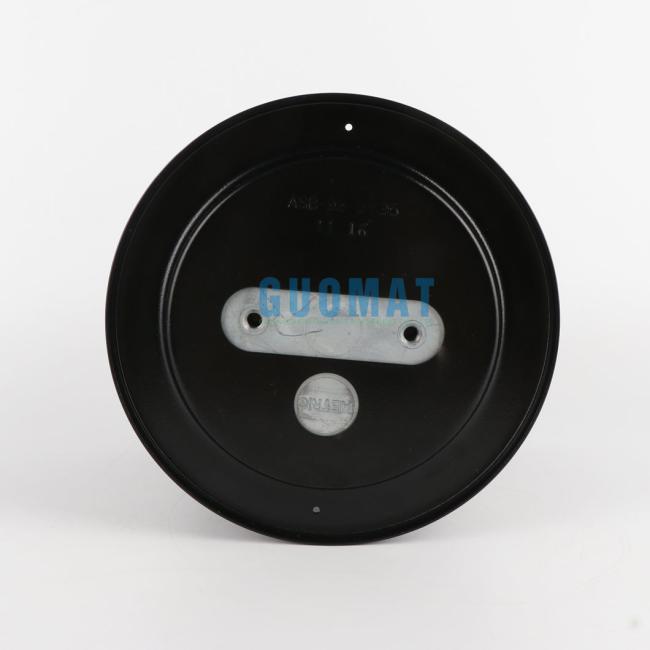

The Real Photos
