AIRSTROKE ACTUATOR

Maximum Diameter @ 7 Bar (mm)

264

Maximum Height (mm)

76

Maximum Stroke (mm)

203

Minimum Usable Height (mm)

279

Force in kN @ 5 Bar at Stroke of 25 mm

16.1

Force in kN @ 5 Bar at Stroke of 50% of Max Stroke

12.4

Force in kN @ 5 Bar at Stroke of Maximum Stroke

8.9

Material

2-Ply Standard Cord

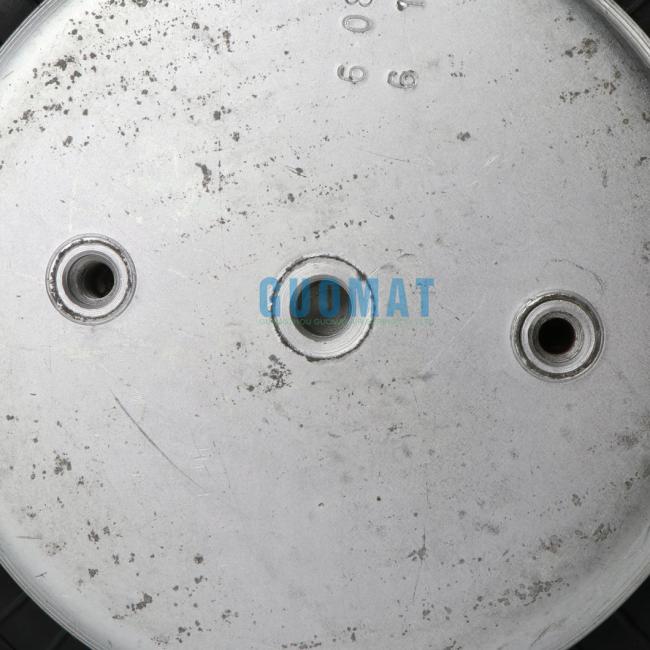

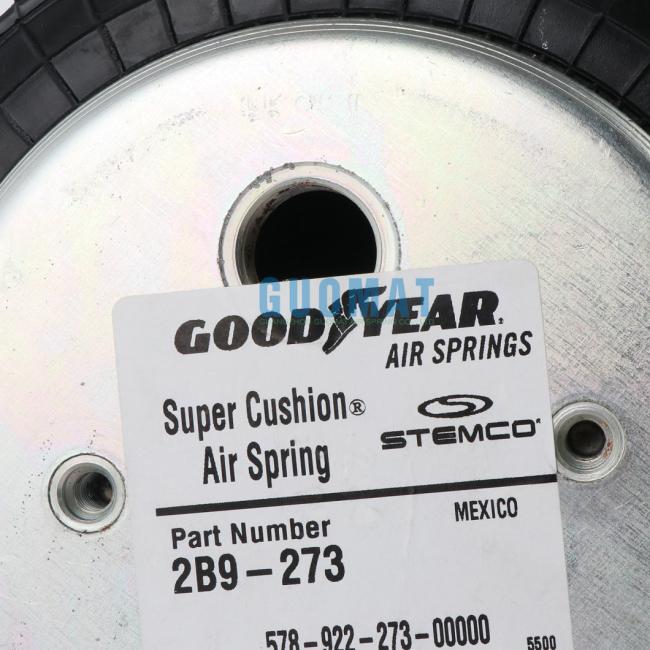

END CLOSURE DETAILS

Bead plate Type

3

Dim. A (Blind Nut Centers) (mm)

89

Dim. B (mm)

73

AIRMOUNT ISOLATOR

Design Height (mm)

254

Load (at Design Height) at: 3 Bar (kN)

6.2

Load (at Design Height) at: 5 Bar (kN)

10.9

Load (at Design Height) at: 7 Bar (kN)

15.6

Natural Frequency (@5 Bar)(fn(Hz)

1.6

% of Isolation at Forced Frequency 7 Hz

93.9

% of Isolation at Forced Frequency 13 Hz

98.5

% of Isolation at Forced Frequency 25 Hz

99.6
