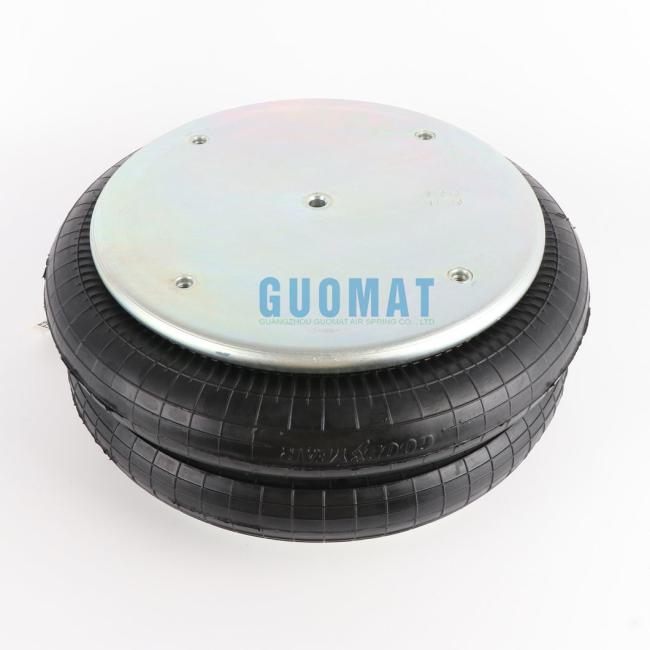

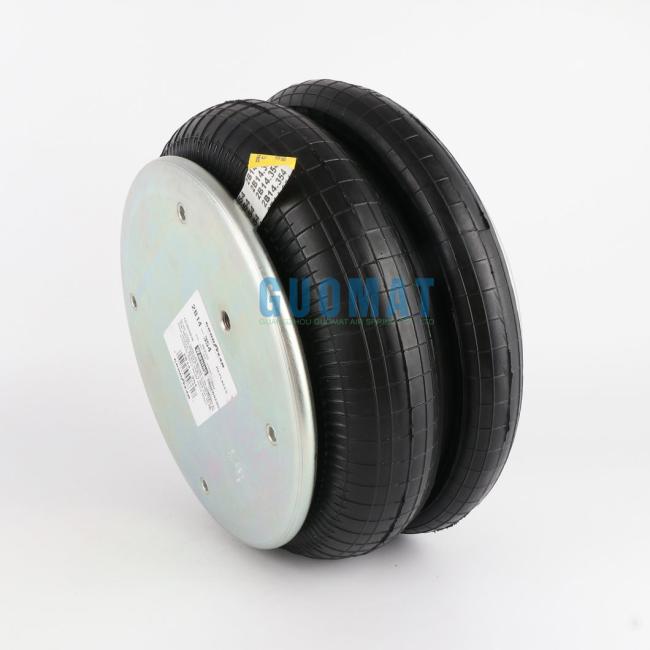

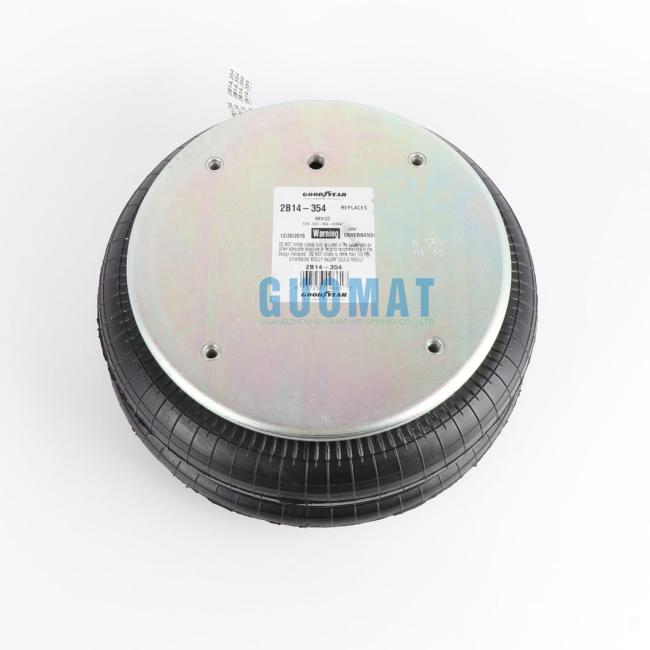

Actuator Goodyear 2B14-354 Bellow NO. 578923353 Refer to Firestone Air Spring W013587145
Actuator Goodyear 2B14-354 Bellow NO. 578923353 Refer to Fire stone Air Spring W013587145
2B14-354 Goodyear Cross OEM
Goodyear Parts NO.:2B14-350 ;
Goodyear Parts NO.:2B14 350;
Goodyear Parts NO.:2B14350
Goodyear Parts NO.: 2B14-354;
Goodyear Parts NO.:2B14 354;
Goodyear Parts NO.:2B14354
Goodyear Bellow NO.578923353
GoodyearFlexible members No.: 578-92-3-353
Fire stone Air Spring Parts NO.:W01-358-7145
Fire stone Air Spring Parts NO.::W01 358 7145
Fire stone Air Spring Parts NO.::W013587145
ContiTech Parts NO:FD 530-22 CI 1/4 NPT
ContiTech Parts NO::FD530-22 CI 1/4 NPT
2B14-354 Goodyear Product parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
Rubber Bellows
Rubber Bellows MAX Diameter : 406 mm
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 391 mm
Working Stroke : 287mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Roof hole/stud: 5
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 11.3
Collapse height: 3.5
Flexible members: 578-92-3-353
piston:
Piston type:-
Goodyear Trim: 2B14354
Crossover
Triangle spring: 4374
Fire stone Air Spring: 7145
Kangdi Technology: 64548
Reedwell: 1003587145C
batco: 10-97145
Goodyear Airlines: 2B14-350
Vol vo Air Spring /White/Car: 35203-0005
Vol vo Air Spring /White/Car: 35203-3204
Navistar / IHC: 554796C1
Mike: 57QL239
UCF / Impex: AB-2B14-354
Dallas Spring: AS7145
Midland / Haldex: CS214354
Euclid / Meritor Aftermarket: E-FS7145
ContiTech: FD530-22374
Euclid / Meritor Aftermarket: FS7145
BWP: M-3505
Hendrickson auxiliary equipment: S-13038
Reedwell: S4540C
Leland: SC2016
Goodyear Air Spring
| 2B12-300 | 578-92-3-309 | 2B12-304 | 578-92-3-309 | 2B12-307 | 578-92-3-309 |
| 2B12-309 | 578-92-3-309 | 2B12-313 | 578-92-3-309 | 2B12-318 | 578-92-3-309 |
| 2B12-319 | 578-92-3-309 | 2B12-320 | 578-92-3-309 | 2B12-340 | 578-92-3-309 |
| 2B12-406 | 578-92-3-309 | 2B12-410 | 578-92-3-309 | 2B12-411 | 578-92-3-309 |
| 2B12-412 | 578-92-3-309 | 2B12-424 | 578-92-3-309 | 2B12-425 | 578-92-3-309 |
| 2B12-426 | 578-92-3-309 | 2B12-427 | 578-92-3-309 | 2B12-429 | 578-92-3-309 |
| 2B12-432 | 578-92-3-309 | 2B12-463 | 578-92-3-309 | 2B12-402 | 578-92-3-310 |
| 2B12-428 | 578-92-3-310 | 2B12-434 | 578-92-3-310 | 2B12-446 | 578-92-3-310 |
| 2B12-345 | 578-92-3-315 | 2B12-346 | 578-92-3-315 | 2B12-416 | 578-92-3-315 |
| 2B12-440 | 578-92-3-315 | 2B12-354 | 578-92-3-353 | 2B12-355 | 578-92-3-353 |
