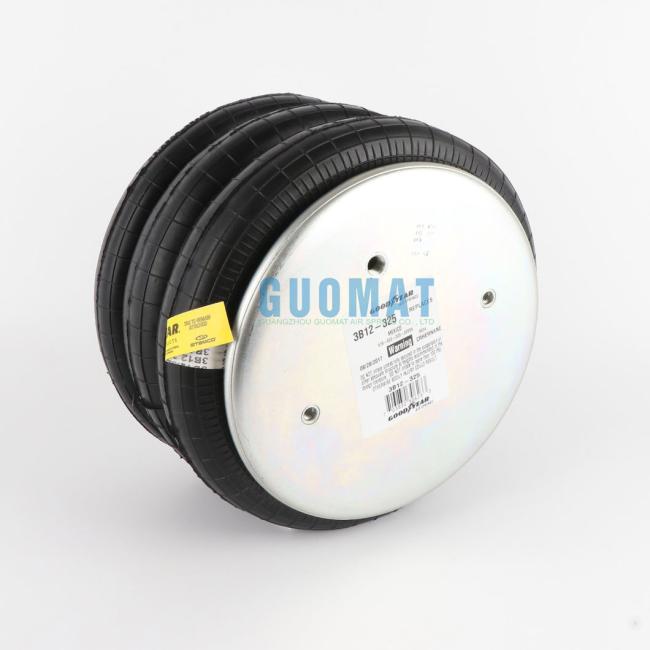

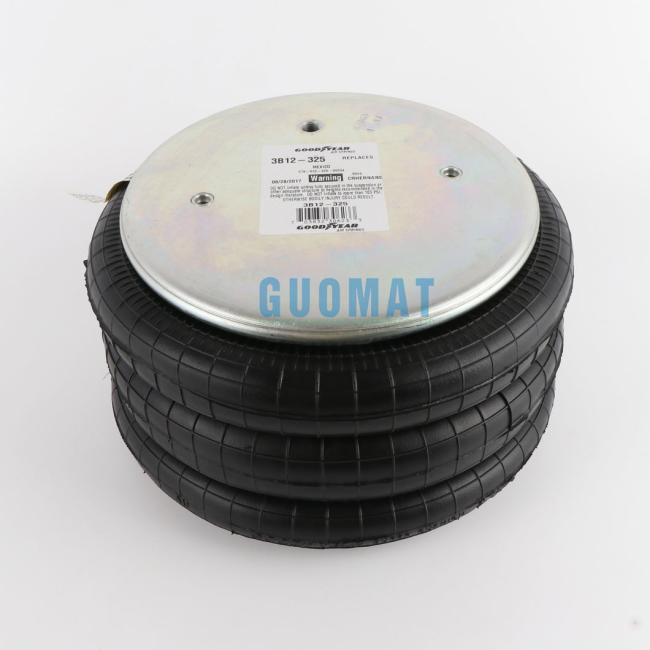

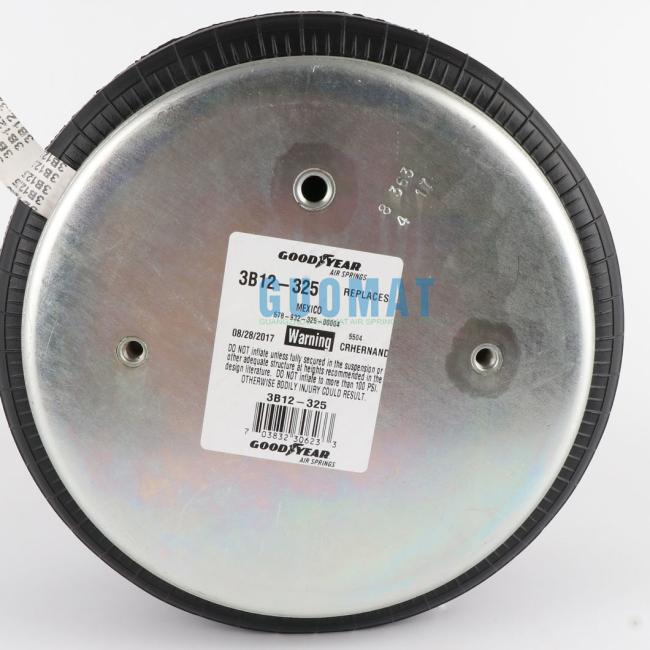

Genuine Goodyear Air Spring 3B12-325 Triple Convoluted 578933103 Ref. to Firestone W013588048


Goodyear 3B12-325 Cross others OEM

Goodyear Parts NO.: 3B12-325;
Goodyear Parts NO.:3B12 325;
Goodyear Parts NO.:3B12325
Goodyear Flexmember Parts NO.: 578-93-3-103 ;
Goodyear Flexmember Parts NO.:578 93 3 103;
Goodyear Flexmember Parts NO.:578933103
Flexmember 578 93 2 325;
Flexmember 578-93-2-325;
Flexmember 578932325
Fire stone Air Spring Parts NO.: W01-358-8048;
Fire stone Air Spring Parts NO.: W01 358 8048;
Fire stone Air Spring Parts NO.: W013588048
Contitech Parts NO.: FT 430-32 CI 1/4 NPT;
Contitech Parts NO.:FT 430 32 CI 1/4 NPT;
Contitech Parts NO.:FT430 32 CI 1/4 NPT;

3B12-325 Goodyear Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

 Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

 Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

 Bumper block / Buffer block

Without Bumper Block

 Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Number of top plate holes / studs: 2
Top plate diameter: 9
Top plate C to C diameter: 6.2 inch
Base plate hole bolt Qyt: 2
Base plate diameter: 9 inch
Diameter of base plates C to C: 6.2 inch
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 4.8 inch
Maximum height: 18 inch

578-93-3-103 Goodyear Air Spring
