Rolling Lobe Air Spring Rubber Bellow 566-24-3-038 for Goodyear 1R12-541

Product Information

Air Spring AS0113G
Goodyear #: 1R12-541
Bellow Type: Rolling Lobe
Automann Bellow #: 1DK23K
Firestone Bellow #: 1T15M-6
Goodyear Bellow #: 566-24-3-008
Contitech Bellow #: 9 10-16
Triangle Bellow #: 6363
Bottom Plate/Pison Type: Composite
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 9
Top Plate C to C Diameter: 6.2
Bottom Plate Hole Stud Qyt: 4
Bottom Plate Dia: 9.8
Bottom Plate C to C Diameter: 7.87
Bottom Plate Part #: 566-20-7-209
Bottom Plate Alignment: Parallel
Bumper: Yes
Bracket: N/A
Min Height: 6.5
Max Height: 20.7

OEM Cross Number

Goodyear 1R12-541
Goodyear 1R12 541
Goodyear 1R12541
Goodyear Flexmember 566-24-3-038
Goodyear Flexmember 566 24 3 038
Goodyear Flexmember 566243038
Goodyear Piston 566-20-7-209

Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Top Plate Diameter: 228.6 MM
Bottom Plate Diameter:249 MM
Collapsed Height: 165.1 MM
Flexmember: 566-24-3-038
Piston: 566-20-7-209
Piston Type: C
Goodyear Trimmed: 1R12541
Conti Tech: 64650
Conti Tech: 910-16P769
Watson & Chalin: AS0113G

Goodyear Cross References

Advantages of Air Spring Shock Absorbers Compared to Traditional Springs

- Superior Shock Absorption: Air springs provide outstanding damping performance, minimizing vibrations effectively.
- Consistent Stability: They deliver stable shock absorption, ensuring smooth operation under varying conditions.
- Accurate Height Adjustment: Air springs allow precise control over height for enhanced functionality and adaptability.
- Diverse Size Options: Available in a wide range of sizes to meet various application requirements.
- Prolonged Equipment Lifespan: Their design helps reduce wear and tear, extending the operational life of machinery.
- Effective Noise Reduction: Air springs significantly lower noise levels during operation, improving the overall work environment.

Given these advantages, air spring shock absorbers have seen widespread application across different industries, enhancing performance and operational efficiency.

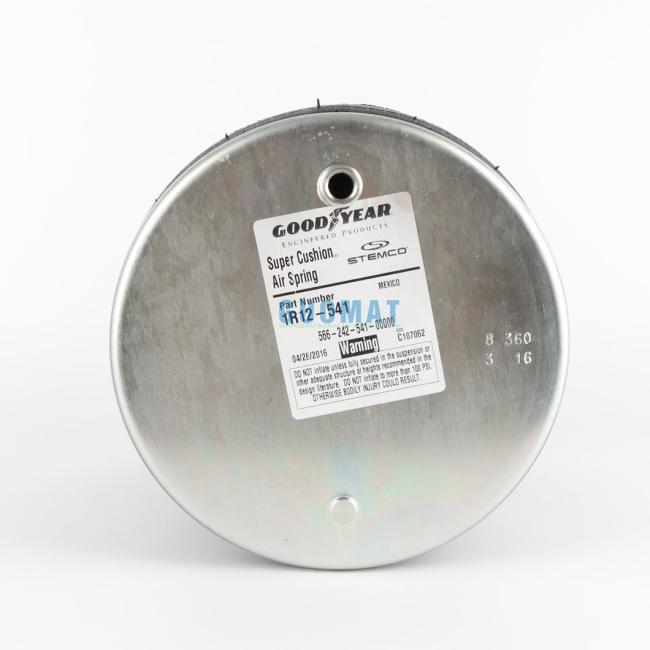

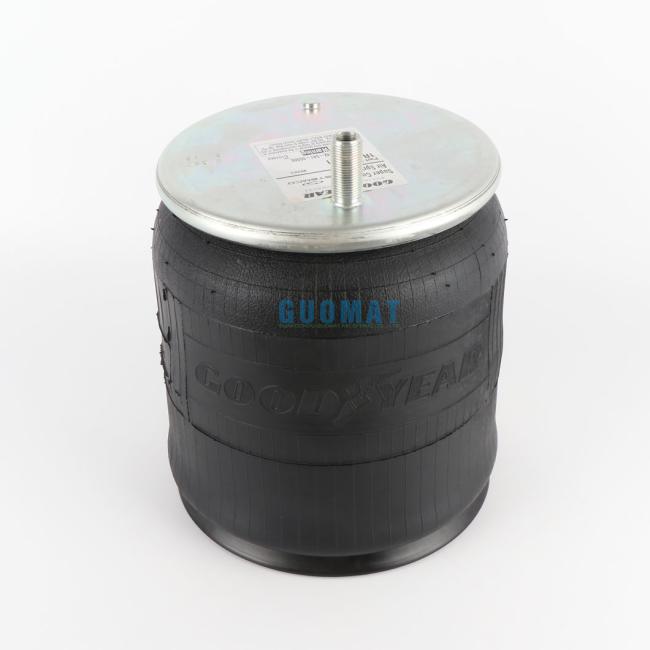

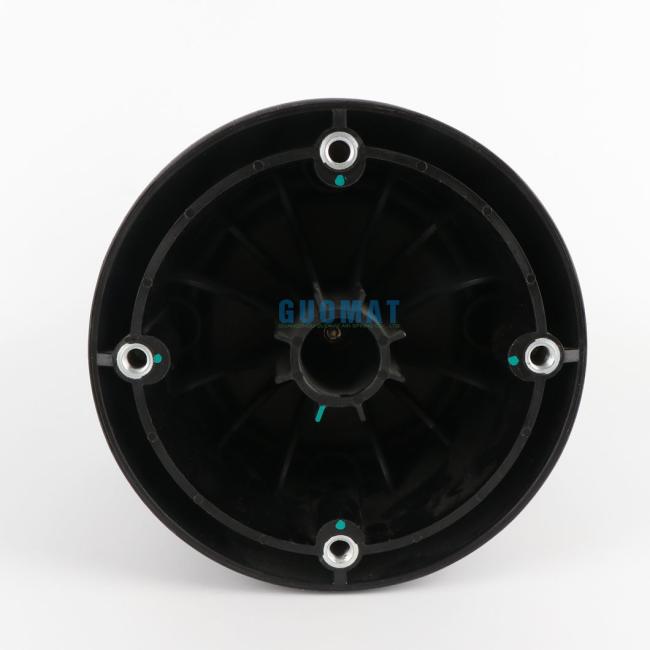

Detailed Photos
