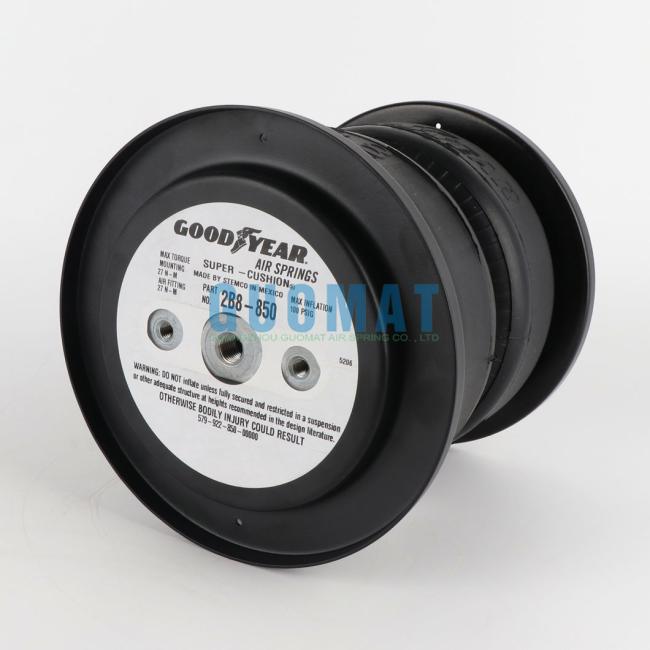

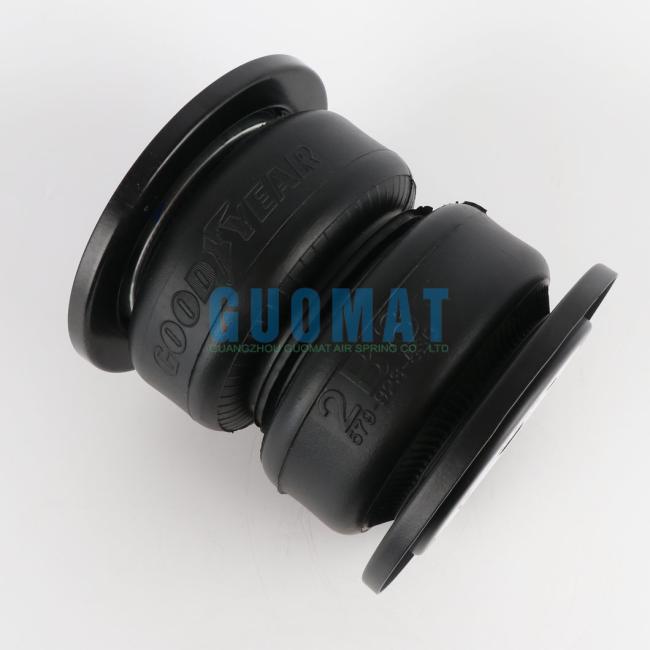

Reduce Shock 2B8-850 Goodyear Double Convoluted Rubber Bellow Contitech FD120-20
Reduce Shock 2B8-850 Goodyear Double Convoluted Rubber Bellow Contitech FD120-20
Product Introduction
The rubber air spring is a sealed container filled with compressed gas (air pressure is 0.5-1Mpa), and uses the compressibility of the gas to achieve its spring action. The stiffness of this spring is variable. When the load acting on the spring hill increases, the quantitative gas in the container is compressed, the air pressure increases, and the stiffness of the spring increases. Conversely, when the load decreases, the air pressure in the spring decreases and the stiffness decreases. The rubber airbag has ideal elastic properties. There are two types of rubber air springs: capsule type and membrane type. The capsule type rubber air spring is composed of a rubber airbag with a cord and compressed air enclosed therein. The inner layer of the capsule type is made of airtight rubber, while the outer layer is made of oil-resistant rubber. The upper and lower covers of the airbag seal the airbag.
Product Technical Data
| Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | ||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | |||||||||
| 2B8-550 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 1/4 C |
| 2B8-552 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 3/4 C |
| 2B8-553 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B8-554 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 6.6 | 3.5 | 10.1 | YES | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B9-200 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9-201 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9-204 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9-205 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9-208 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9-216 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9-250 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-251 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-253 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-255 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-256 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-263 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/2 OS |
| 2B9-275 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 3/4 OS |
Alternative Items
Goodyear 2B8-850
Goodyear 2B 8-850
Goodyear 2B8 850
Goodyear 579923530
Goodyear 579-923-530
Goodyear 579 923 530
Fire-stone W01M586353
Fire-stone W01-M58-6353
Fire-stone W01 M58 6353
Fire-stone WO1M586353
Fire-stone WO1-M58-6353
Fire-stone WO1 M58 6353
Contitech FD120-20
Contitech FD 120-20
Contitech FD 120-20 CI G1/4
Every Standard Air Spring Consists of 4 Layers
- The inner layer which actually contains the air.
- The first layer of fabric reinforced rubber applied at a specific angle.
- The second layer of fabric reinforced rubber which is laid to a specific angle to the first layer.
- The cover to protect the bias fabric plies.
