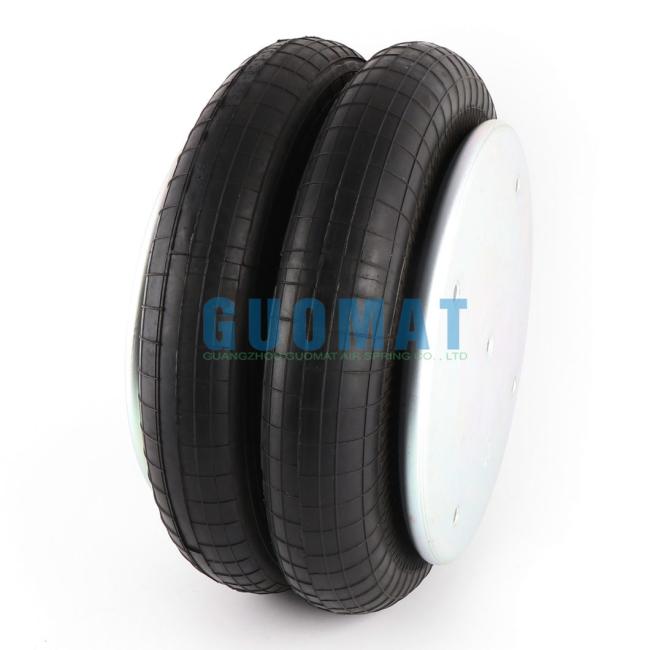

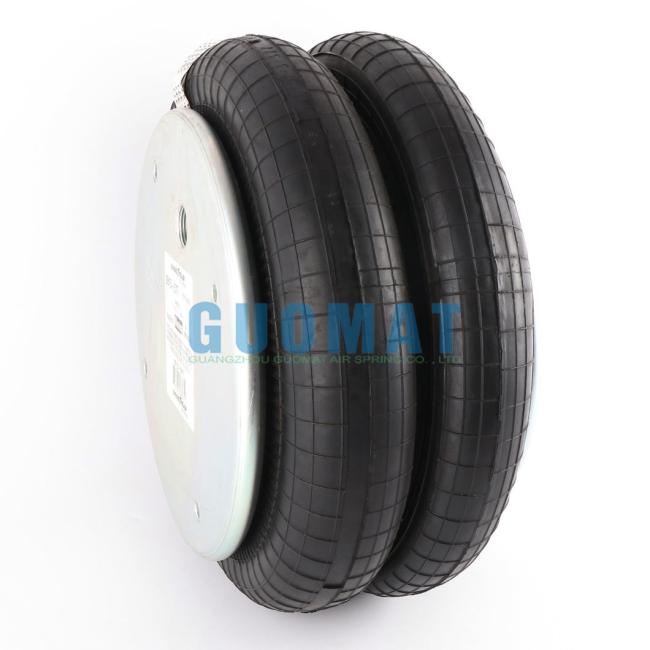

Imperial Rubber Air Bellows 578-92-3-377 Goodyear 2B15-377 High Durability
Imperial Rubber Air Bellows 578-92-3-377 Goodyear 2B15-377 High Durability
GUOMAT Air Suspensions
GUOMAT Air Suspensions are known for their exceptional durability, precise engineering, and cost-efficiency, making them ideal for a wide range of actuation and vibration isolation applications. Built with time-proven designs, these air springs feature fabric-reinforced Neoprene or Natural Rubber flex members, combined with corrosion-resistant end retainers, ensuring outstanding quality and reliable performance. When used as actuators, GUOMAT Air Bags deliver both linear and angular motion with precision and efficiency. As vibration isolators, they excel at minimizing the detrimental effects of vibration, offering enhanced stability and protection across various applications.
Technical Data
| Part Number | Usable Stroke | Max Diameter | Min. Height (in.) | Max. Height (in.) | 100psi | 80psi | 60psi | 40psi | 100psi | 80psi | 60psi | 40psi |
| Force At Actuator Height Limit (Pounds) | Force At Compressed Height Limit (Pounds) | |||||||||||
| 2B14-352 | 7.8 | 15.1 | 3.5 | 11.3 | 3485 | 2715 | 2000 | 1240 | 13915 | 11070 | 8280 | 5480 |
| 2B14-353 | 6.4 | 15.1 | 4.9 | 11.3 | 3485 | 2715 | 2000 | 1240 | 13100 | 10555 | 7880 | 5275 |
| 2B14-354 | 7.8 | 15.1 | 3.5 | 11.3 | 2485 | 2715 | 2000 | 1240 | 13915 | 11070 | 8280 | 5480 |
| 2B14-355 | 6.4 | 15.1 | 4.9 | 11.3 | 3485 | 2715 | 2000 | 1240 | 13100 | 10555 | 7880 | 5275 |
| 2B14-362 | 11.7 | 16.0 | 3.5 | 15.2 | 4310 | 3150 | 2065 | 1120 | 16265 | 12965 | 9665 | 9345 |
| 2B14-452 | 11.0 | 16.0 | 4.2 | 15.2 | 4310 | 3150 | 2065 | 1120 | 15385 | 12235 | 9090 | 5970 |
| 2B15-375 | 9.3 | 16.7 | 4.9 | 12.8 | 4105 | 2970 | 2090 | 1270 | 15675 | 12510 | 9350 | 6210 |
| 2B15-376 | 7.9 | 16.7 | 4.9 | 12.8 | 4105 | 2970 | 2090 | 1270 | 14230 | 11375 | 8490 | 5075 |
| 2B15-377 | 9.3 | 16.7 | 3.5 | 12.8 | 4105 | 2970 | 2090 | 1270 | 15675 | 12510 | 9350 | 6210 |
| 2B15-378 | 7.9 | 16.7 | 4.9 | 12.8 | 4105 | 2970 | 2090 | 1270 | 14230 | 11378 | 8490 | 5075 |
| 2B19-8433 | 6.75 | 20.0 | 3.25 | 10.0 | 17680 | 14000 | 10340 | 6710 | 27240 | 21750 | 16260 | 10760 |
| 2B22-8539 | 6.75 | 22.75 | 3.25 | 10.0 | 24190 | 19110 | 14130 | 9320 | 34100 | 27140 | 20150 | 13320 |
Cross Number
Original Manufacturer: GOODYEAR
Country of Origin: Mexico
GOODYEAR 2B15-377
GOODYEAR 2B 15-377
GOODYEAR 578923377
GOODYEAR 578 92 3 377
GOODYEAR 578-92-3-377
Enidine YI-2B15-377
Enidine YI 2B15 377
Enidine YI2B15377
Contitech FD53035-1165
Contitech FD 53035-1165
Contitech FD53035 1165
Fire-stone W013589529
Fire-stone W01 358 9529
Fire-stone W01-358-9529
Fire-stone WO13589529
Fire-stone WO1 358 9529
Fire-stone WO1-358-9529
Double Convoluted Bellow Type We Can Provide
| 2B6-530 | 2B6-531 |
| 2B6-532 | 2B6-535 |
| 2B6-536 | 2B7-540 |
| 2B7-541 | 2B7-542 |
| 2B7-545 | 2B7-546 |
| 2B8-550 | 2B8-552 |
| 2B8-553 | 2B8-554 |
| 2B9-200 | 2B9-201 |
| 2B9-204 | 2B9-205 |
| 2B9-216 | 2B9-250 |
| 2B9-251 | 2B9-253 |
| 2B12-309 | 2B12-218 |
| 2B12-425 | 2B12-429 |
| 2B12-437 | 2B12-416 |
| 2B14-352 | 2B14-353 |
| 2B14-354 | 2B14-355 |
| 2B14-362 | 2B14-363 |
| 2B14-452 | 2B15-375 |
| 2B15-376 | 2B15-377 |
| 2B15-378 | 2B19-8433 |
| 2B22-8539 |
Product Applications
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press
Company Profile

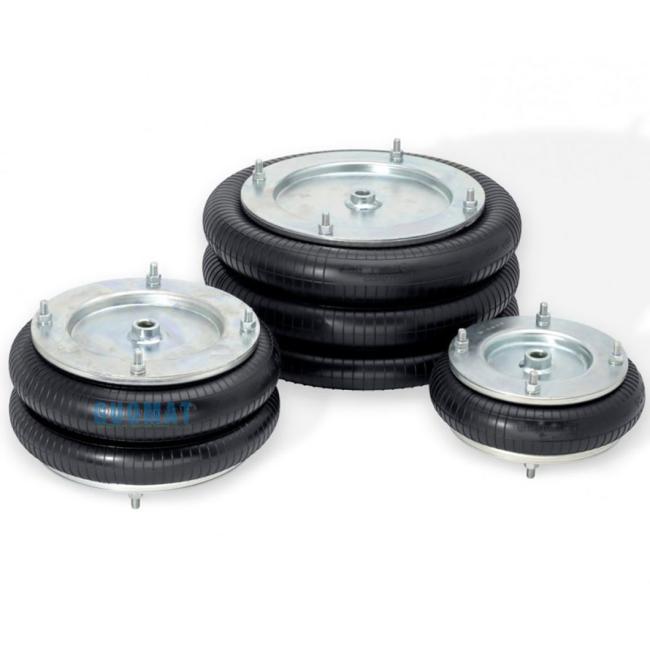

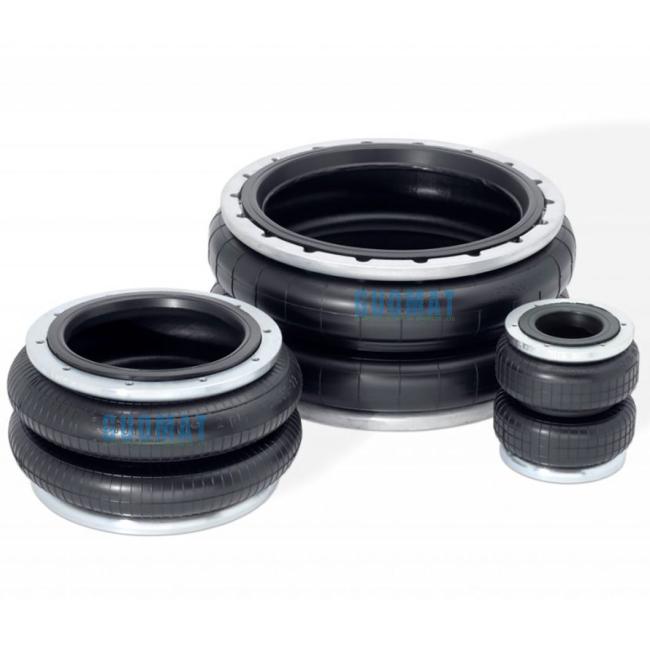

Product Images
