2B9-273 Goodyear Air Spring 578-92-3-211 for Contitech FD 200-25 G1/4 Air Inlet

Price Negotiable
Price: Negotiable
MOQ: 5
Delivery Time: 5-8 Working Days
Brand: GUOMAT
Product Description

2B9-273 Goodyear Air Spring 578-92-3-211 for Contitech FD 200-25 G1/4 Air Inlet





Product Description



GUOAMT air springs are available in single, double, or triple bellow configurations, designed to meet diverse needs across various suspension systems and applications. Widely utilized in trucks, trailers, and industrial settings, these air springs excel with their unique ability to perform linear or angular movements while maintaining a significantly lower profile compared to traditional air cylinders. Their remarkable versatility makes them ideal for use in machinery for pressing, tensioning, rolling, conveying, lifting, and packaging. Furthermore, as vibration dampers, they efficiently reduce the harmful effects of vibration, ensuring smoother and more stable operation.





Product Details



Cover Plate
Top Cover Plate Diameter 161mm
Screw Center Distance of Top Cover Plate 89mm
Bottom Cover Plate Diameter 161mm
Screw Center Distance of Bottom Cover Plate 89mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth 2×M8×15
Bottom Cover Plate Screw(Nut) Tooth 2×M8×15
Gas Hole/Air Inlet/Air Fitting
Air Hole G1/4
Rubber Bellow
Rubber Bellow Max. Diameter 260mm
Minimum Height 77mm
Maximum Height 325mm
Space Required 275mm




OEM Number



Goodyear Number: 2B9-273

Goodyear Number: 2B 9-273
Goodyear Number: 2B9 273
Goodyear Number: 2B 9 273
Goodyear Rubber Number: 578922273
Goodyear Rubber Number: 578 922 273
Goodyear Rubber Number: 578-922-273
Goodyear Rubber Number: 578-922-273-00000


We Can Offer Other Double Convoluted Air Springs

2B6-530 2B6-531 FD 40-10 CI SP2907
2B6-532 2B6-535 FD 70-13 CI SP2441
2B6-536 2B7-540 FD 110-15 CI SP2917
2B7-541 2B7-542 FD 120-17 CI SP1482
2B7-545 2B7-546 FD 120-20 CI SP1490
2B8-550 2B8-552 FD 200-19 CI SP1538
2B8-553 2B8-554 FD 200-22 CI SP1541
2B9-200 2B9-201 FD 200-25 CI SP2782NB
2B9-204 2B9-205 FD 330-22 CI SP1556
2B9-216 2B9-250 FD 330-30 CI SP1557
2B9-251 2B9-253 FD 530-22 CI SP1408
2B12-309 2B12-218 FD 530-35 CI SP2342
2B12-425 2B12-429 FD 960-22 CI
2B12-437 2B12-416 FD 1330-25 CI
2B14-352 2B14-353
2B14-354 2B14-355
2B14-362 2B14-363
2B14-452 2B15-375
2B15-376 2B15-377
2B15-378 2B19-8433
2B22-8539





Company Profile


Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
Goodyear Super Cushion Air Spring 2b9-273 578-922-273 Industrial Air Shock

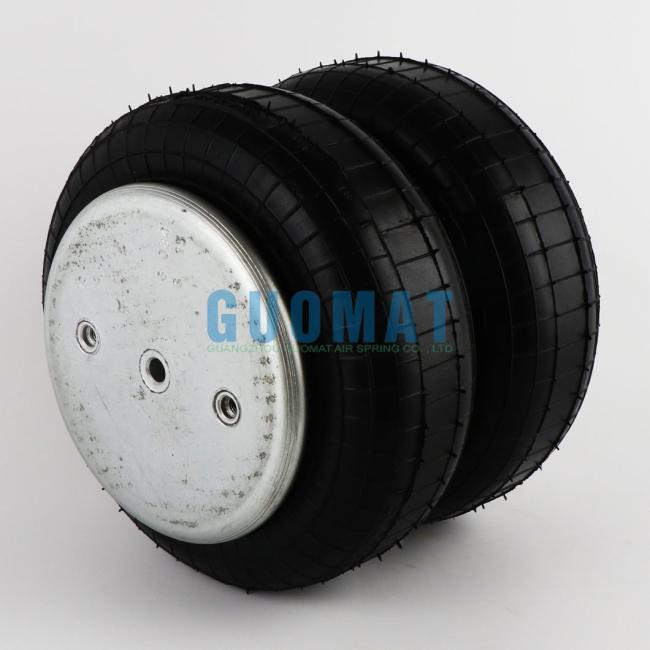

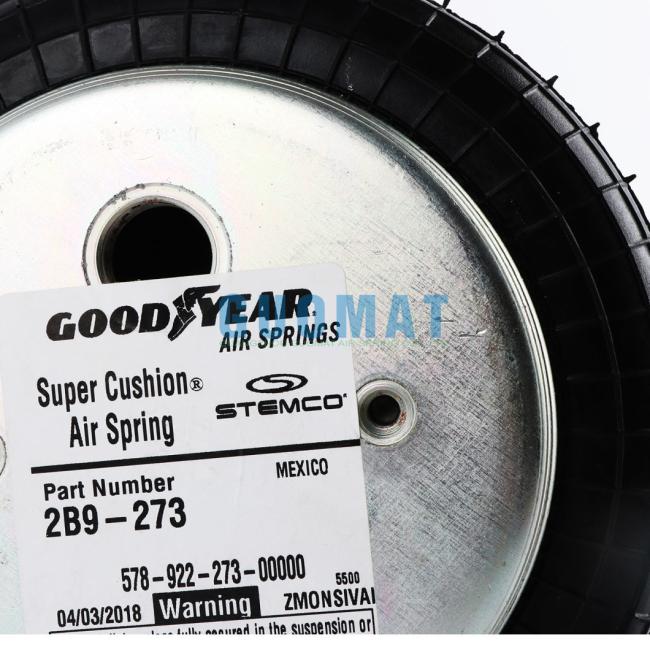

Pictures of Details

Goodyear Super Cushion Air Spring 2b9-273 578-922-273 Industrial Air ShockGoodyear Super Cushion Air Spring 2b9-273 578-922-273 Industrial Air Shock

Goodyear Super Cushion Air Spring 2b9-273 578-922-273 Industrial Air Shock

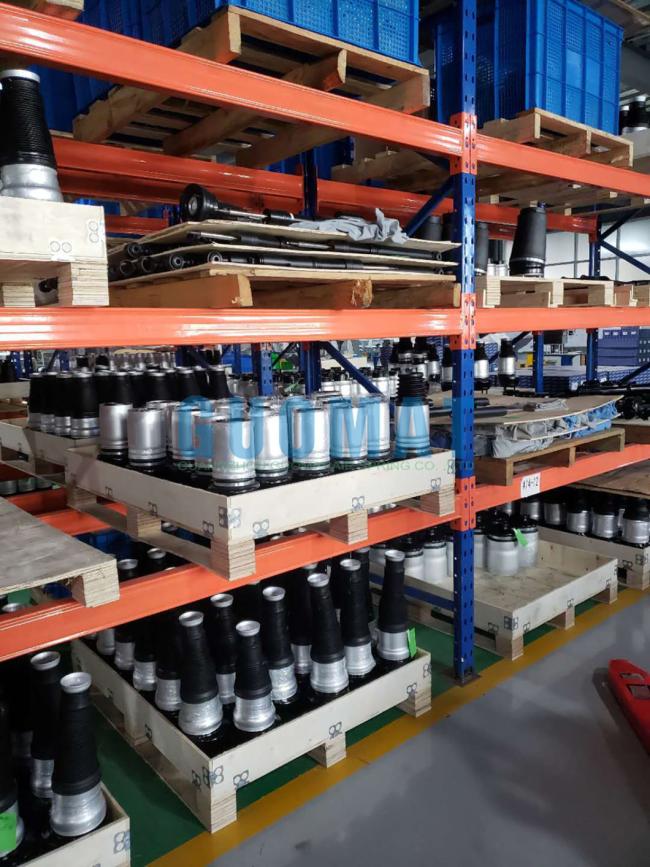

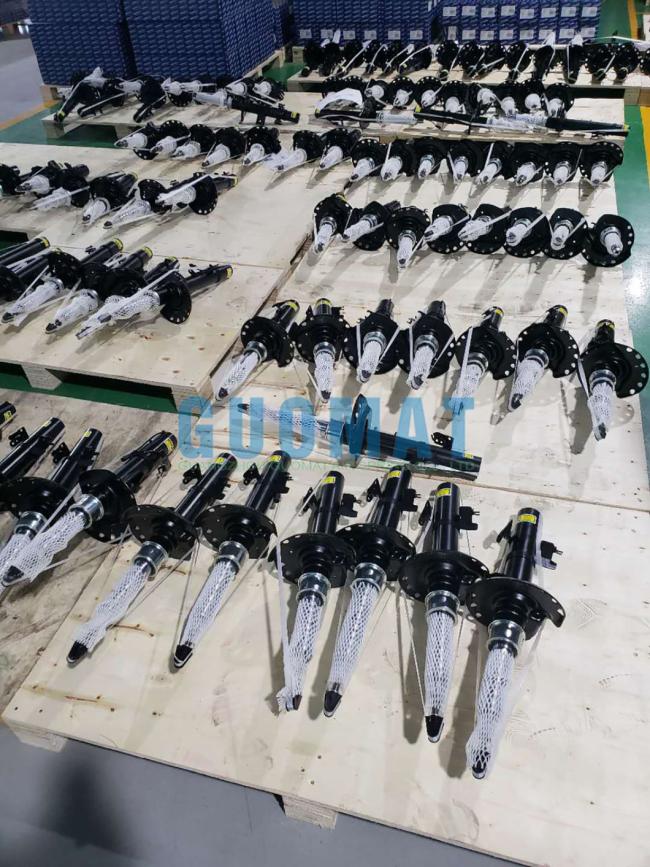

Warehouse Pictures


Goodyear Super Cushion Air Spring 2b9-273 578-922-273 Industrial Air Shock
