Goodyear Pneumatic Air Bellow 2B12-346 Double Convoluted for Truck Air Spring
Goodyear Pneumatic Air Bellow 2B12-346 Double Convoluted for Truck Air Spring
Product Introduction
This is a Goodyear bellows-style air spring, designed with one, two, or three convolutions in the flexible member. The 2B12-346 double-convoluted air spring is commonly used in truck and trailer lift axles as an air ride suspension spring. Beyond vehicle applications, it also serves as an actuator or insulator in various industrial and commercial settings. Goodyear double-convoluted air springs are available in crimped designs and sleeve-style bellows. While both types share similar features and functionality, sleeve-style bellows stand out for their durability, as their end retainers are permanently secured by crimping the flexible member between the retainers and external crimp rings.
Refer Number
Goodyear Number 2B12-346
Goodyear Number 2B 12-346
Goodyear Flexmember: 578-92-3-315
Goodyear Flexmember: 578 92 3 315
Goodyear Flexmember: 578923315
Goodyear Trimmed: 2B12346
Product Details
| Compressed Height | 3.50 in. | Air Spring Type | Double Convoluted |
| Top Plate Diameter | 9.00 in. | Top Mounting | 1×combination stud, 1×stud |
| Bottom Mounting | 2×threaded hole | Bottom Piston/Plate Diameter | 9.00 in. |
| Bellows Number | FD 331-26 | VMRS | 016008001 |
OEM Numbers
| Firestone | 7550 |
| ContiTech | FD331-26541 |
| ContiTech | FD 331-26541 |
| ContiTech | FD 331-26 541 |
| Triangle Spring | 4541 |
| Histeer - Link Mfg. | 10325 |
| Watson & Chalin | AS-0087 |
| Euclid/Meritor Aftermarket | E-FS7550 |
| Euclid/Meritor Aftermarket | FS7550 |
| 2B6-530 | 2B6-531 |
| 2B6-532 | 2B6-535 |
| 2B6-536 | 2B7-540 |
| 2B7-541 | 2B7-542 |
| 2B7-545 | 2B7-546 |
| 2B8-550 | 2B8-552 |
| 2B8-553 | 2B8-554 |
| 2B9-200 | 2B9-201 |
| 2B9-204 | 2B9-205 |
| 2B9-216 | 2B9-250 |
| 2B9-251 | 2B9-253 |
| 2B12-309 | 2B12-218 |
| 2B12-425 | 2B12-429 |
| 2B12-437 | 2B12-416 |
| 2B14-352 | 2B14-353 |
| 2B14-354 | 2B14-355 |
| 2B14-362 | 2B14-363 |
| 2B14-452 | 2B15-375 |
| 2B15-376 | 2B15-377 |
| 2B15-378 | 2B19-8433 |
| 2B22-8539 |
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

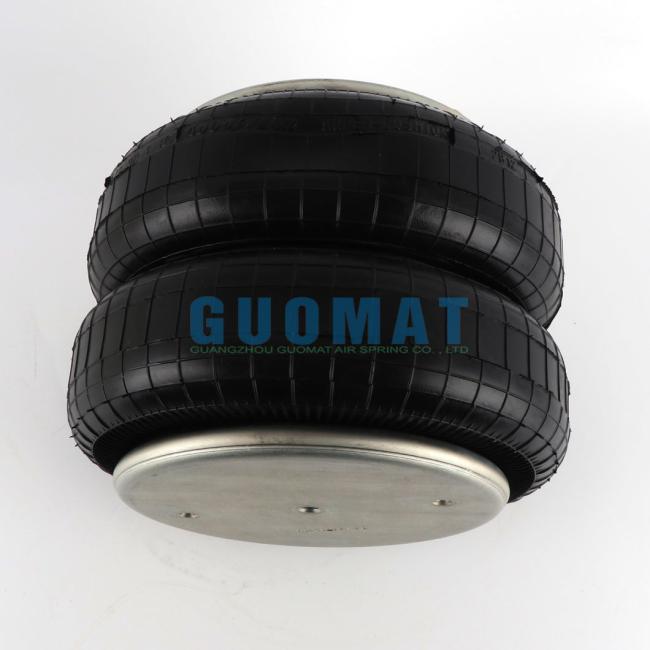

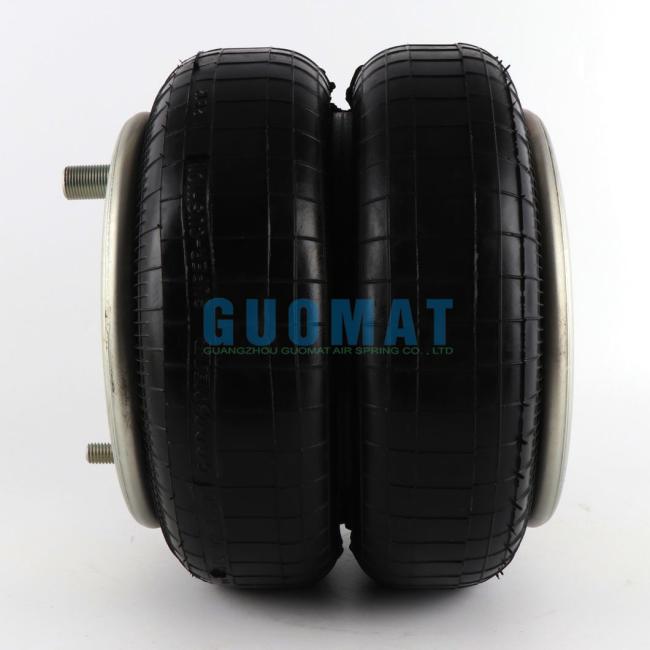

Pictures of Details

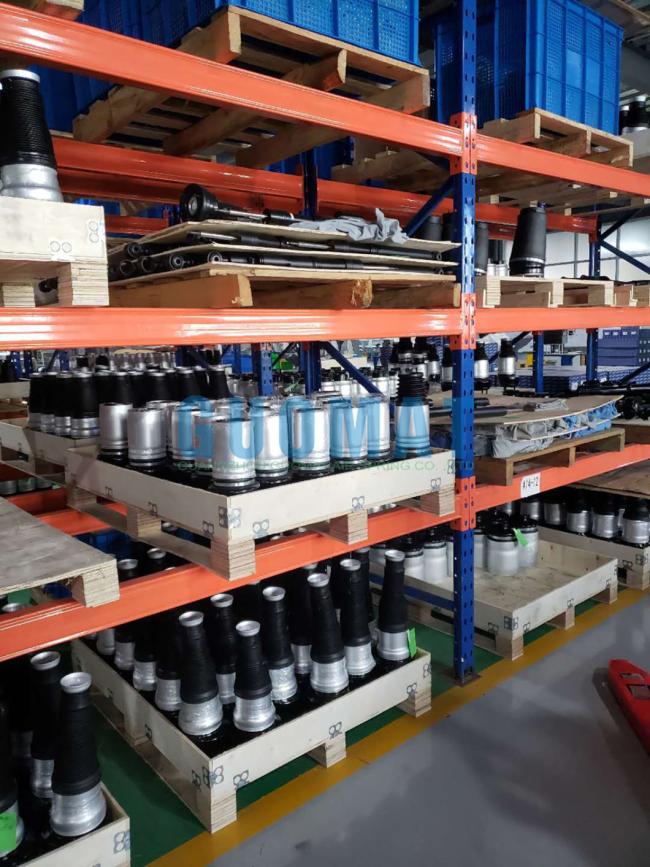

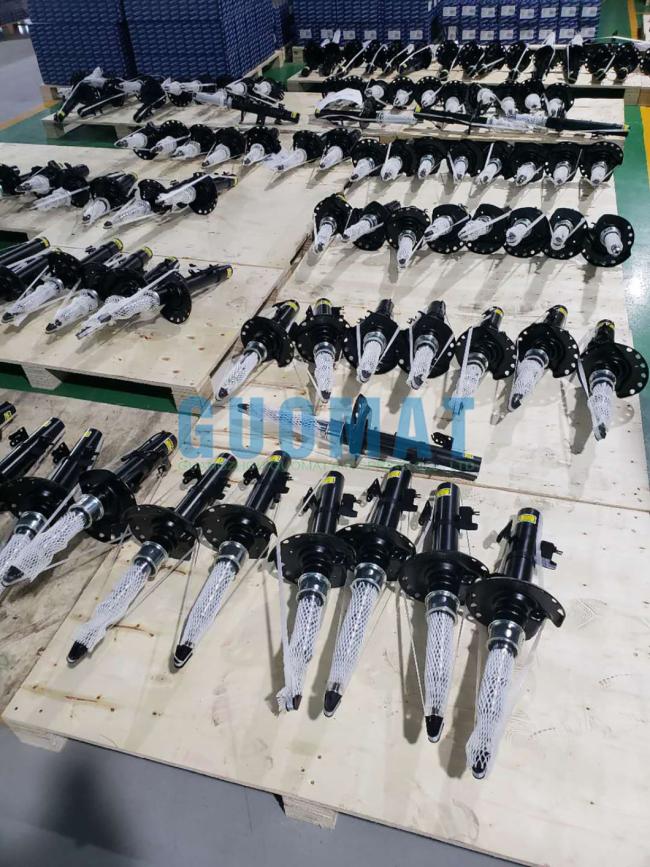

Warehouse Pictures
